High-precision small-diameter internal grooving

SIGC

Internal grooving

Width: 1 ~ 3 mm
φ8 ~

Brochure 782.6 KB

Features
Lineup

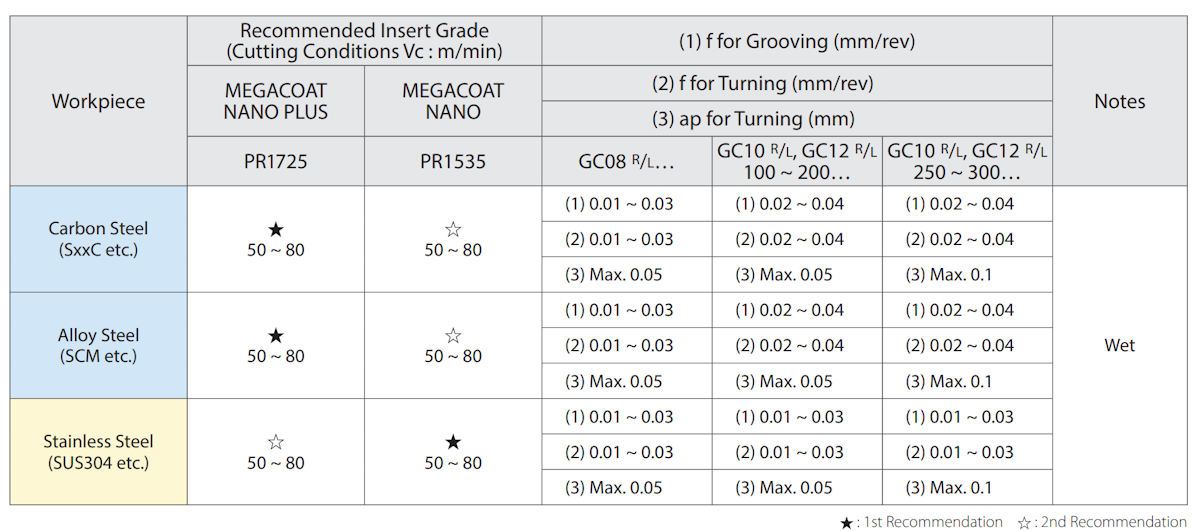

Recommended Cutting Conditions
Brochure

General info.

Features

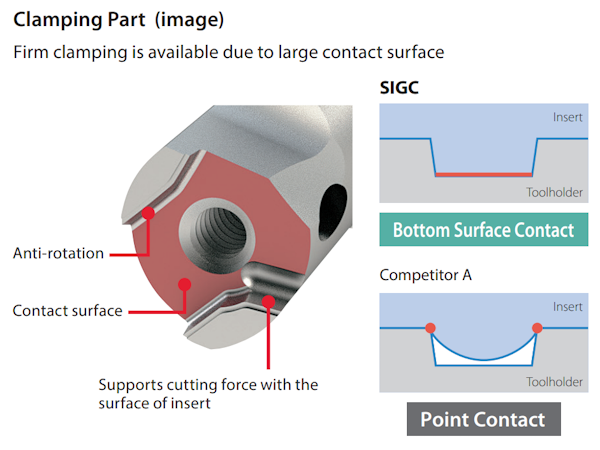

A rigid clamping structure ensures high-precision machining.

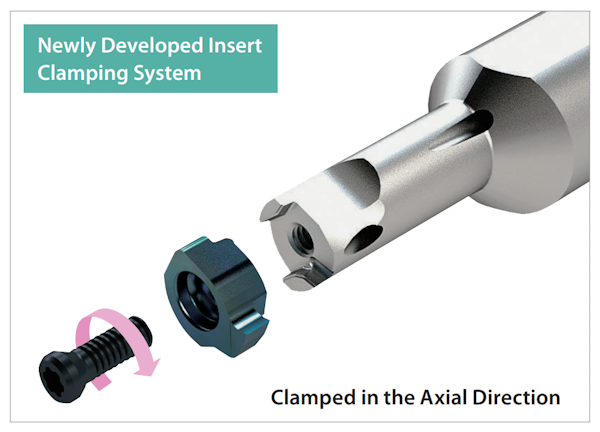

Attach the insert from the holder's axial direction for a strong face contact at the insert bottom surface.
Stable clamping ensures high-precision machining.

Excellent chip evacuation

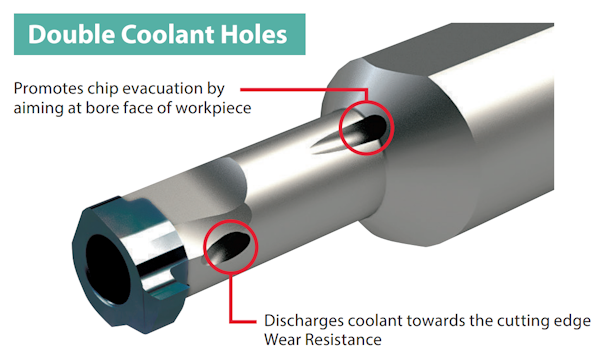

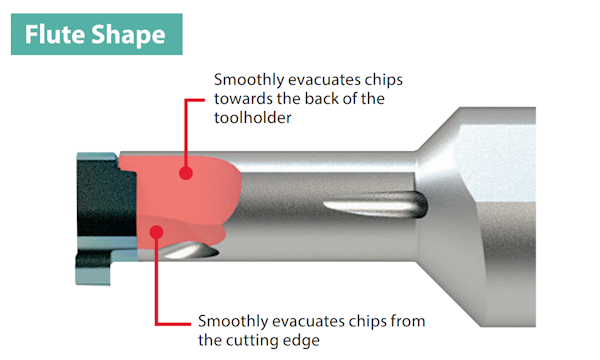

The unique twin coolant and flute geometry reduces chip problems during small internal diameter grooving, where chip evacuation is difficult. This reduces chip jamming and ensures stable machining.

Lineup

Minimum cutting diameter: φ8 ~
Groove width: 1 ~ 3 mm
A lineup of steel and carbide toolholders

Brochure

SIGC782.6 KB
