Solid Ball Nose Endmill for machining hardened material (micro machining)

2KMB

Shouldering
Pocket milling

φ0.1 ~ φ6

Brochure 866.1 KB

Features
Case Study
Brochure

General info.

Features

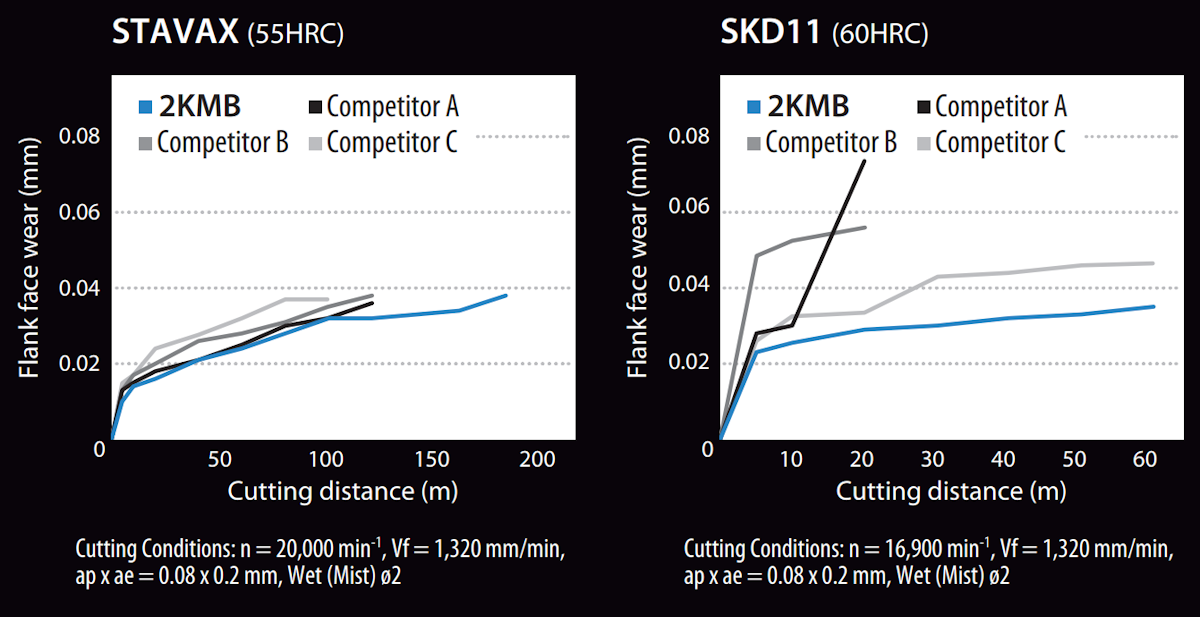

Supports up to 70HRC. Long tool life in various workpiece material

Compatible with a variety of hardened material (up to 70HRC), including alloy tool steel, stainless steel, and high-speed steel.
Realizing long tool life for Precision Parts and mold machining

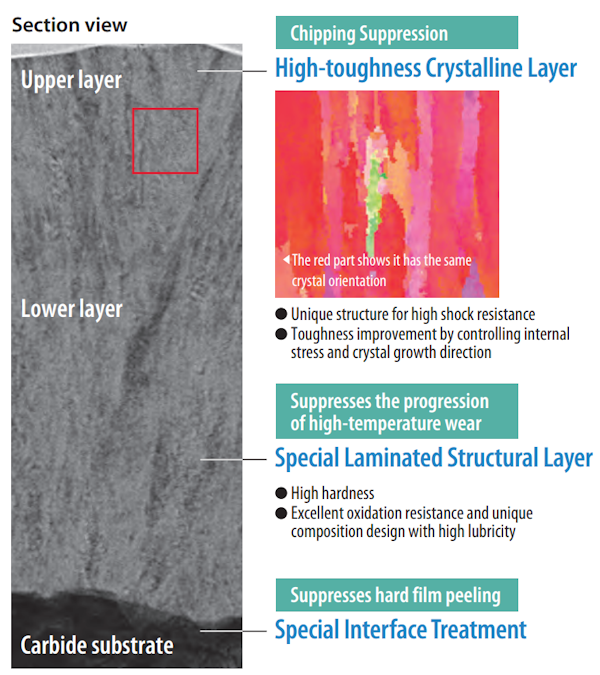

Long tool life with our unique MEGACOAT HARD EX coating

Kyocera's advanced technology achieves a unique two-layer structure.　 Achieves a high-level balance between the conflicting properties of chipping and wear resistance.

Unique geometry enables stable, high-quality machining of hardened material

Case Study

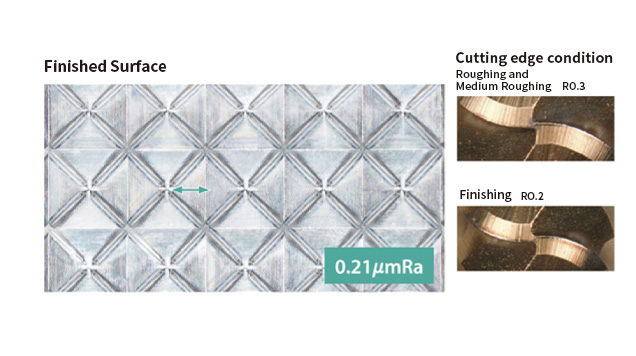

Automotive Optical Component Molds STAVAX

Delivers excellent performance in the machining of STAVAX (52 HRC) 8mm x 4mm die and mold parts. Surface finish and cutting edge condition were also good. Total machining time was 3 hours 20 minutes.
(Customer evaluation)

Brochure

2KMB866.1KB
