For Swiss machine

Molded Sharp edge chipbreaker Series

External Turning

Brochure 2.6 MB

Features
Lineup
Brochure

General info.

Features

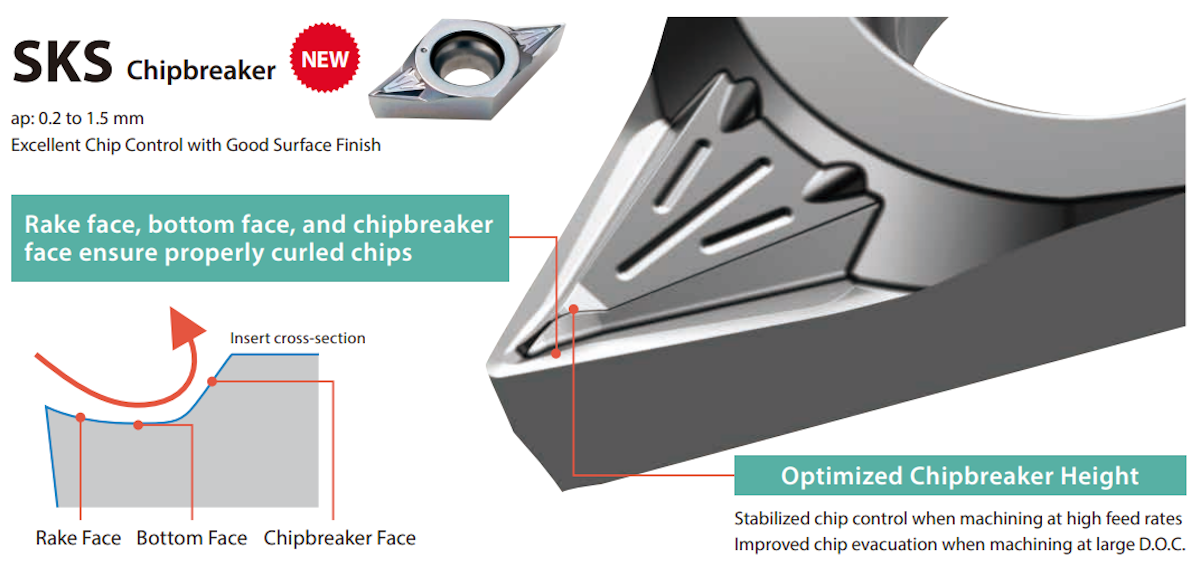

SKS chipbreaker, primary recommendation for finishing

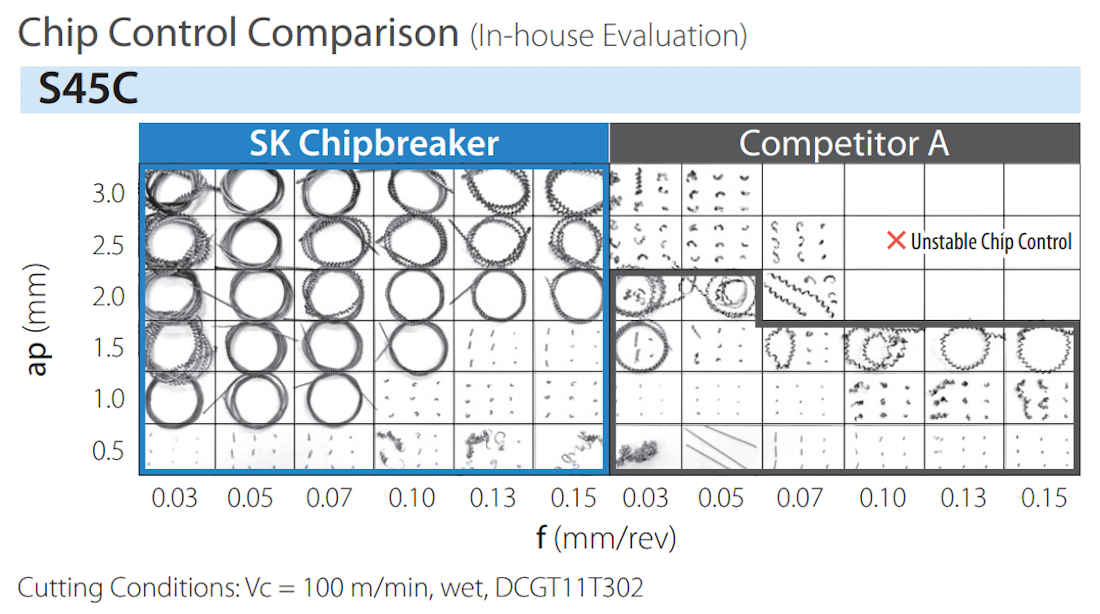

SK chipbreaker, primary recommendation for light finishing

The lineup also includes complementary chipbreakers, catering to a wide range of applications.

Achieves excellent performance in vibration cutting.

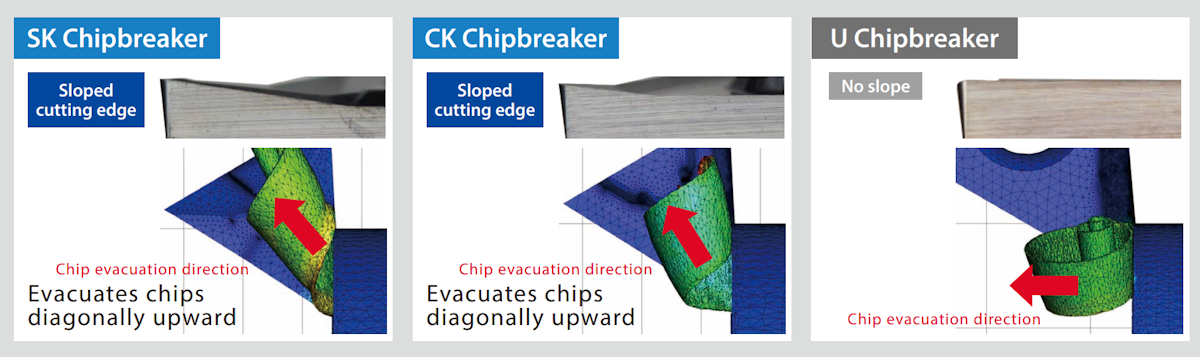

The SK/CK chipbreakers' inclined cutting edge directs chips upward, suppressing scratches on the workpiece caused by chip entanglement. In combination with the PVD grade "PR1535," which features a highly tough substrate that withstands high cutting loads during vibration cutting, high precision, high quality, and high productivity are achieved.

Lineup

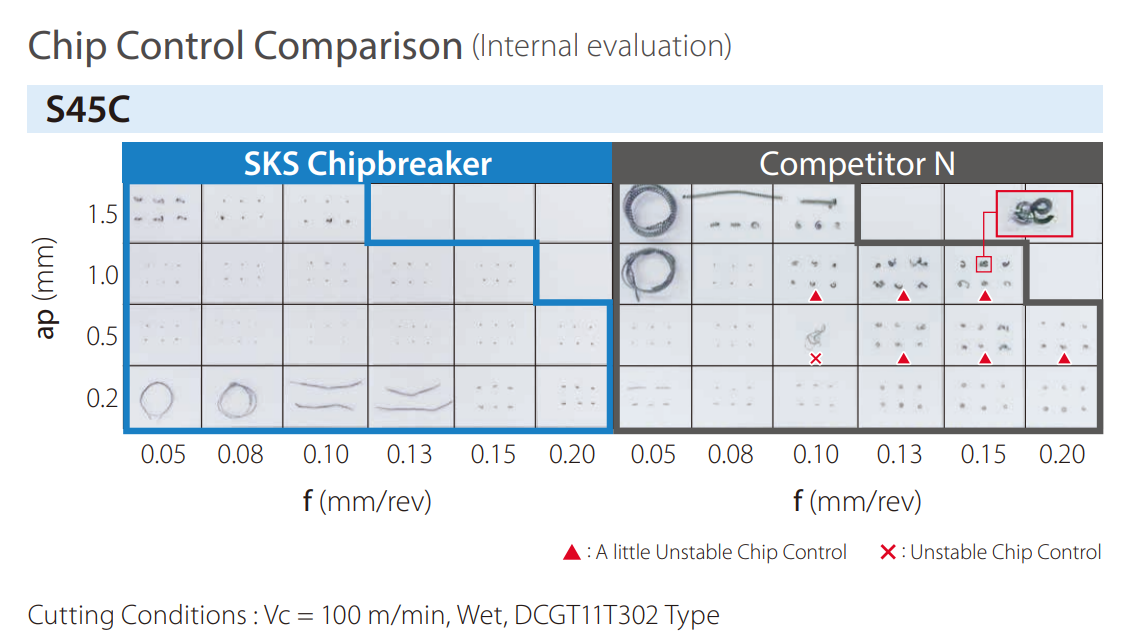

SKS chipreaker: Primary Recommendation for finishing

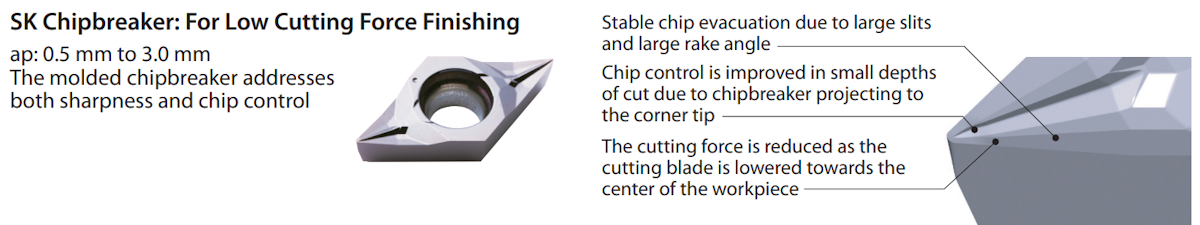

SK chipbreaker: Primary Recommendation for Medium finishing / Primary Recommendation for Vibration Cutting
CK chipbreaker: Low Cutting Force Type, General Purpose
GQ chipbreaker: Covers low to high depth of cut
GF chipreaker: For Finishing
CF chipbreaker: Compatible with minute depths of cut.

Brochure

SK/SKS Breaker Description Table2.6 MB

Molded sharp edge chopbreaker Features3.4MB

Description Search (EASY TOOL GUIDE)

SKS chipbreaker/SK chipbreaker

View other chipbreakers

Positive type for aluminum finishing

AP chipbreaker

External Turning
Internal turning

PCD insert with Molded chipbreaker

APD chipbreaker

External Turning
Internal turning

CBN for hardened material

H-series chipbreaker

External Turning
Internal turning

HH/HL/HD
KBN05M

View more chipbreakers
