Helical endmill for machining difficult to cut material

ME90

Shouldering
Slotting (milling)

φ50 ~ φ80

Brochure 2.6 MB

Features
Lineup

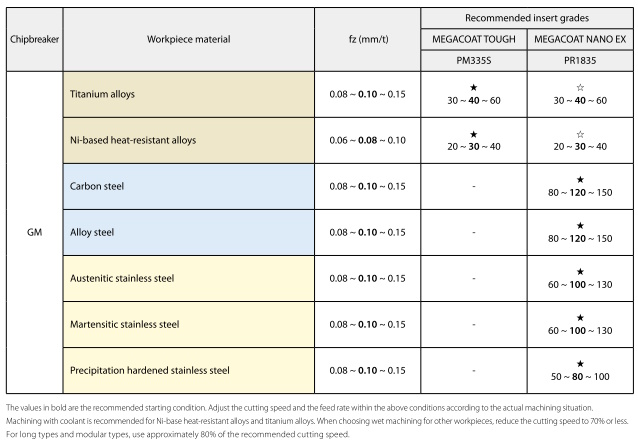

Recommended Cutting Conditions
Brochure

Machining video

Features

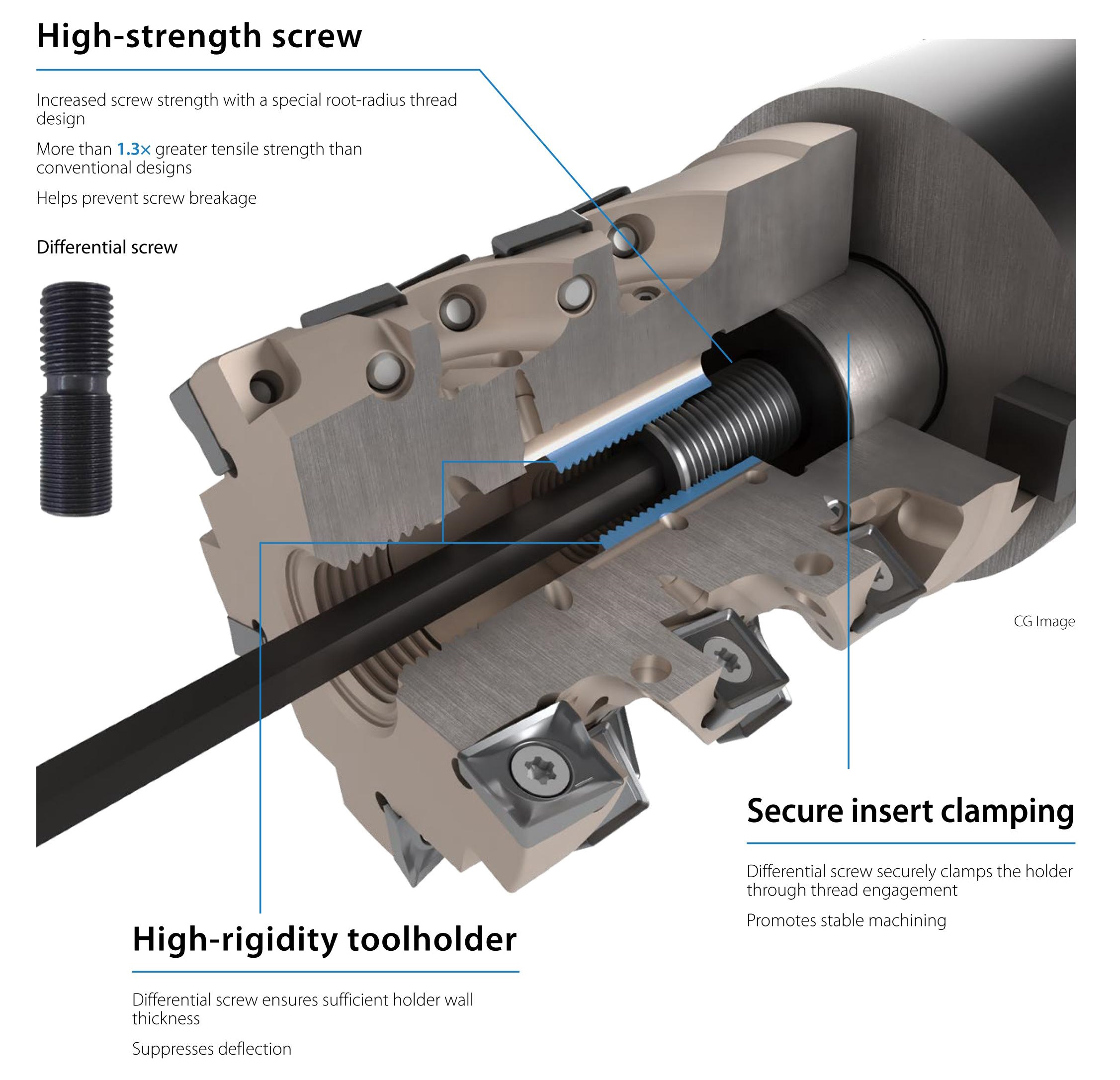

High rigidity holder structure enables stable roughing.

The unique double-screw fastening system and increased holder thickness improve holder rigidity.
Even in machining with long overhangs, it suppresses deflection and is highly resistant to chatter.

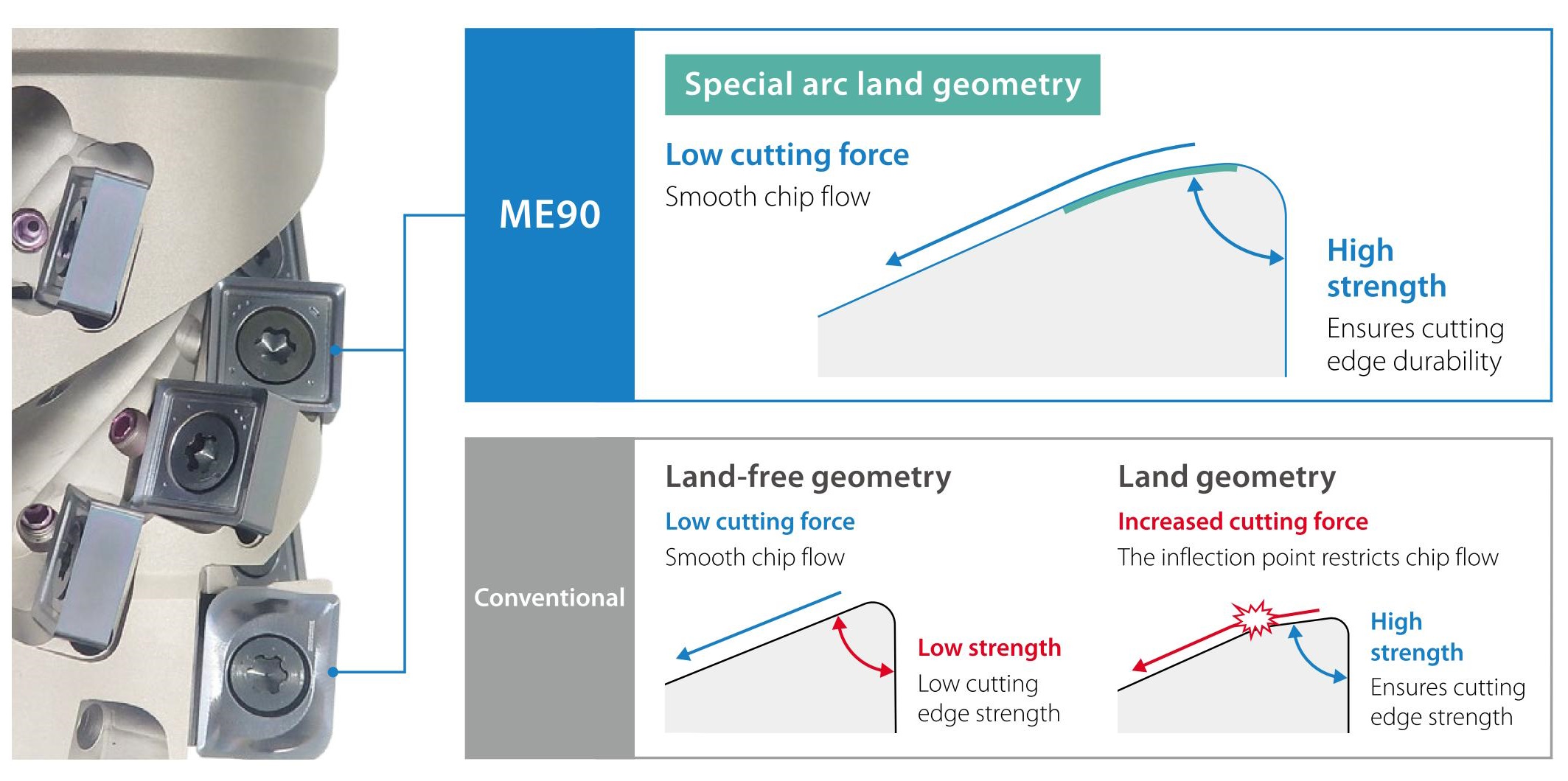

Special Arc line land geometry for long tool life

A uniquely developed special Arc line shaped land geometry that balances Low Cutting Force with cutting edge strength.

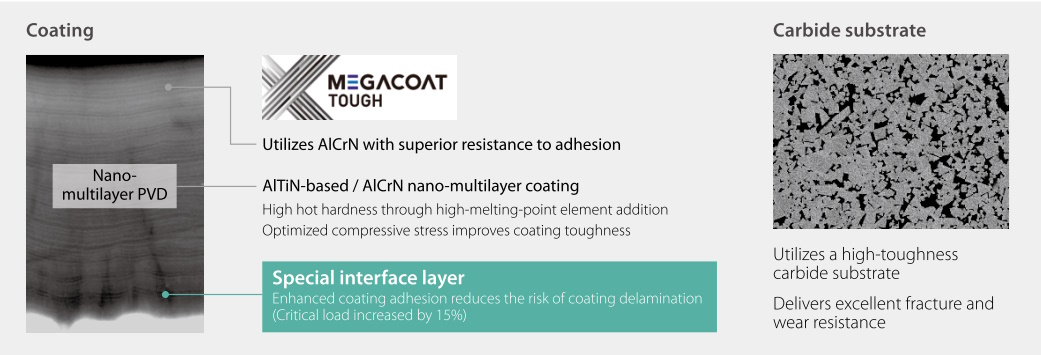

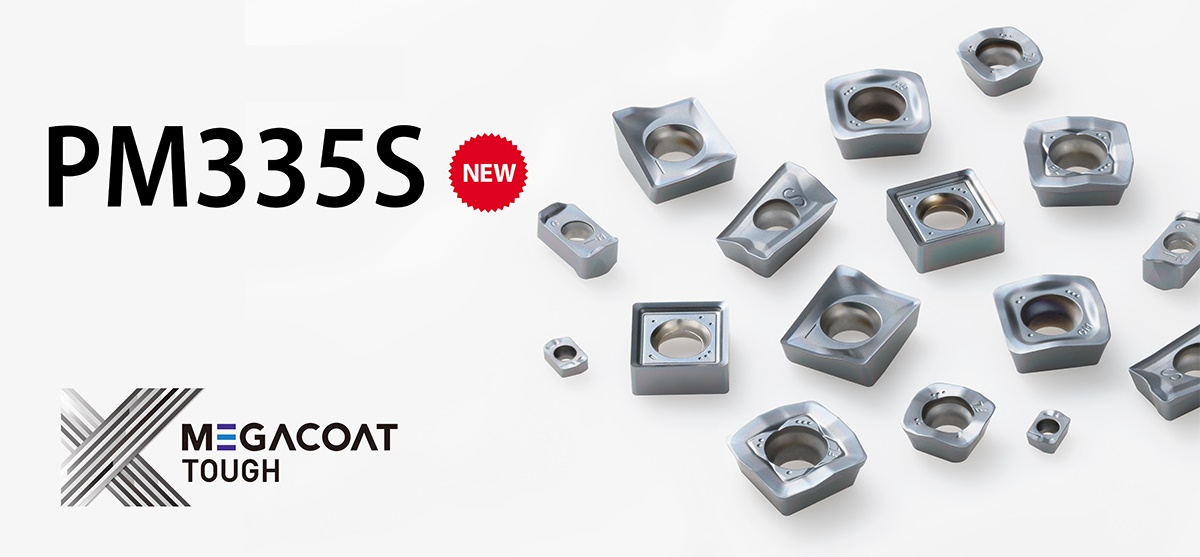

Stable machining with the new PM335S insert grade for machining difficult to cut material

High adhesion and a toughness film improve Fracture resistance. Maintains high strength even at high cutting temperatures.
By combining it with a high-toughness carbide substrate, long tool life and stable machining of titanium alloys are achieved.

PM335S_banner

me90_03

Lineup

Shell mill
Exchangeable head type (Base unit + front piece)

Brochure

ME902.6 MB

Description Search (EASY TOOL GUIDE)

ME90

insert

View other milling tools (indexable)

High-efficiency slot mill

MG90B

Slotting (milling)

Rechargeable Screwdriver for inserts replacement

DTD500/DTD750

DTD500: Maximum electric torque 1N･m (when tightening M5)
DTD750: Maximum electric torque 1.5N･m (when tightening M6)

Super fine pitch cutter for aluminum machining

MD90

Facing
Shouldering

φ40 ~ φ125

Next-generation PVD coating for milling

PR18 Series

View more milling tools (indexable)
