MG90B
- Slotting (milling)
Features
Economical with its 6-corner design. The unique insert with superior cutting performance ensures stable machining.
A multi-corner design with 6 corners. High economic efficiency reduces running costs.
Staggered tooth type holder with inserts attached to both sides.

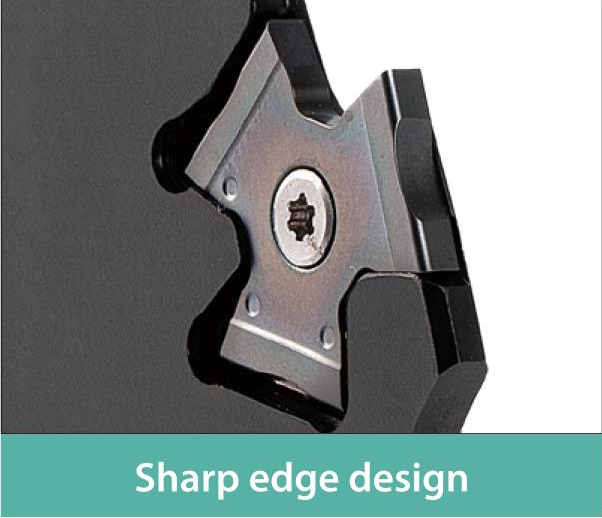

The insert Cutting edge shape for Low Cutting Force
Reduced spindle load enables smooth and stable machining.

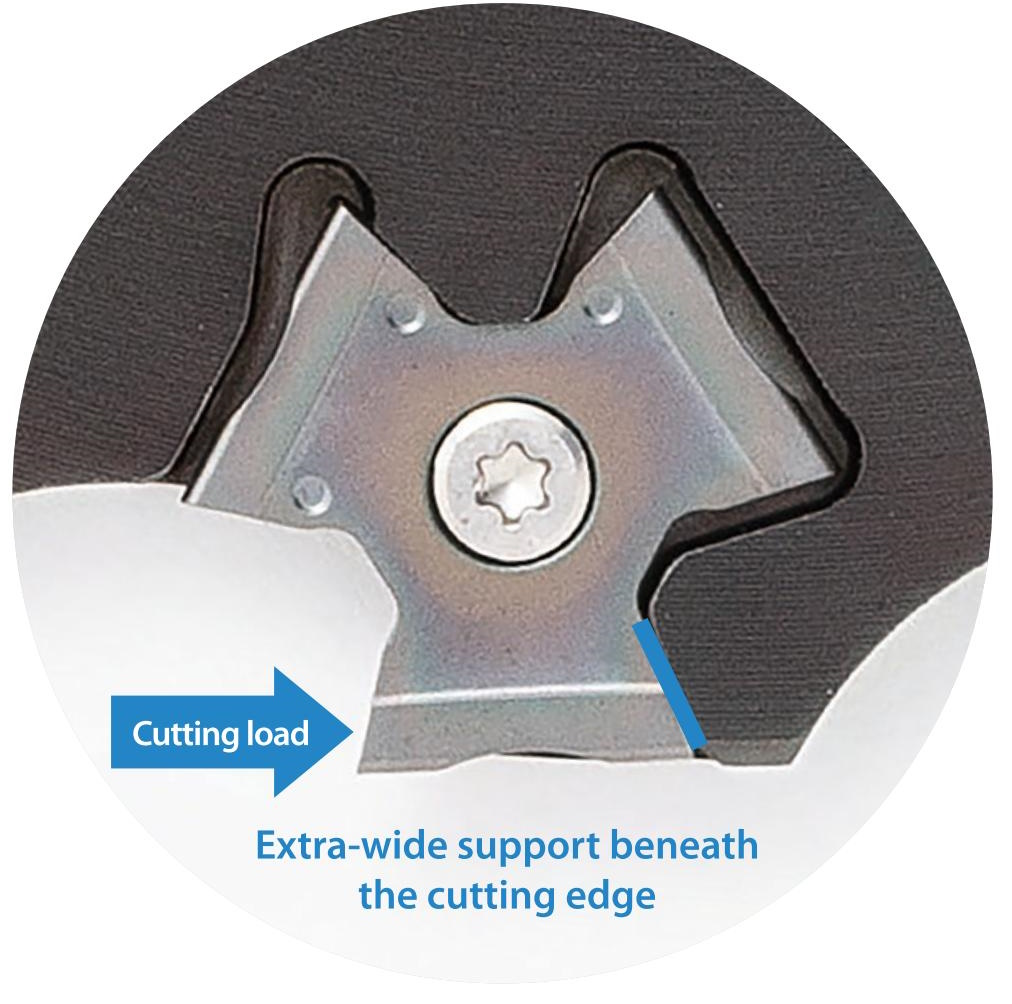

Securely fixes the insert, enabling high-efficiency and stable machining.
The wide restraining surface directly beneath the cutting edge reliably supports the cutting load. This suppresses minute movement of the insert and contributes to the stabilization of cutting diameter and groove width.

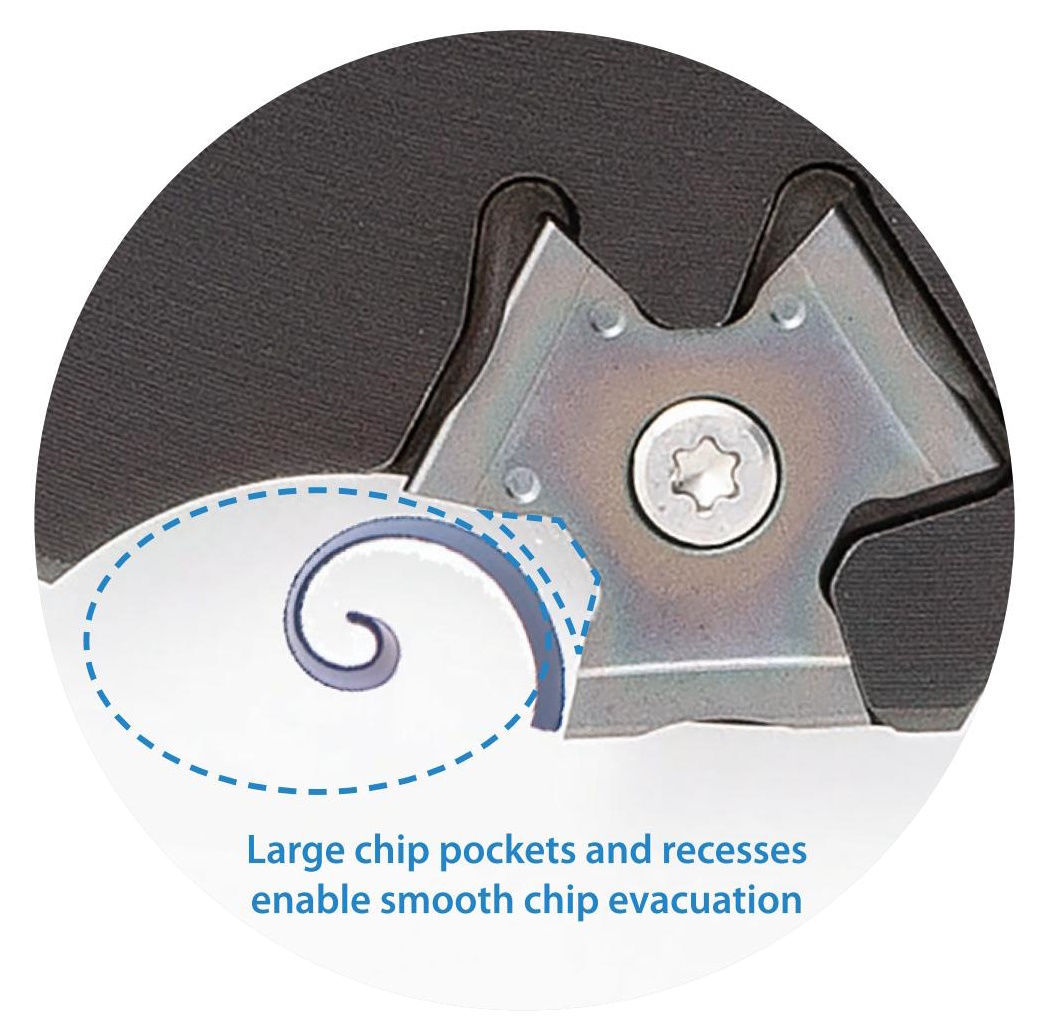

Unique large chip pocket. Smooth chip evacuation
The wide pockets and recesses allow for smooth and effortless chip processing and evacuation. Chip jamming is suppressed even under high feed conditions, resulting in excellent groove bottom surface quality.
We offer custom-made products to meet a wide range of needs.
In addition to standard lineup, we also offer special specifications for blade width, cutting diameter, and corner specifications.

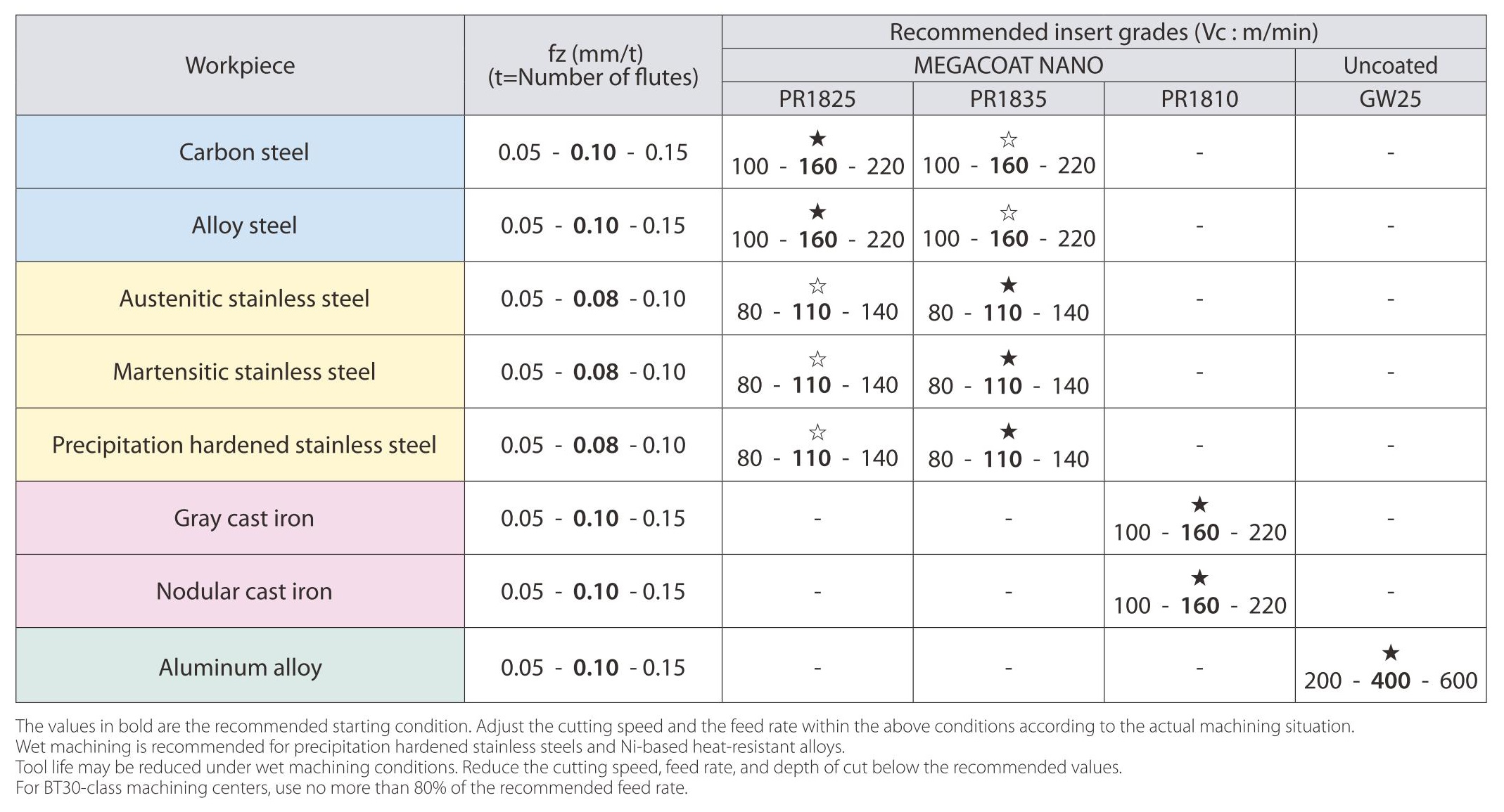

Recommended cutting conditions
