High-efficiency roughing endmill for difficult to cut material

4/5/6RFH

Shouldering
Slotting (milling)

φ6 ~ φ20
Radius

Brochure 4.3 MB

Features
Case Study
Brochure

General info.

Features

Multi-flute design achieves highly efficient machining

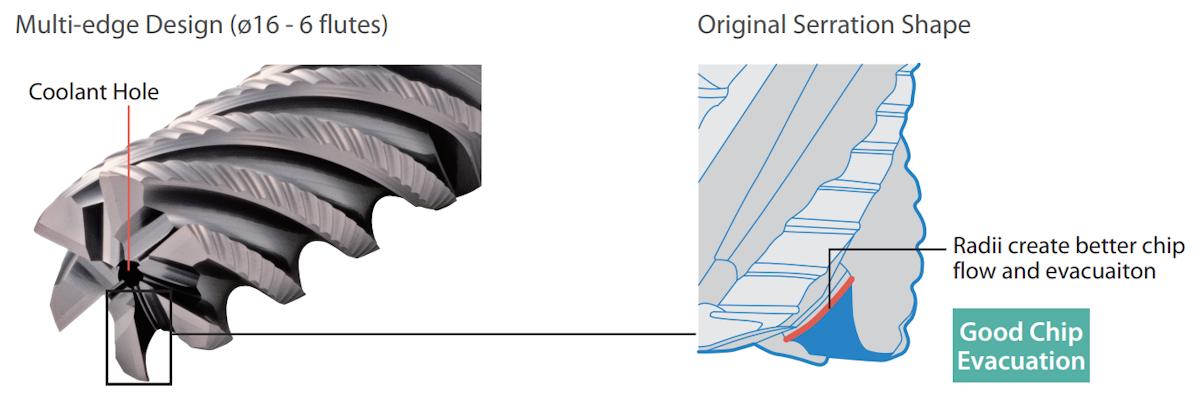

Multi-flute design with coolant holes. Unique gash geometry improves chip evacuation.

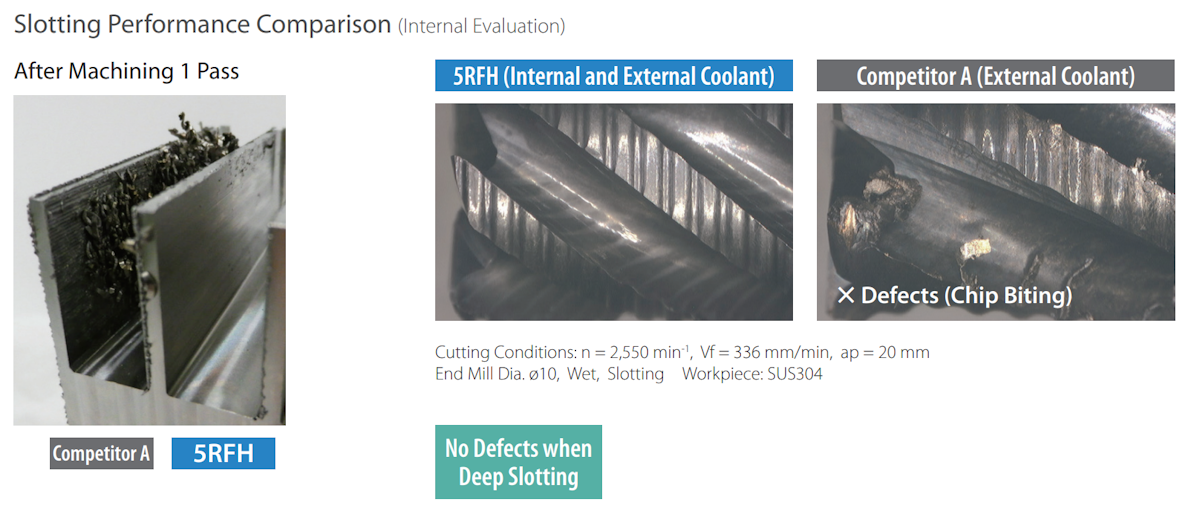

Achieves high efficiency in Slotting. 2D (ap = 2 × Dc) deep slotting is possible in stainless steel and titanium alloys.

Strong resistance to fracture

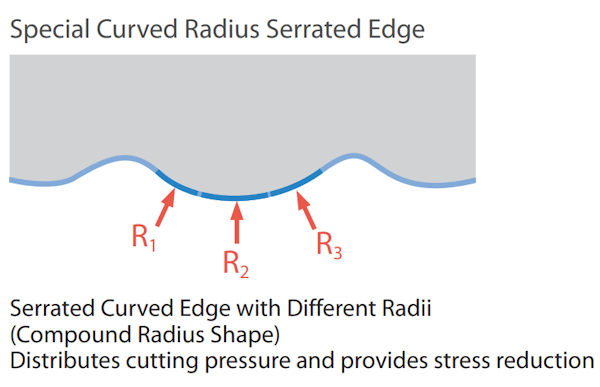

A unique R-shaped wavy cutting edge suppresses stress concentration and fracturing, enabling stable machining.

Case Study

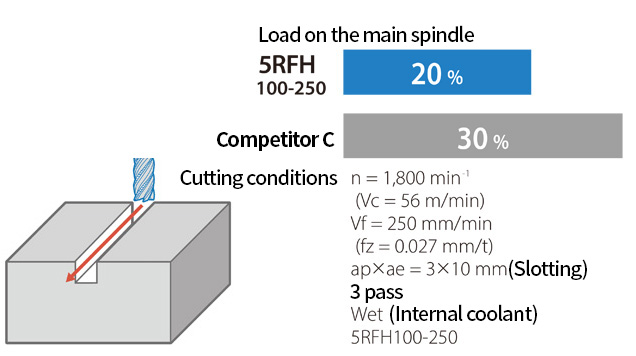

Test piece SUS304

5RFH reduced spindle load by 10%, resulting in quieter cutting noise, less machine vibration, and a better surface finish.
(Customer evaluation)

Brochure

4/5/6RFH4.3 MB
