Interchangeable head boring bar with built-in anti-vibration mechanism

KAV Series

Internal turning

shank diameter: φ16 ~ φ40

Brochure 2.7 MB

Features
Case Study
Lineup
Brochure

General info.

Machining video

Installation Guide Video

Features

Supports up to L/D=10, A unique anti-vibration mechanism provides excellent vibration resistance.

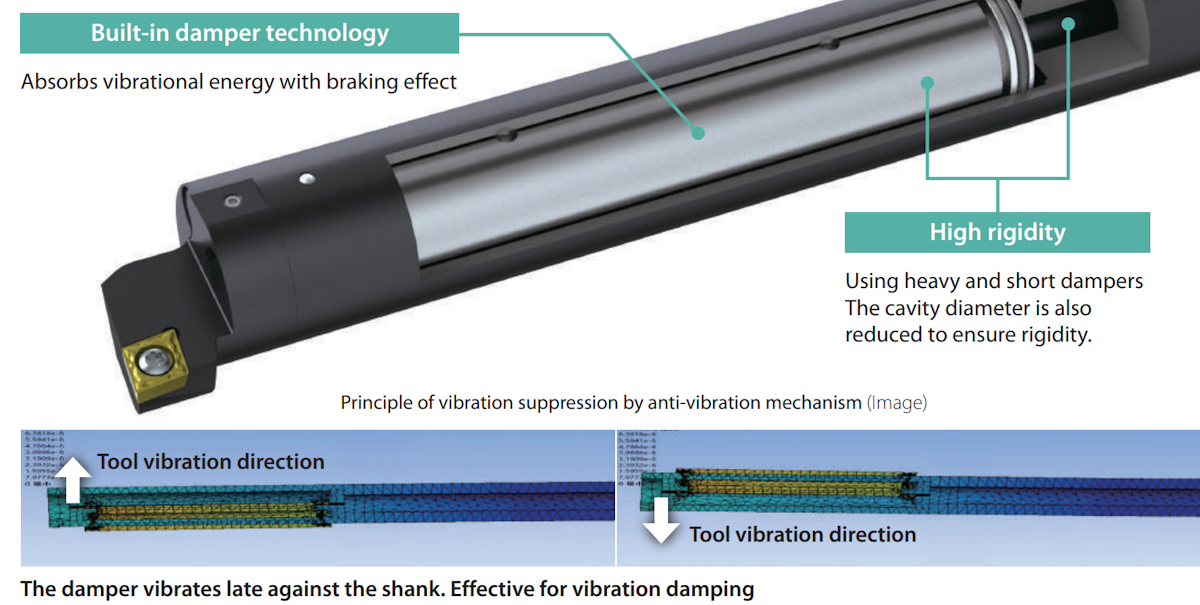

Incorporates a unique anti-vibration mechanism to ensure high rigidity. High damping performance with damper.

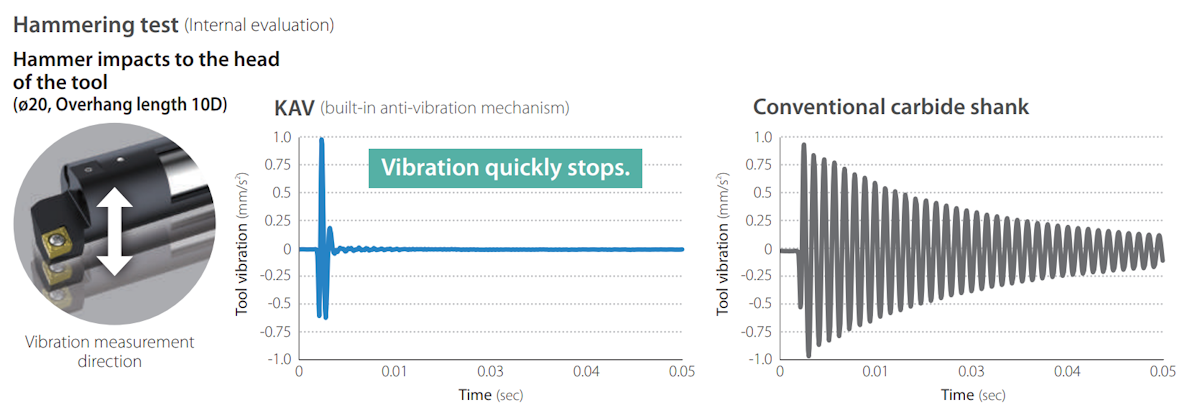

Delivers superior anti-vibration performance compared to conventional carbide shanks, handling up to L/D=10.

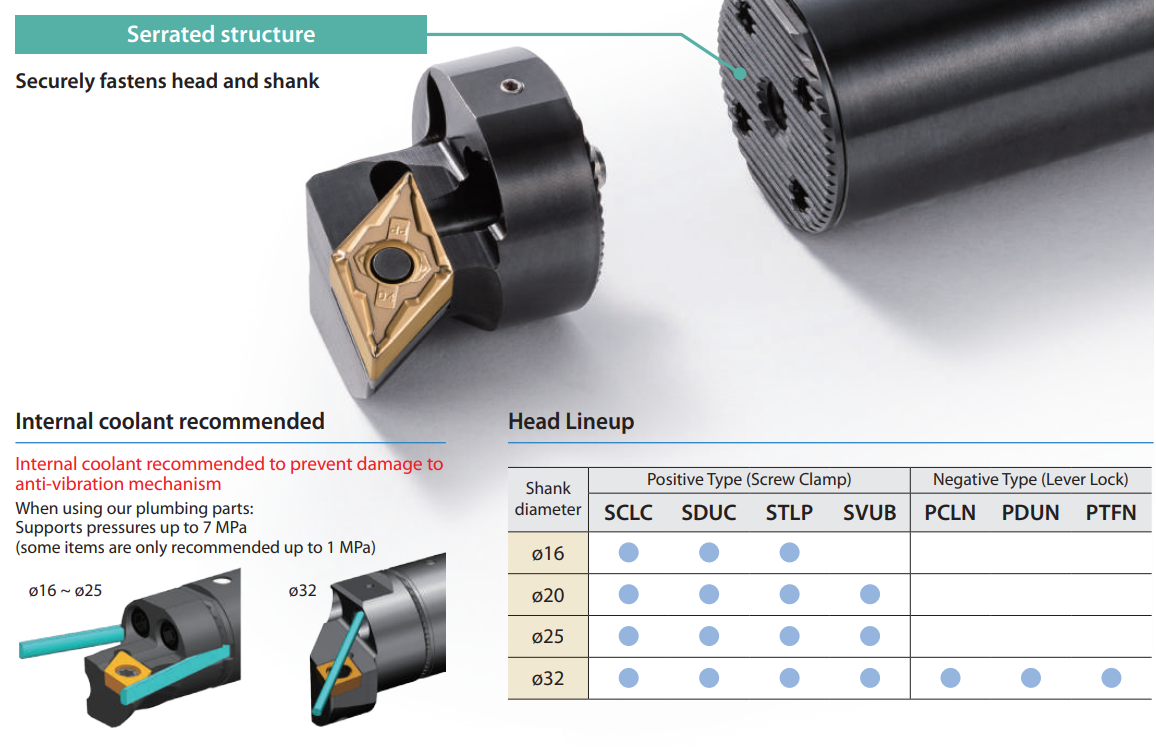

Handles a wide variety of internal machining applications with interchangeable heads.

Easy cutting edge adjustment with dedicated sleeve

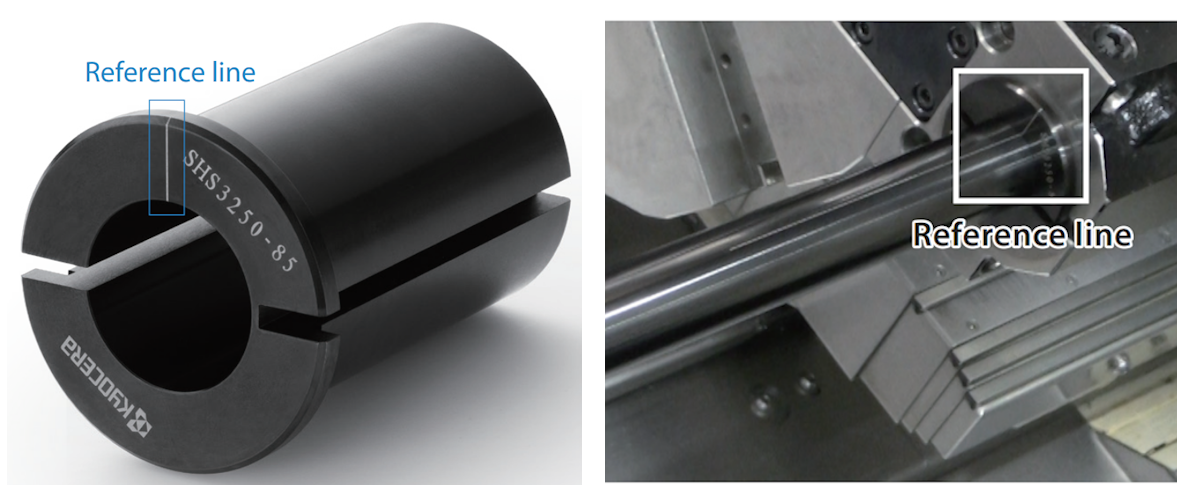

The KAV-specific sleeve (E-Sleeve) features a slitted structure with a printed reference line.
Easily adjust the cutting edge position by simply aligning the reference lines on the shank and sleeve, achieving reduced setup time.

Case Study

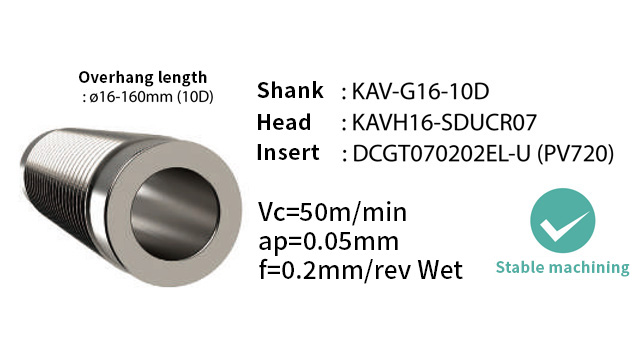

Machine parts (worm gear) S45C

(User evaluation)

Automotive parts (Differential case) FCD700

(User evaluation)

Lineup

shank diameter: φ16 ~ φ40

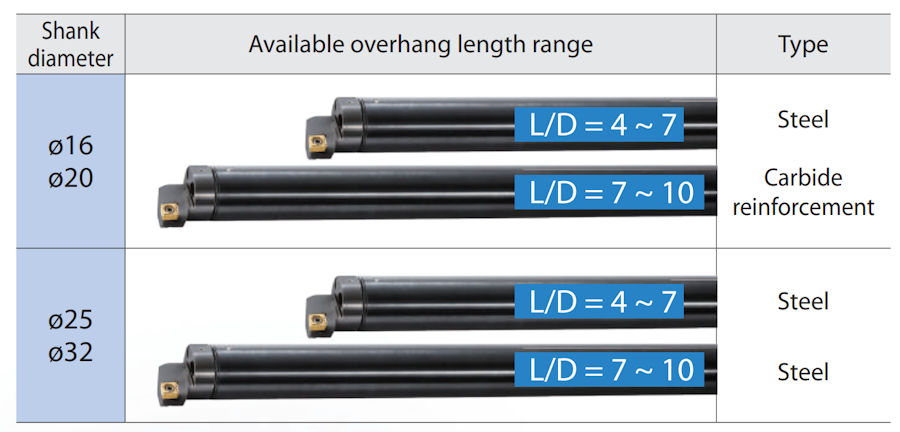

Two types are available: L/D = 7 and L/D = 10

Brochure

KAV Series2.7 MB

Description Search (EASY TOOL GUIDE)

KAV
