25°point angle insert for profiling

ZBMT series

External Turning
Internal turning

Shank size: 20/25

Brochure 2.9 MB

Features
Case Study
Lineup

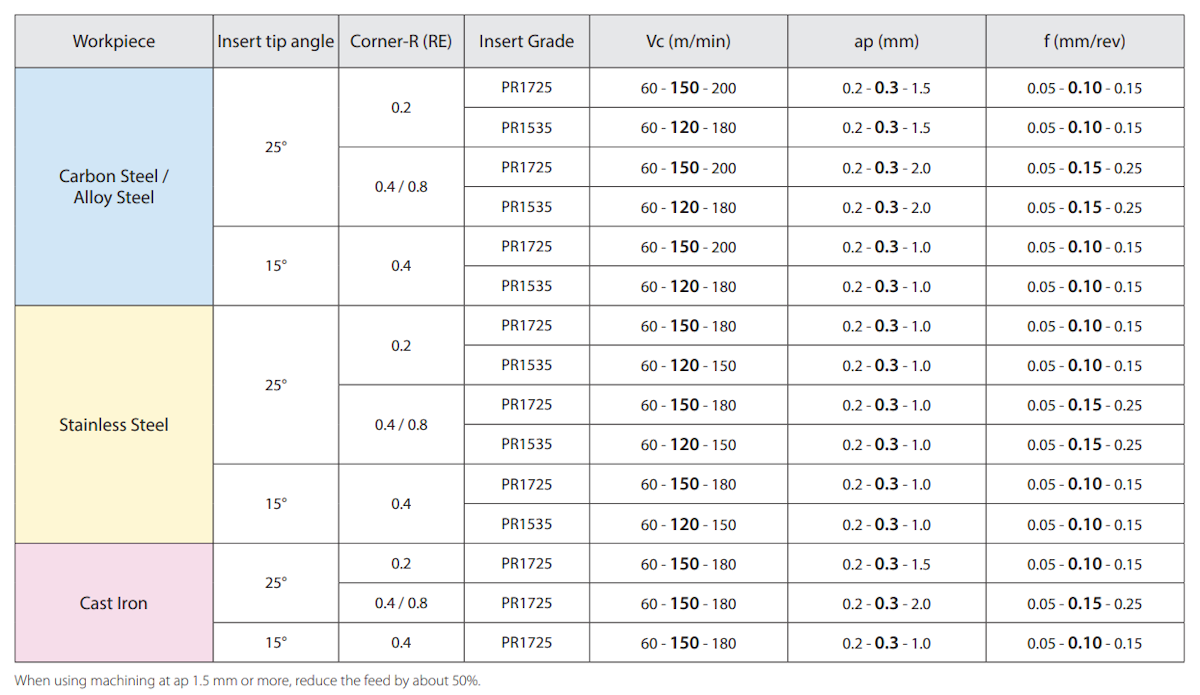

Recommended Cutting Conditions
Brochure

General info.

Features

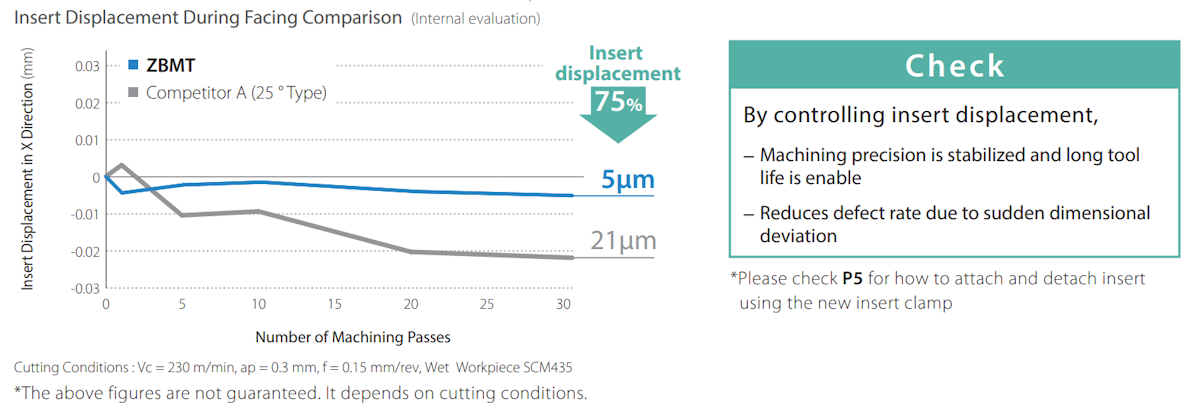

A unique clamping structure improves dimensional accuracy. Delivers high-precision and stable machining thanks to its high resistance to insert displacement.

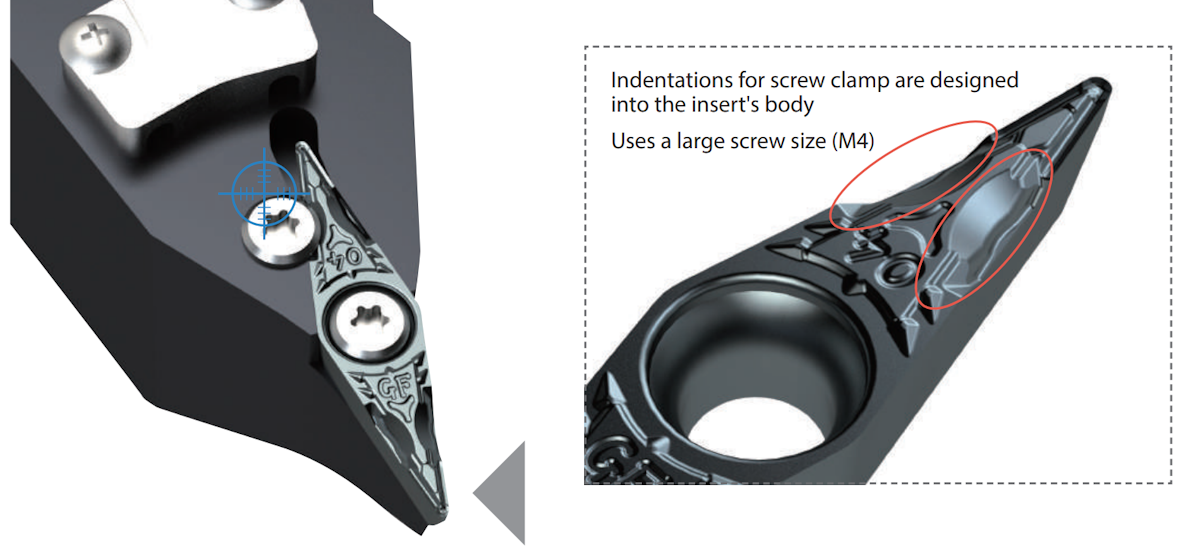

A unique structure that secures the insert at two points. Reliable even for inserts with small point angle that are difficult to secure.

Delivers high-quality and stable machining in a wide range of applications.

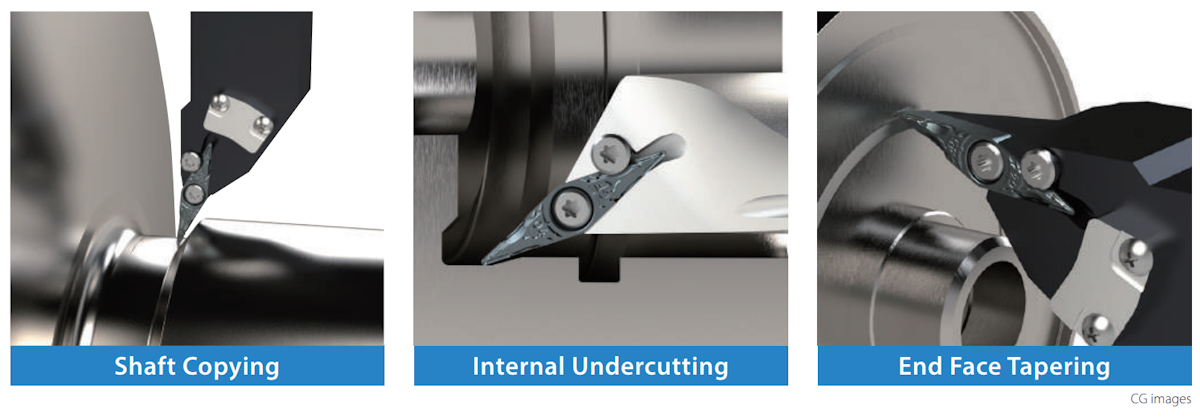

A diverse lineup of external turning holders and boring bar. Suitable for a wide range of applications, including copying, undercutting, taper and V-grooving.

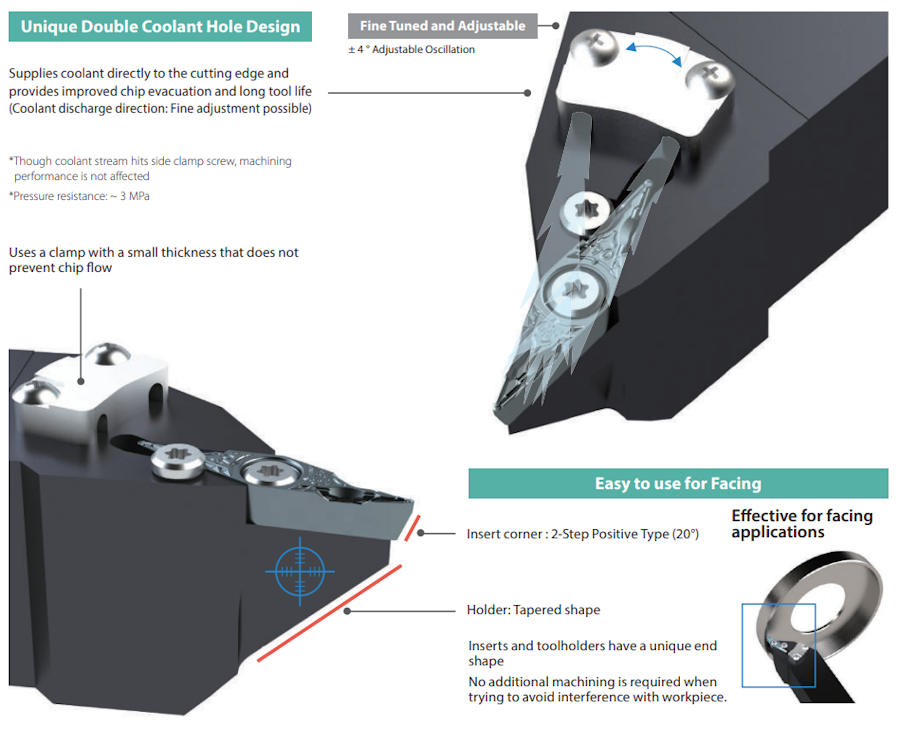

A meticulously designed toolholder that meets the needs of the shop floor.

Not only boring bar but also external turning holders are compatible with Internal coolant supply

Case Study

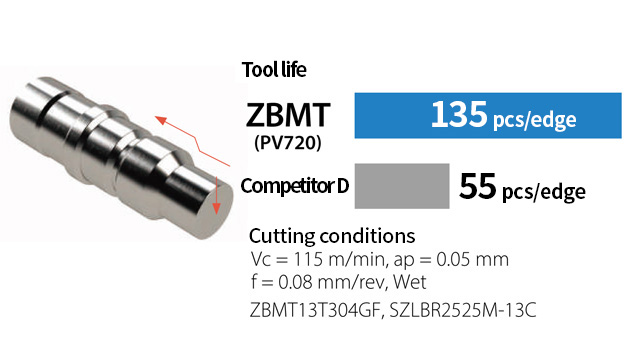

Shaft S45C

ZBMT's side lock mechanism reduces misalignment in the Z direction. Boosts productivity by eliminating the need for dimensional compensation. Excellent surface finish by PV720 (Customer evaluation).

Spacer A2017/A5052/A7075

While competitor's experienced dimensional fluctuations, ZBMT achieved stable machining even with more than 200 pieces. Delivers high dimensional accuracy with H6 tolerance while maintaining excellent cutting edge condition.(Customer evaluation).

Lineup

Insert grade: PVD coating Carbide/ Cermet / PCD
15° point angle insert is available (Toolholder requires modification. )

Brochure

ZBMT2.9 MB

Description Search (EASY TOOL GUIDE)

ZBMT

View other turning holders

Interchangeable head boring bar with built-in anti-vibration mechanism

KAV Series

Internal turning

shank diameter: φ16 ~ φ40

Direct coolant supply toolholder for automatic lathe

JCTM Series

External Turning
External Grooving
Cut off

Shank size: □12 ~ □25

External turning toolholder

Double clamp type External turning toolholder

External Turning

Shank size: 20/25

Boring bars

Double clamp type boring bar

Internal turning

Shank diameter: φ25 ~ φ50

View more turning toolholders
