Tangential 90°Endmill with 4-Edge Insert
MA90
General info.
Demo machining video
Tangential endmill MA90 achieves bottom surface roughness of Ra 0.6 μm!
Features
Solving machining challenges. Unique tangential endmill
Tangential type end mill. Large web thickness and high rigidity. Low holder deflection enables excellent surface finish accuracy.
New PR18 series. Achieving significantly longer tool life
The newly developed proprietary coating MEGACOAT NANO EX achieves long tool life. "Double lamination technology" that laminates two types of special nano-layers in multiple layers further improves toughness, achieving both high levels of wear resistance and fracture resistance.
Unique insert geometry achieves high quality and long tool life
Combining high fracture resistance and low cutting force with a unique cutting edge design. Periphery ground for high precision.
Case Study

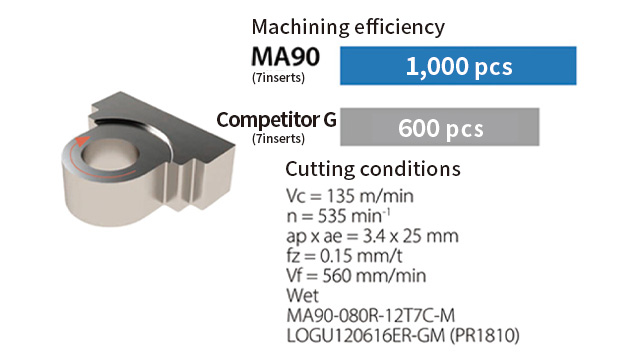

Brake parts FCD500
Achieved 1.6 times longer Tool life when machining cast iron. Maintaining an excellent cutting edge condition, allowing for stable machining.
(Customer evaluation)
(Customer evaluation)

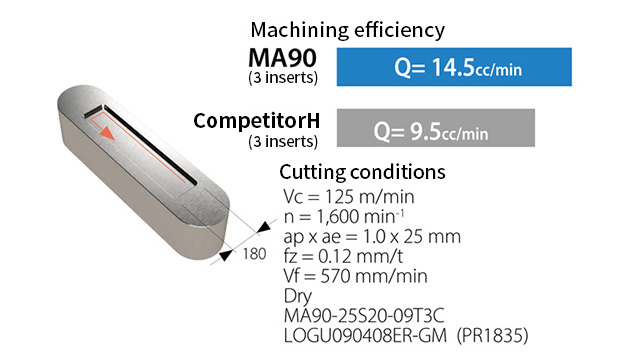

Mold parts Stainless steel
Achieves 1.5 times Machining efficiency compared to competitors' products. Tool life has also improved (3pcs → 4pcs)
(Customer evaluation)
(Customer evaluation)
Lineup
Endmill: φ16 ~ φ50
Face Mill: φ40 ~ φ125
Modular type: φ20 ~ φ32
