Super fine pitch cutter for aluminum machining

MD90

Facing
Shouldering

φ40 ~ φ125

Brochure 2.4 MB

Features
Lineup

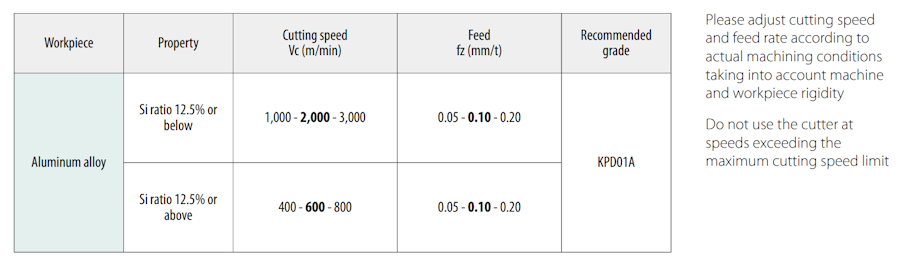

Recommended Cutting Conditions
Brochure

General info.

Machining video

Aluminum machining with a table feed Vf=24,000mm/min!

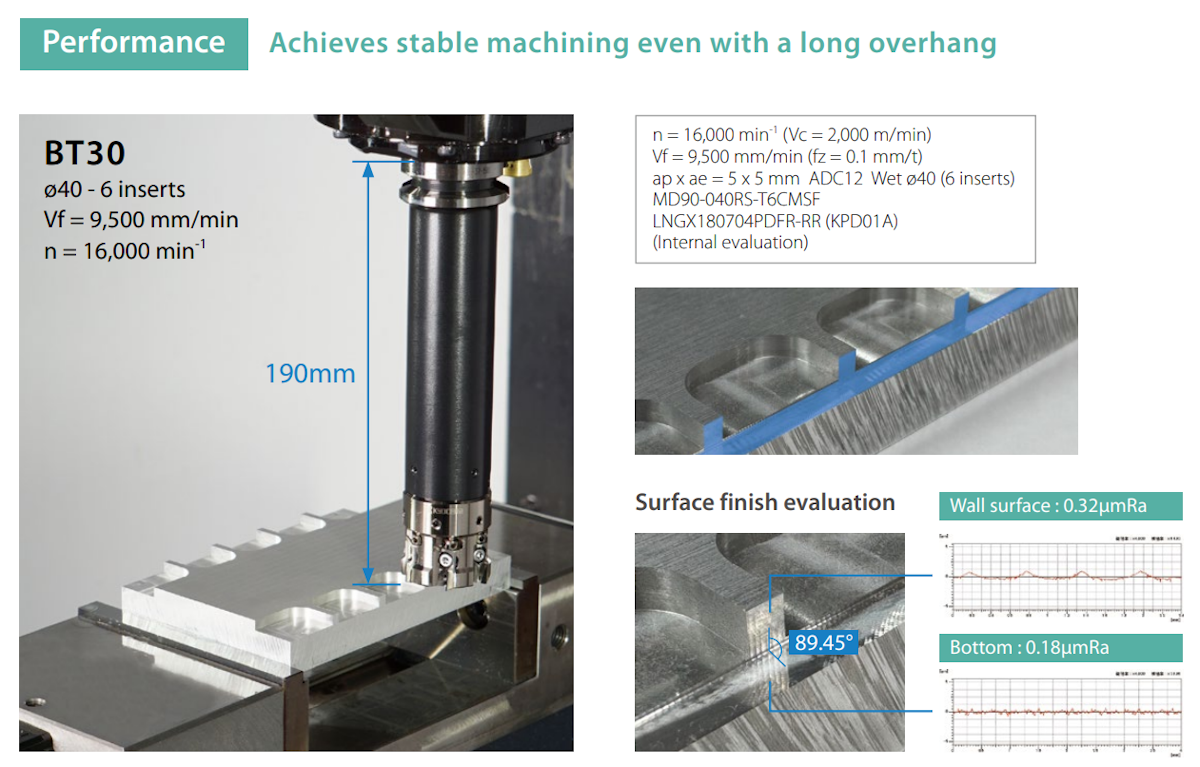

High-efficiency and high-quality machining, even with a BT30 spindle.

Features

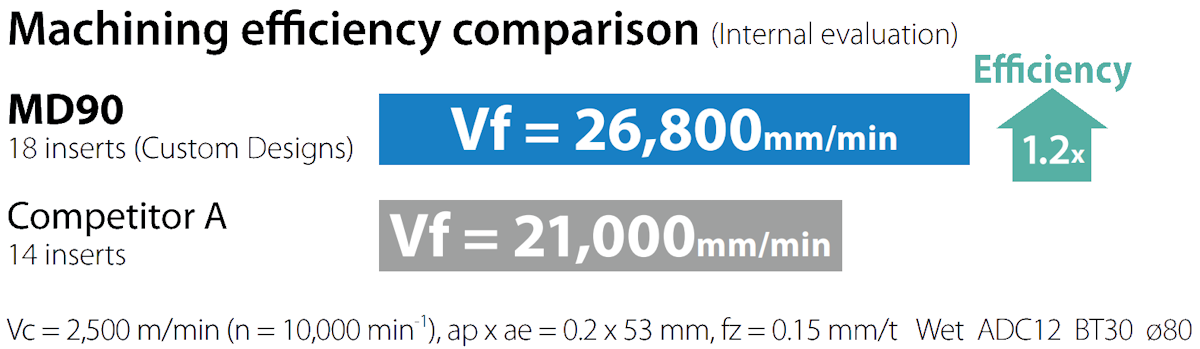

Super fine pitch design enables highly efficient machining of aluminum parts

Our unique super fine pitch design achieves Vf ≧ 24,000 mm/min. Custom solutions for even higher efficiency.
Compatible with BT30, with a total weight of less than 1.5kg even at φ125.

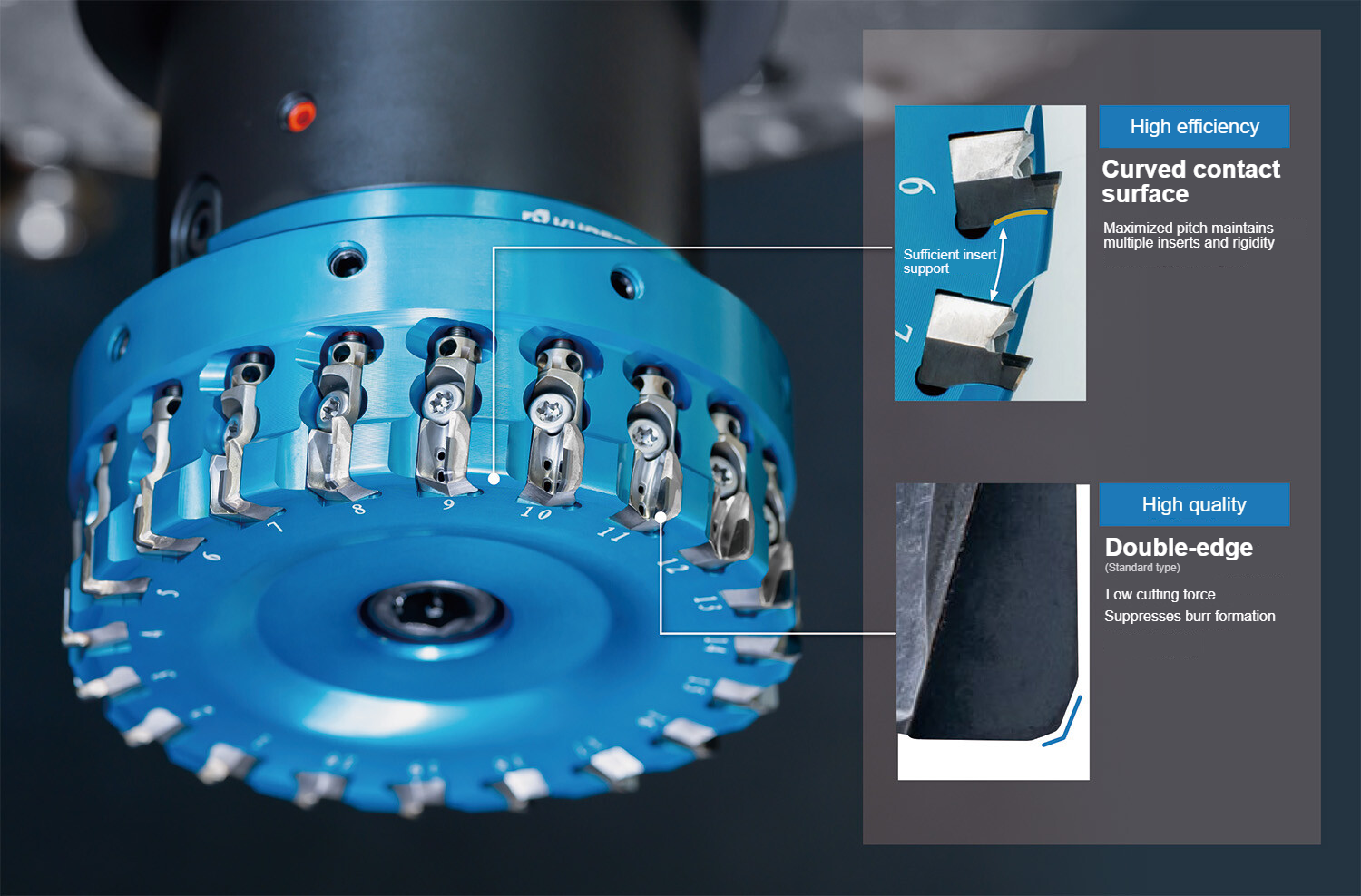

Unique geometry achieves high efficiency and high quality

A unique geometry achieves a super fine pitch design while securing a thick body, enabling high-efficiency and stable machining. Additionally, the standard double-edge insert suppresses burrs for a high-quality finish.

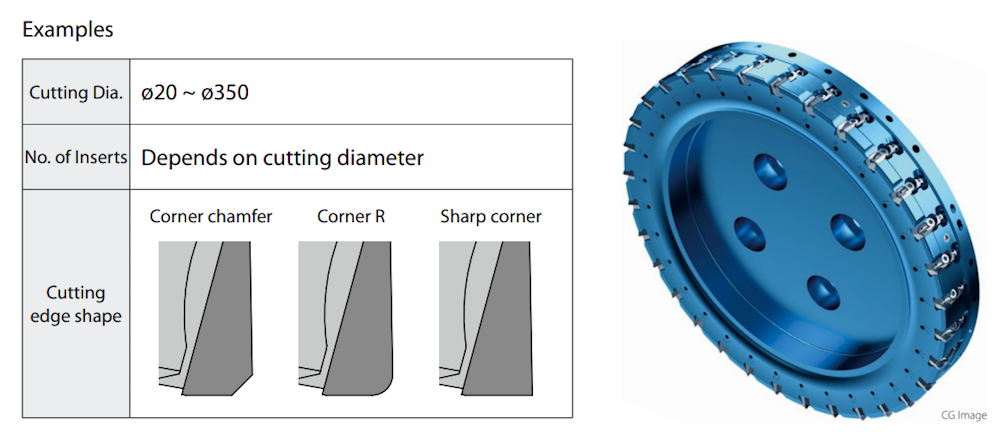

Custom Solutions

Custom solutions for diverse machining needs.
Cutting diameter ranges from φ20 to φ350. Cutting edge shape can also be customized to suit the application.
For details, contact our sales department

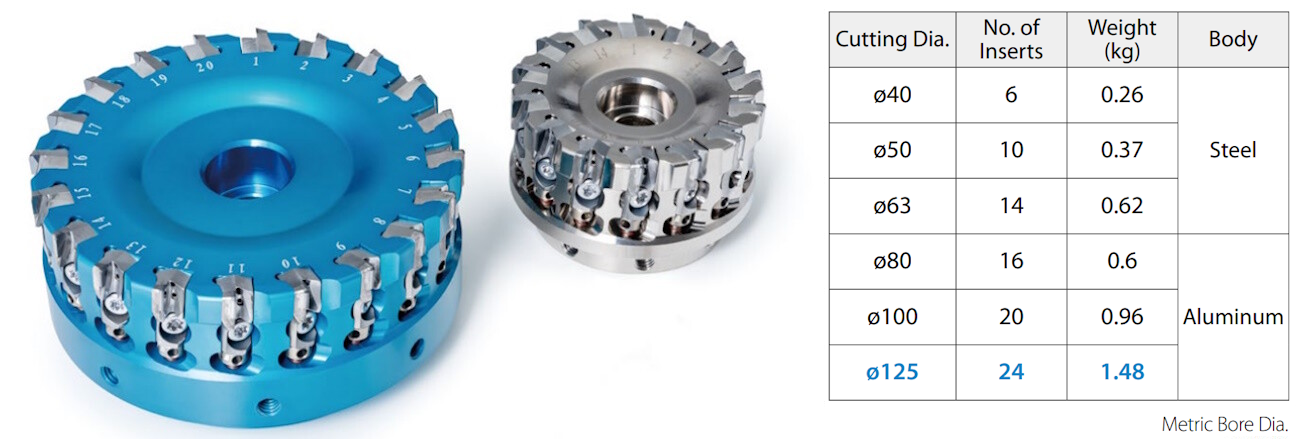

Lineup

φ40 ~ φ125 (standard lineup)
Solutions for diverse machining applications, tailored to your needs. Contact our sales department for details.

Brochure

MD902.4 MB

Description Search (EASY TOOL GUIDE)

MD90 (holder)

MD90 (insert)

View other milling tools (indexable)

Rechargeable Screwdriver for inserts replacement

DTD500/DTD750

DTD500: Maximum electric torque 1N･m (when tightening M5)
DTD750: Maximum electric torque 1.5N･m (when tightening M6)

Next-generation PVD coating for milling

PR18 Series

Cutting angle 45° New general-purpose milling series

MB45

Facing

φ40 ~ φ315

Double-sided 10-corner 45° cutter

MFPN45

Facing
Chamfering

φ50 ~ φ315

View more milling tools (indexable)
