Cutting angle 45° New general-purpose milling series
MB45
General info.
Machining video
Features
Versatility & High Quality: An extensive insert lineup for diverse machining applications.

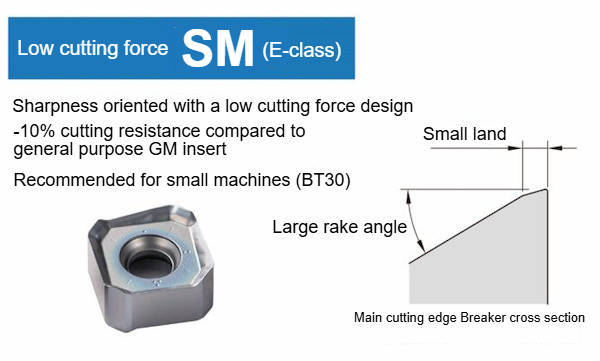

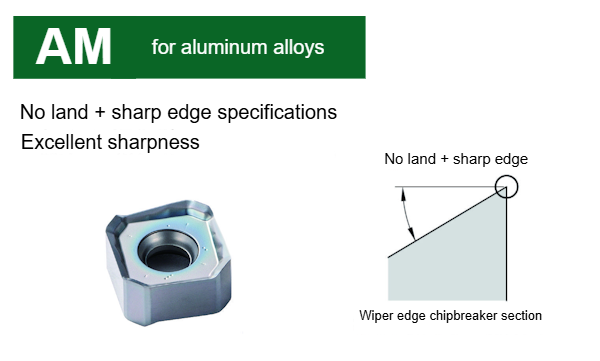

Five types of inserts for a wide variety of machining applications. High cost-effectiveness with a double-sided, 8-corner design.

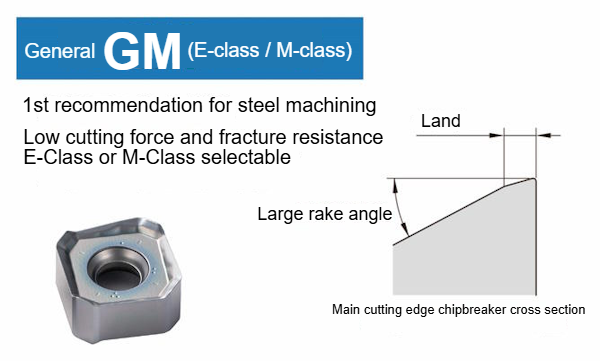

The general-purpose GM is available in both E-class and M-class grades, offering a selection to match the desired machining accuracy.
Versatility & Long Tool Life: An extensive lineup of insert grades.
Suitable for a wide range of materials, from steel to stainless steel, cast iron, heat-resistant alloys, and aluminum alloys.
The new PR18 series for steel machining achieves a substantial increase in tool life.
Versatility & High Performance: Low cutting force and excellent fracture resistance. Achieves a beautiful finished surface.
A meticulous design utilizing proprietary technology.

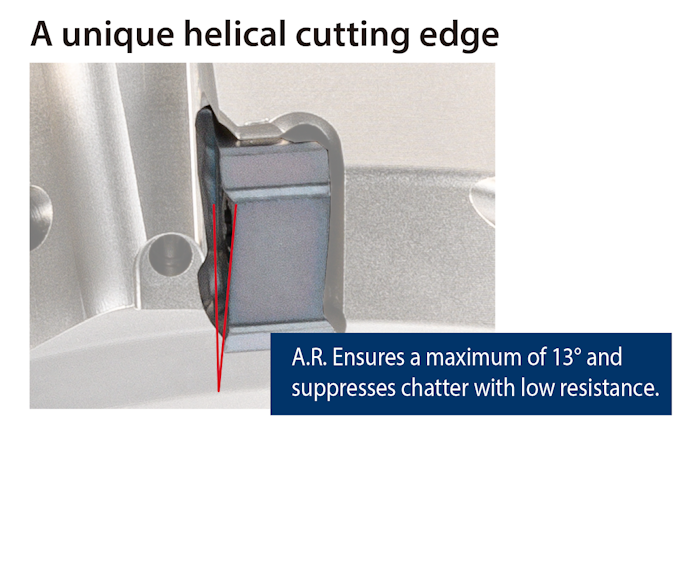

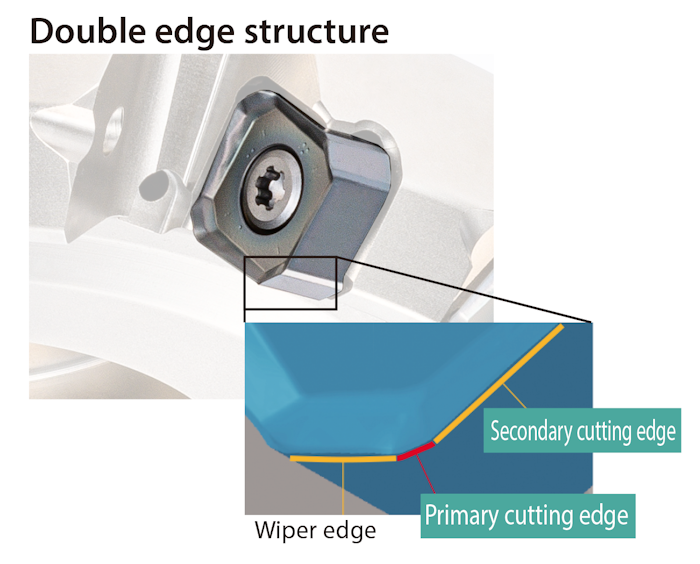

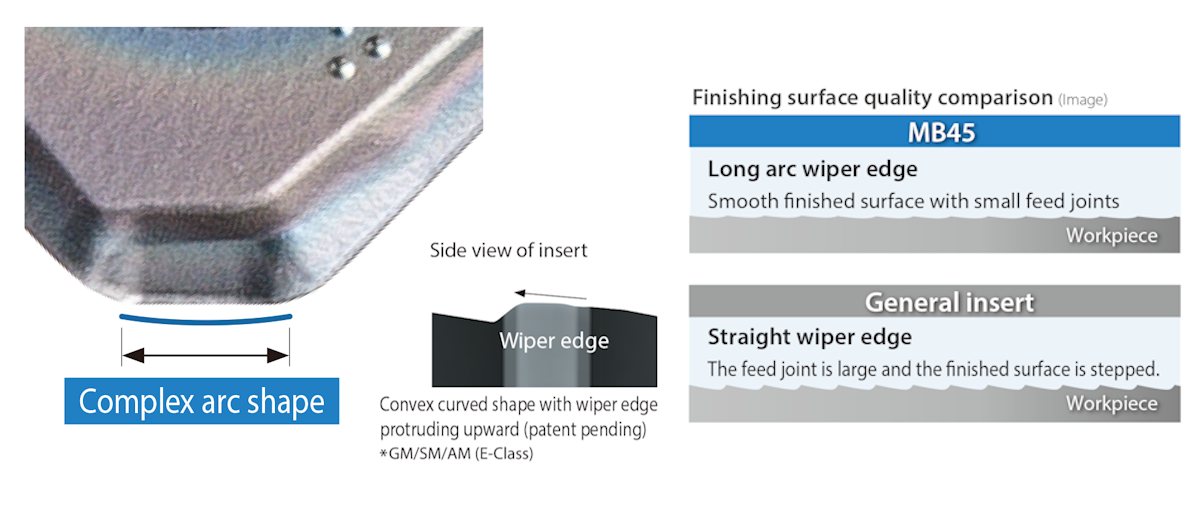

The unique helical cutting edge and double edge structure enable Low Cutting Force and excellent Fracture resistance. The long Arc wiper edge achieves a high-quality surface finish.
Case Study

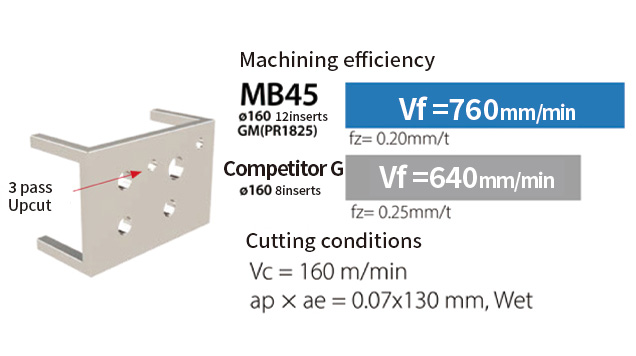

Trestle SS400
MB45 delivers stable machining under circumstances prone to deflection and chattering.The increased number of teeth improves machining efficiency. It is also highly praised for its quiet operation. Steps between machining passes are also improved. (Customer evaluation).

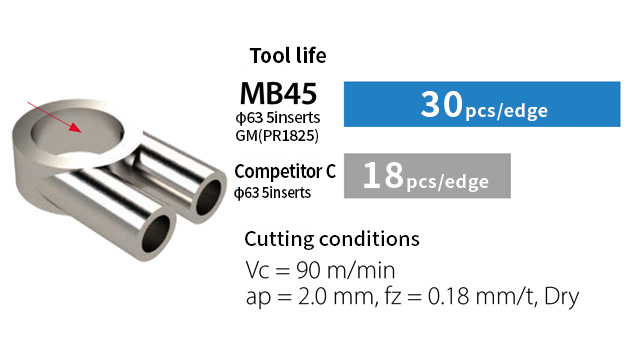

Housing SUS316
MB45 provides stable machining without chattering. The cutting edge wear progresses normally, achieving 1.6 times Tool life of competitors' products (Customer evaluation).

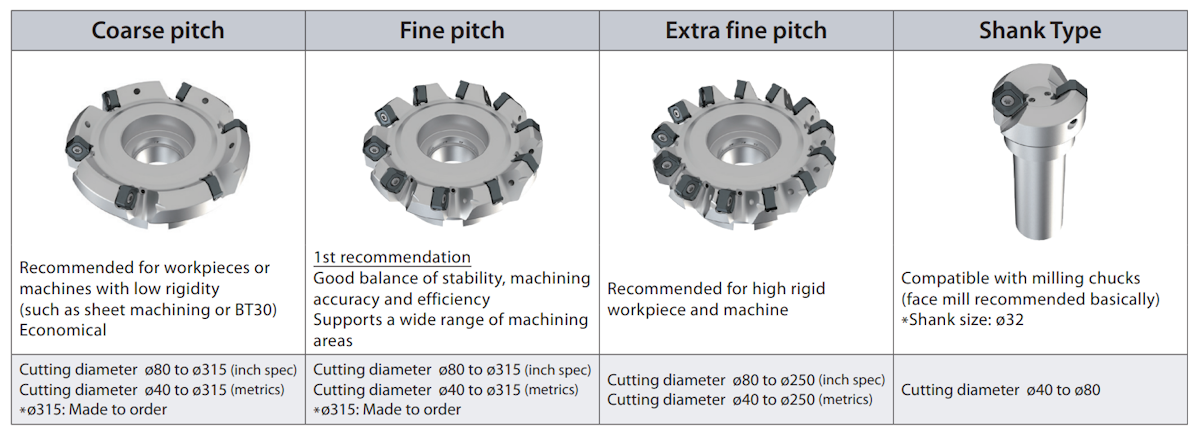

Lineup
φ40 ~ φ315
