Next-generation PVD coating for milling

PR18 Series

Features
Case Study
Lineup
Brochure

General info.

Concept Video

Features

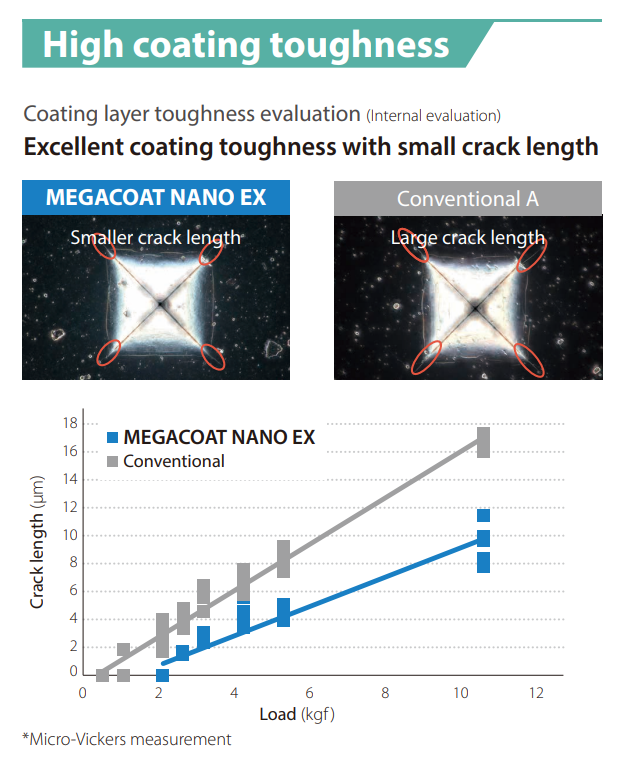

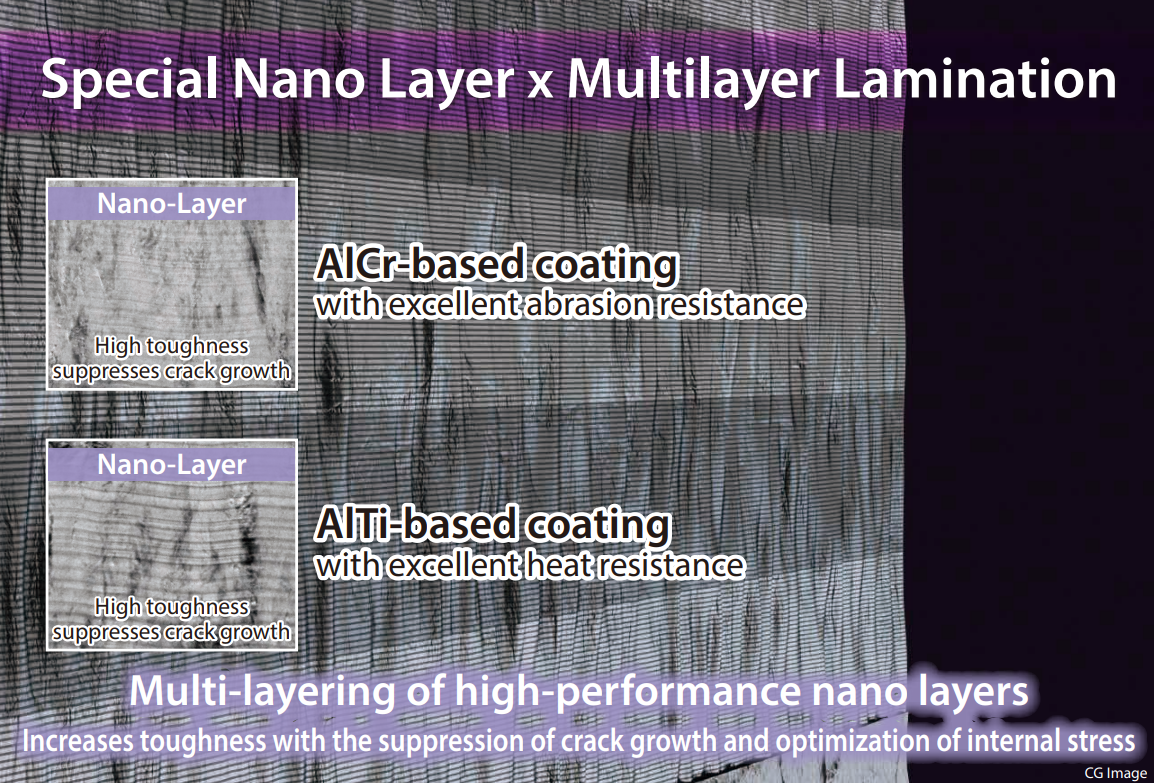

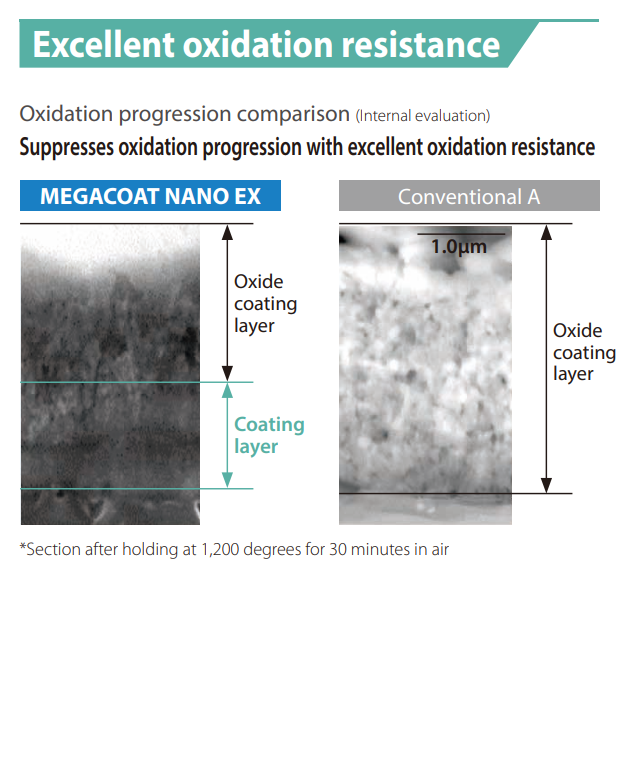

New PVD coating MEGACOAT NANO EX achieves long tool life

Kyocera's proprietary coating, MEGACOAT NANO, has evolved into EX. Utilizing simulation technology, the coating properties have been further improved.

Case Study

Machine parts S45C

The unique insert geometry suppresses wear on Main cutting edge and wiper edge
Achieves superior surface finish and 2.5 times Tool life
(Customer evaluation)

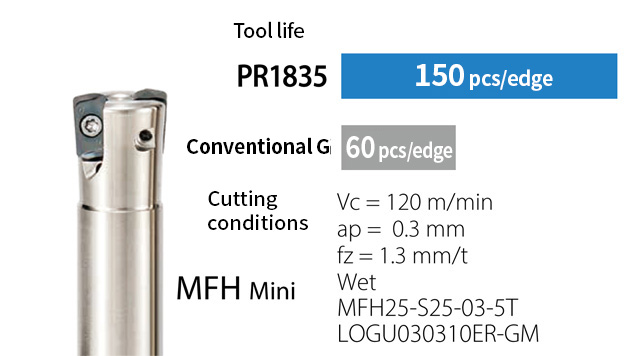

Mold parts Plastic mold Steel

Stable machining without chatter even in high-feed machining
Maintains good Edge condition and achieves 2.5 times Tool life
(Customer evaluation)

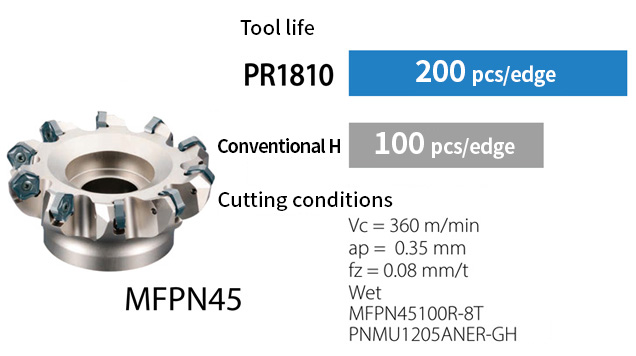

Body parts FC250

Improved Tool life and double-sided 10-corner design achieve significant cost reductions
(Customer evaluation)

Lineup

A lineup of three grades for diverse machining environments. The PR18 series is available across a wide range of products.

Brochure

PR18 Series4.0 MB

Description Search (EASY TOOL GUIDE)

PR18 Series

View other milling tools (indexable)

Rechargeable Screwdriver for inserts replacement

DTD500/DTD750

DTD500: Maximum electric torque 1N･m (when tightening M5)
DTD750: Maximum electric torque 1.5N･m (when tightening M6)

Super fine pitch cutter for aluminum machining

MD90

Facing
Shouldering

φ40 ~ φ125

Cutting angle 45° New general-purpose milling series

MB45

Facing

φ40 ~ φ315

Double-sided 10-corner 45° cutter

MFPN45

Facing
Chamfering

φ50 ~ φ315

View more milling tools (indexable)
