Positive 90° milling cutter
MEC Series
Features
An extensive lineup for a wide variety of applications.
A diverse lineup including modular types, close pitch type, helical endmill, etc. A wide selection of insert grades for various materials, including aluminum and titanium alloys.

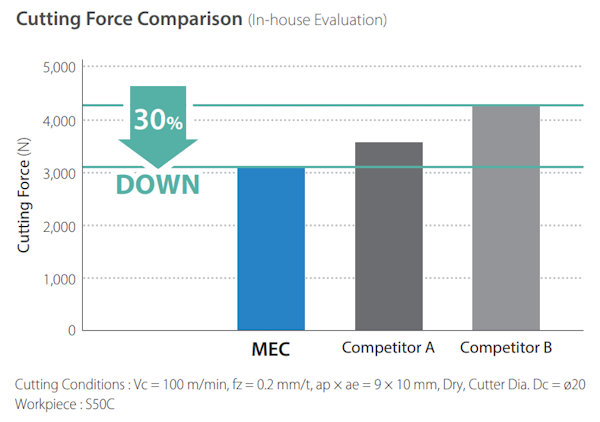

Achieves high-quality machining with Low Cutting Force

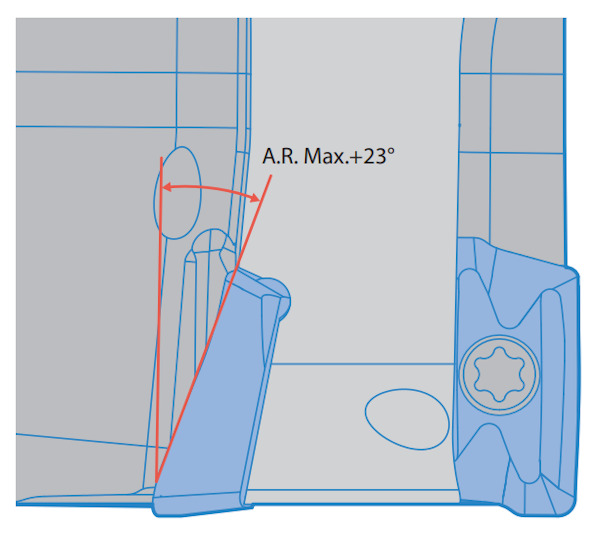

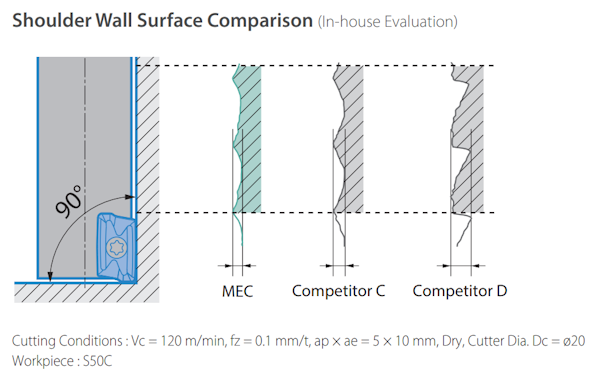

Low cutting force with a maximum A.R. of +23°. Achieving a smooth machined wall with minimal steps during multi-stage cutting.
New PR18 series. Achieving significantly longer tool life
The newly developed proprietary coating MEGACOAT NANO EX achieves long tool life. "Double lamination technology" that laminates two types of special nano-layers in multiple layers further improves toughness, achieving both high levels of wear resistance and fracture resistance.

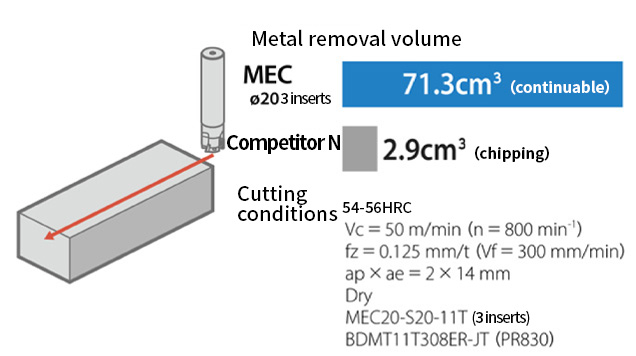

Case Study
RC55 (Pre-hardened tool steel)
MEC delivers a substantial increase in tool life. Competitor products began chipping after 10 minutes and produced loud cutting noise, but MEC maintained excellent cutting edge condition even after 10 minutes.
(Customer evaluation)
(Customer evaluation)
Lineup
Cutting diameter: φ10 ~ φ125
The lineup includes end mills, face mills, modular cutters, and other types such as arbor-integrated type.

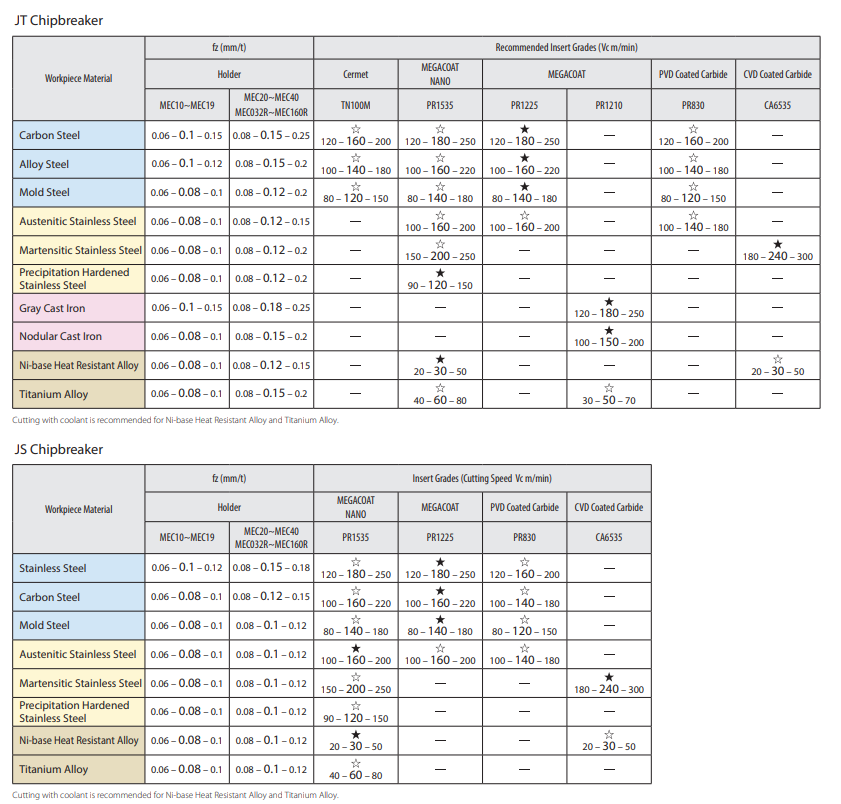

Recommended cutting conditions
