High-efficiency counterbore endmill

MEF

Internal turning
Counterboring

φ11 ~ φ48

Features

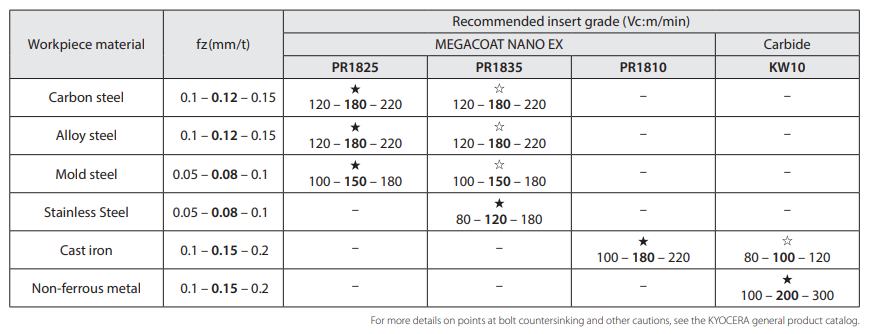

Recommended Cutting Conditions
Brochure

Features

Excellent chip control across a wide range of applications. Low Cutting Force design ensures stable machining.

Supports counterboring for hex socket head bolt (M6 to M30) and boring. Economical with 4 corners.
Introducing the new GM chipbreaker. Achieves excellent chip control in a wide range of applications.

Introducing the new PR18 series. The newly developed proprietary coating MEGACOAT NANO EX achieves long tool life.
"Double lamination technology" that laminates two types of special nano-laminations in multiple layers further improves toughness, achieving high levels of both wear resistance and fracture resistance.

Brochure

MEF724.8 KB

Description Search (EASY TOOL GUIDE)

MEF

View other milling tools (indexable)

Rechargeable Screwdriver for inserts replacement

DTD500/DTD750

DTD500: Maximum electric torque 1N･m (when tightening M5)
DTD750: Maximum electric torque 1.5N･m (when tightening M6)

Super fine pitch cutter for aluminum machining

MD90

Facing
Shouldering

φ40 ~ φ125

Next-generation PVD coating for milling

PR18 Series

Cutting angle 45° New general-purpose milling series

MB45

Facing

φ40 ~ φ315

View more milling tools (indexable)
