High-Performance Endmill

MEV

Facing
Shouldering
Slotting (milling)

φ20 ~ φ100

Brochure 1.8 MB

Features
Lineup
Brochure

General info.

Features

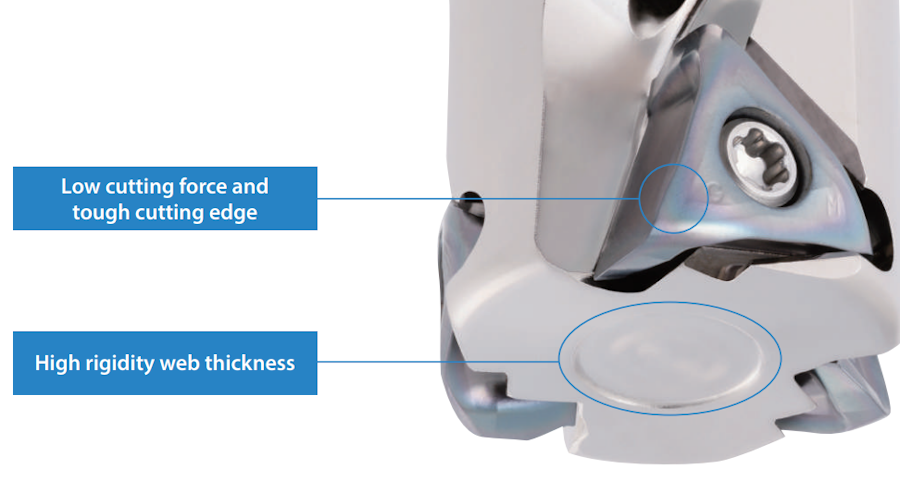

A new type of end mill that combines low cutting force and high rigidity

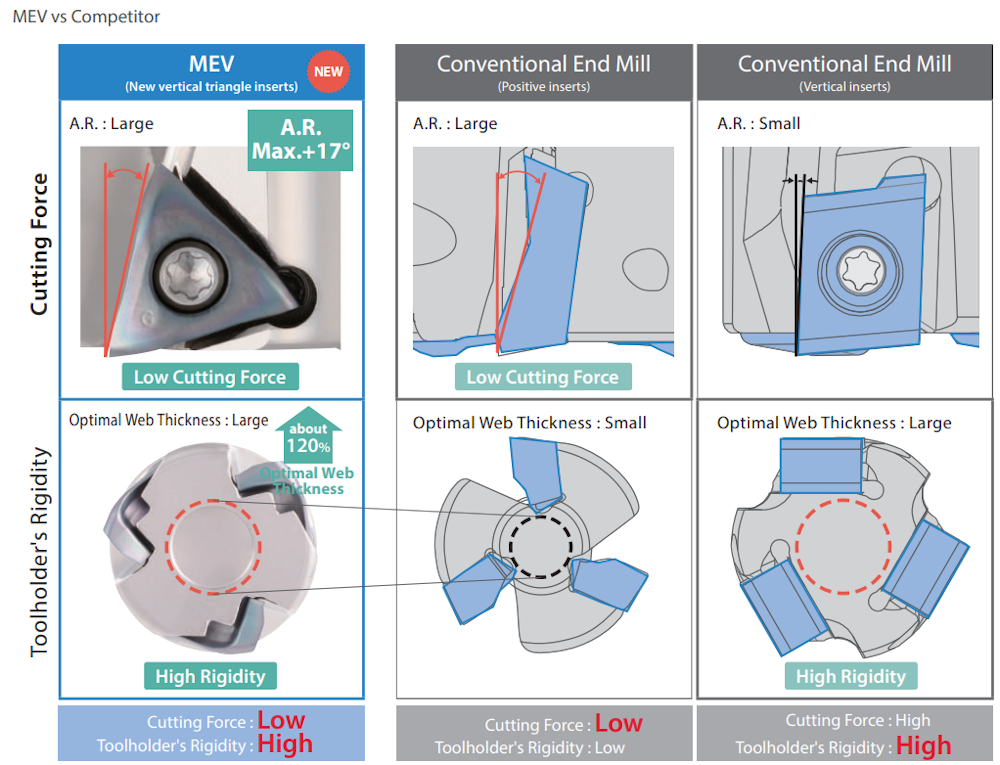

Maximum A.R. of 17°. Low Cutting Force than companies' positive types.
Large web thickness provides high rigidity. Excellent vibration resistance.

The insert has a 3-corner design, ensuring long tool life for both the insert and toolholder.

The unique triangular insert allows for use of three corners.
The increased hardness of toolholder and the wider insert contact surface have also improved the durability of the toolholder.

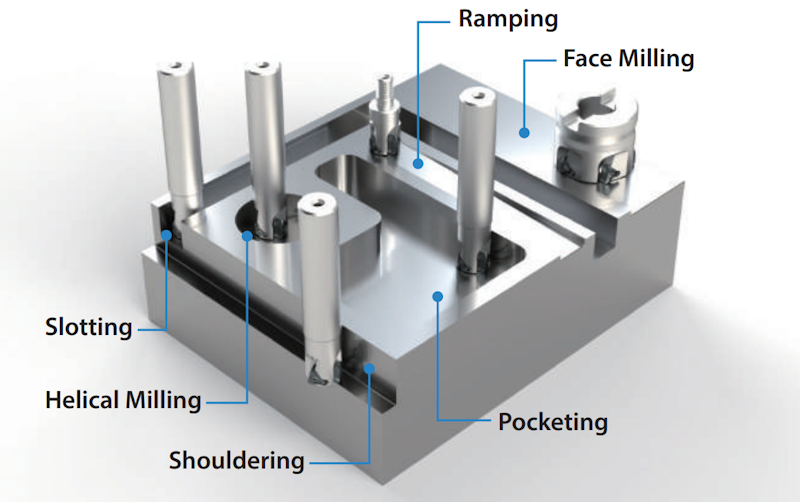

High versatility for a wide variety of applications

Suitable for a wide variety of machining applications, including not only shouldering and slot milling but ramping.

Lineup

Endmill: φ20 ~ φ50
Face Mill: φ32 ~ φ100
Modular: φ20 ~ φ32

Brochure

MEV1.8 MB

Description Search (EASY TOOL GUIDE)

MEV
