High-efficiency finishing cutter for aluminum machining

MFAH

Facing
Shouldering
Slotting (milling)

φ50 ~ φ315

New cutter "MD90" released!
Features
Lineup

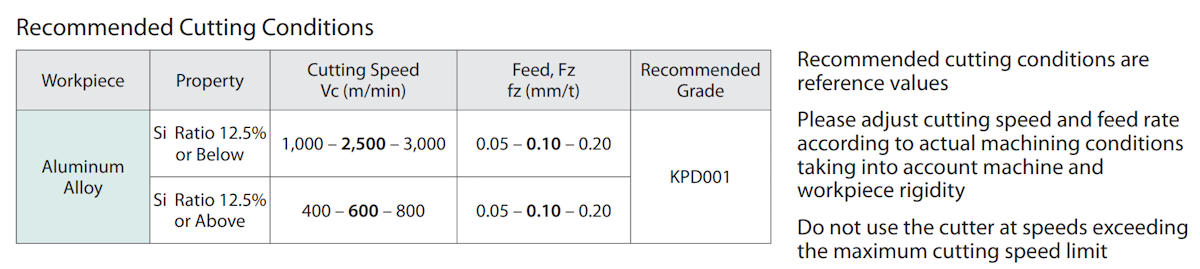

Recommended Cutting Conditions
Brochure

General info.

New cutter "MD90" released!

New super fine pitch cutter "MD90" was launched in April 2025.
Super fine pitch design enables even more efficient machining.
Learn more about the MD90

Features

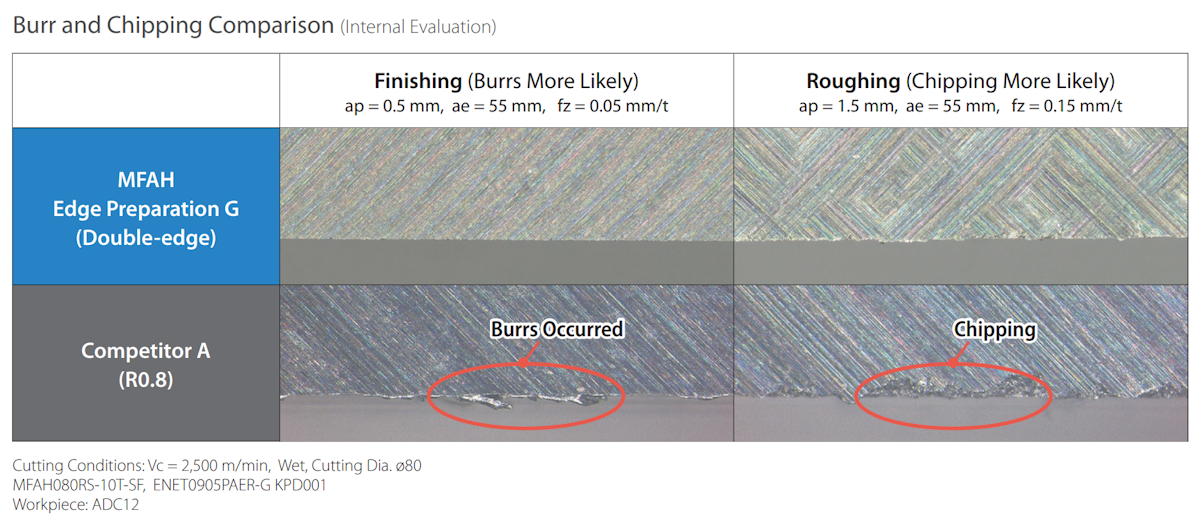

Suppresses burrs and achieves high-quality processing

Large actual rake angle and double-edge geometry suppress burrs and chipping.

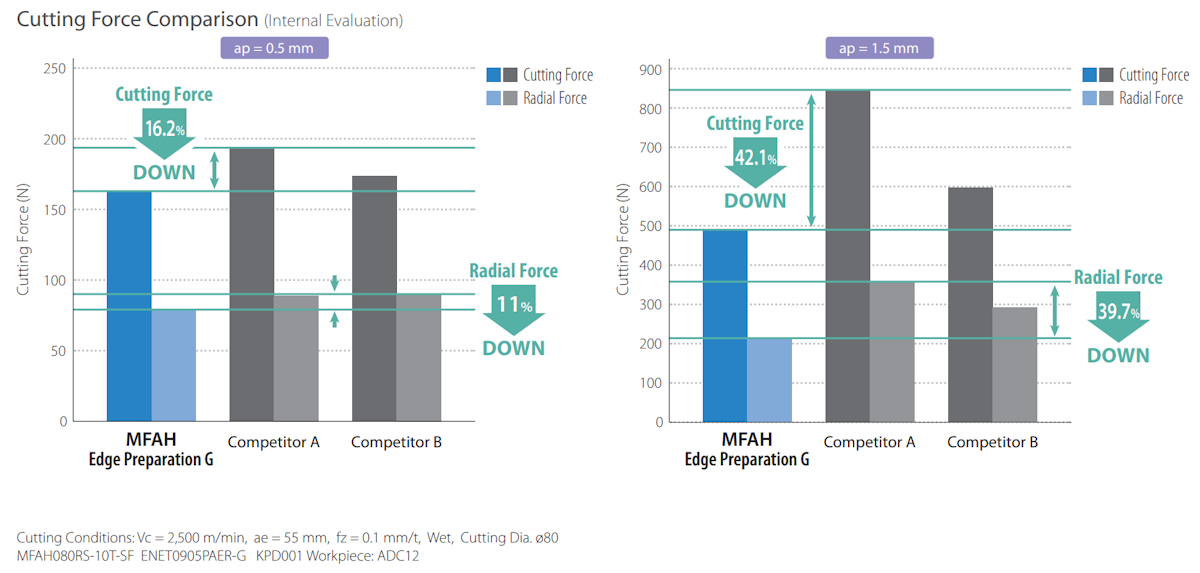

Low cutting force and chatter resistance enable highly efficient machining

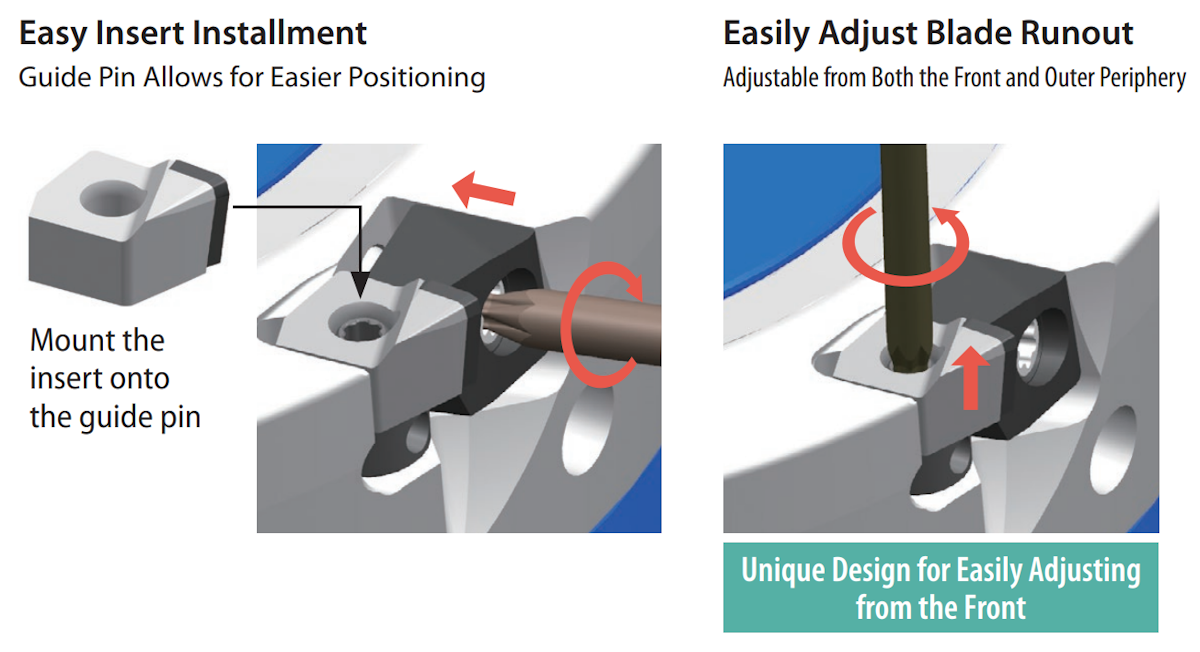

Unique mechanism for easy blade adjustment

An extensive lineup

The lineup includes a steel body and a lightweight hybrid body (compatible with Internal coolant). Three types of corner style to suit your machining needs.

Lineup

Face Mill: φ50 ~ φ315

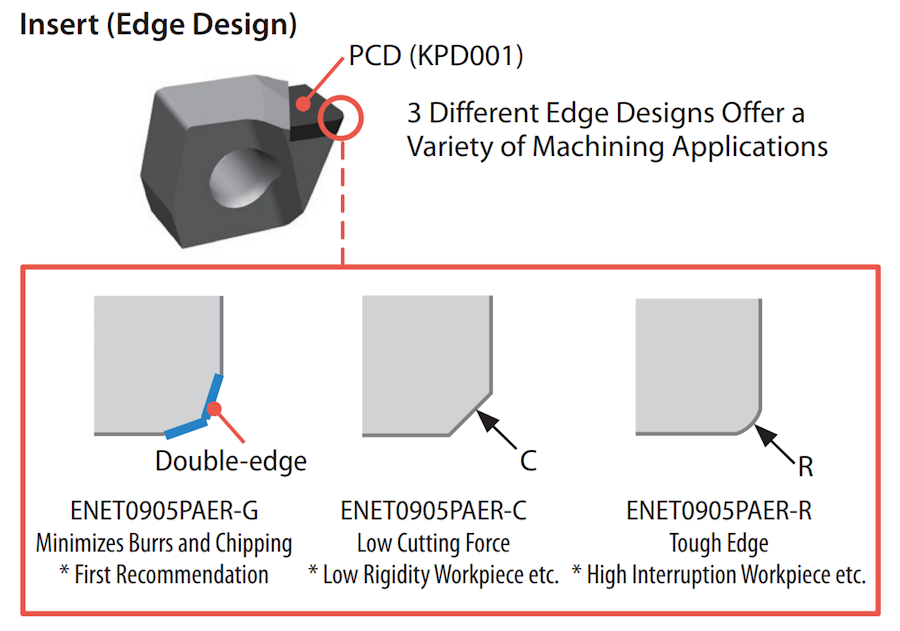

Inserts: 3 types are available General Purpose (double edge corner) / Low Cutting Force type (chamfered corner) / Tough edge type (radius corner)

Brochure

MFAH3.6 MB

Description Search (EASY TOOL GUIDE)

M.F.A.H.

View other milling tools (indexable)

Rechargeable Screwdriver for inserts replacement

DTD500/DTD750

DTD500: Maximum electric torque 1N･m (when tightening M5)
DTD750: Maximum electric torque 1.5N･m (when tightening M6)

Super fine pitch cutter for aluminum machining

MD90

Facing
Shouldering

φ40 ~ φ125

Next-generation PVD coating for milling

PR18 Series

Cutting angle 45° New general-purpose milling series

MB45

Facing

φ40 ~ φ315

View more milling tools (indexable)
