High-efficiency, High-precision finishing cutter

MFF

Facing

φ80 ~ φ250

Brochure1.6 MB

Features
Case Study
Lineup

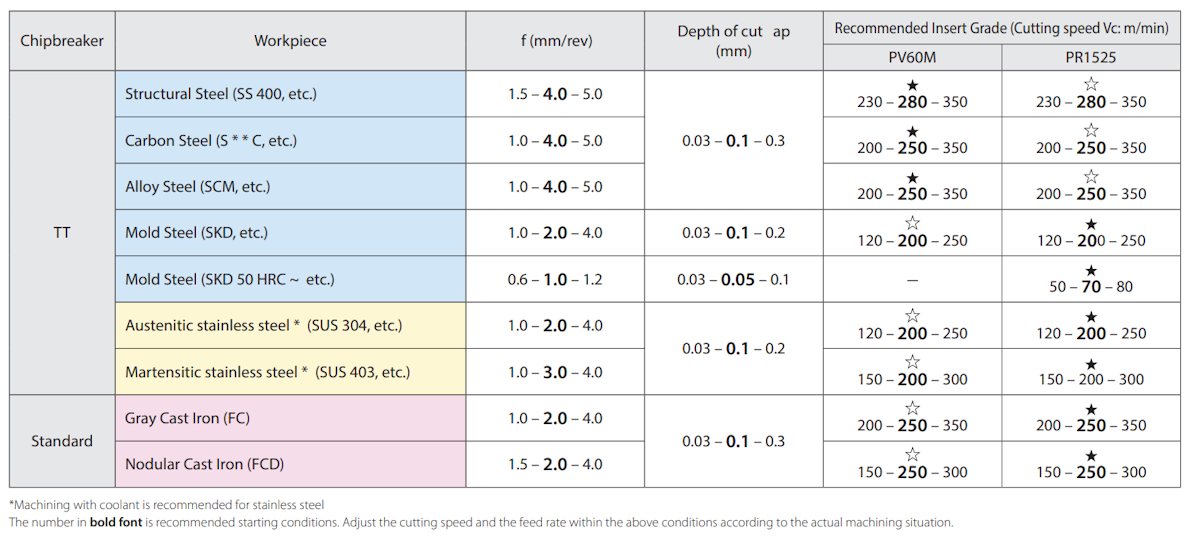

Recommended Cutting Conditions
Brochure

Features

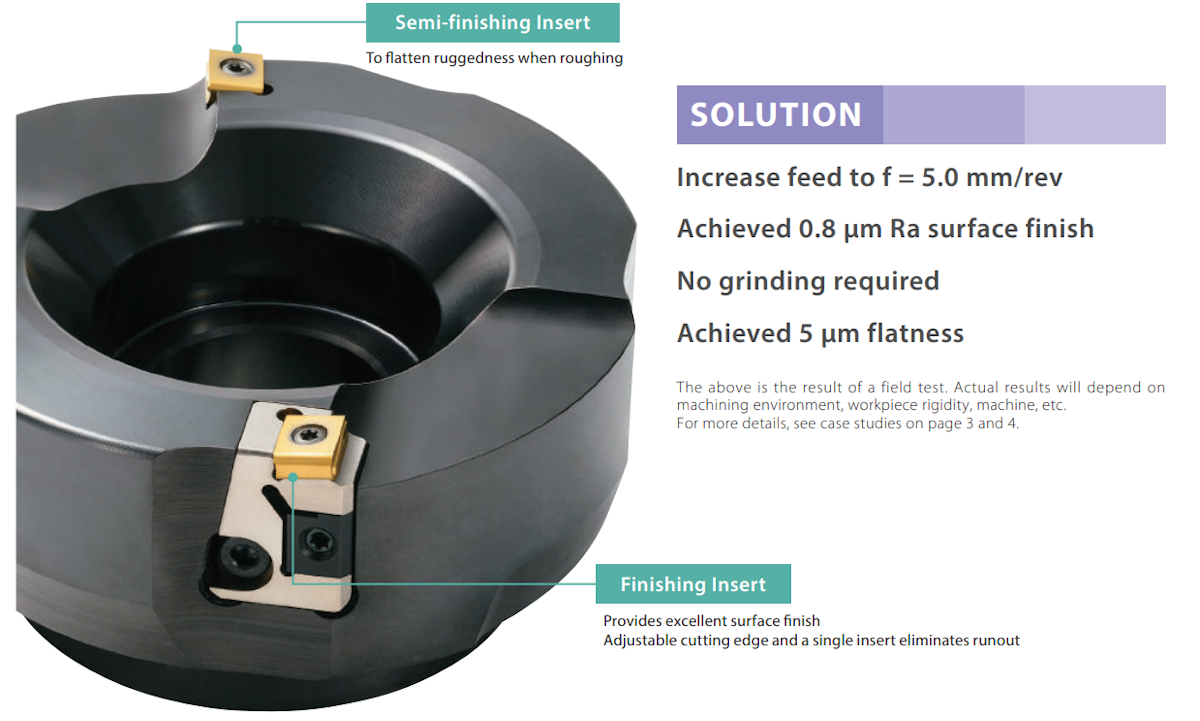

Solving machining challenges with a unique cutter design for finishing applications

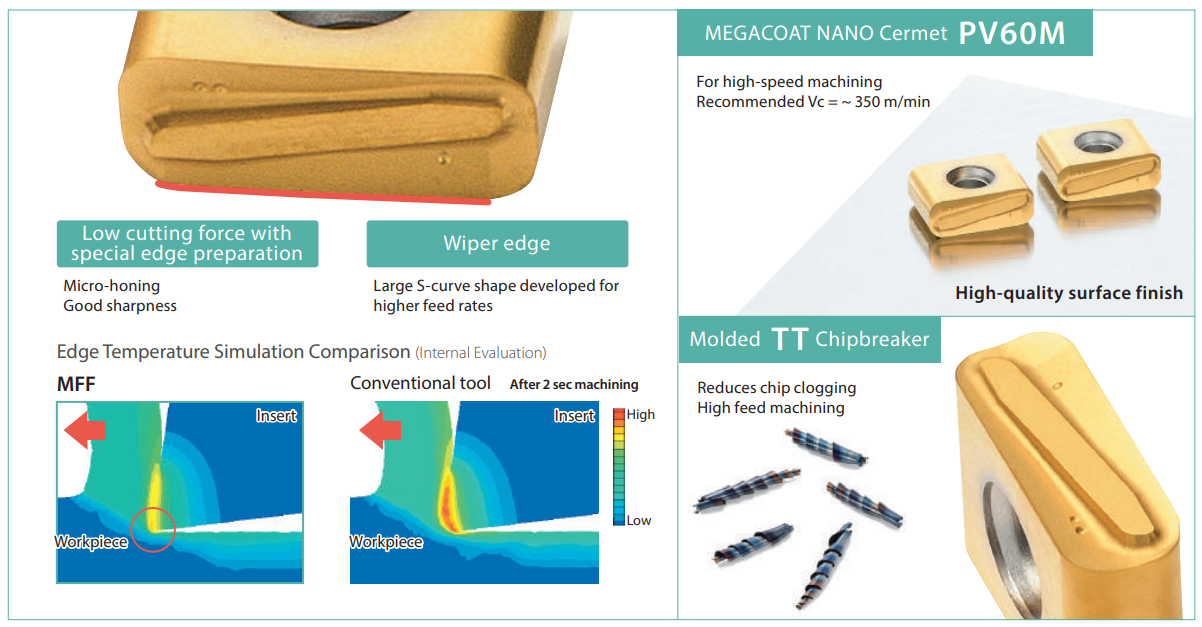

Special wiper inserts enable high feed and high-quality surface finish

Supports high-feed machining with a large arc-shaped wiper edge. Delivers sharp cutting with a low-resistance cutting edge design.
The lineup includes cermet inserts for Vc up to approx. 350 m/min, and molded TT chipbreakers that suppress chip clogging for high-feed machining.

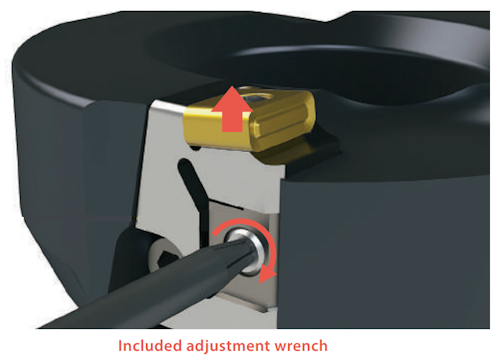

Comes with a blade vibration adjustment mechanism that is easy to operate

The cutting edge height can be adjusted as needed. One-action tightening eliminates the need for final tightening, reducing tedious work.
(Since it is already adjusted, basically there is no need to adjust the cutting edge height. Adjustment is also not required when replacing the insert.)

Case Study

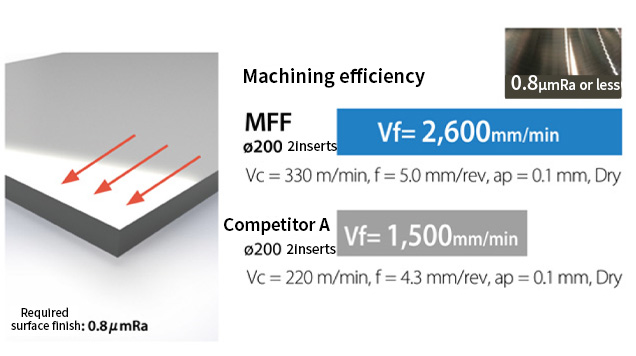

Plate SS400

While machining at f = 4.3 mm/rev or higher was difficult with conventional tools due to poor surface roughness, the MFF maintained excellent surface roughness even at f = 5.0 mm/rev or higher, meeting the requirement of 0.8 μmRa or less. Cutting speed was also increased, achieving 1.7 times the efficiency.
(Customer evaluation)

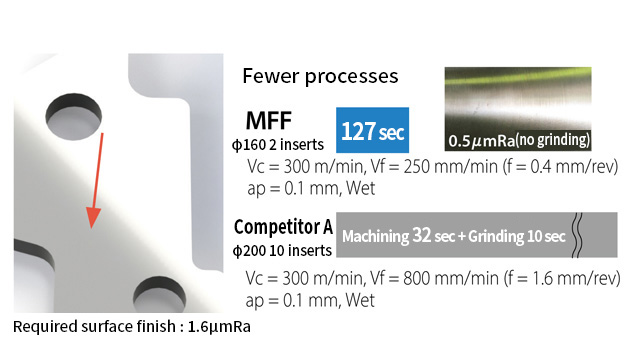

Valve FCD450

While conventional tools caused a cloudy finish, the MFF achieved a glossy, excellent finished surface with 0.5 μmRa. This eliminates the need for a polishing process, reducing machining time by approximately 80%.
(Customer evaluation)

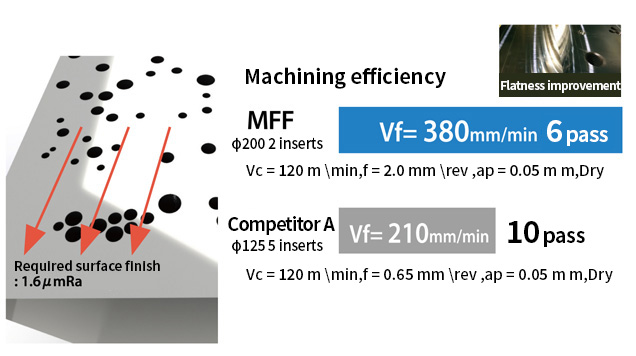

Mold, equivalent to SKD61

MFF delivers an excellent finished surface with no steps at tool path transitions. By enlarging the cutter diameter, the number of passes was reduced to 6, improving productivity. Highly praised for good chip condition and excellent sharp cutting performance.
(Customer evaluation)

Lineup

φ80 ~ φ250
Insert lineup compatible with steel, stainless steel, and cast iron

Brochure

MFF1.6 MB
