Tangential cutter with a 4-Edge insert for heavy machining

MFLN

Facing
Shouldering
Slotting (milling)

φ80 ~ φ315

Brochure 2.5 MB

Features
Case Study
Lineup

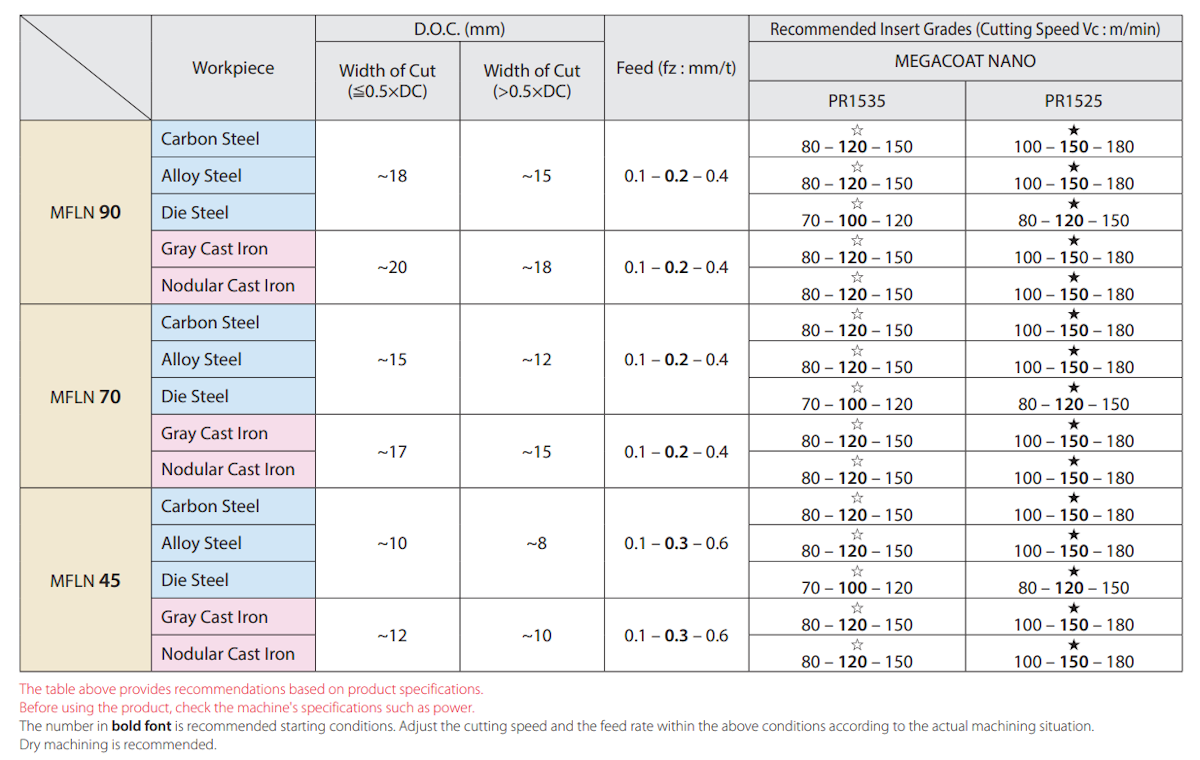

Recommended Cutting Conditions
Brochure

General info.

Machining video

Features

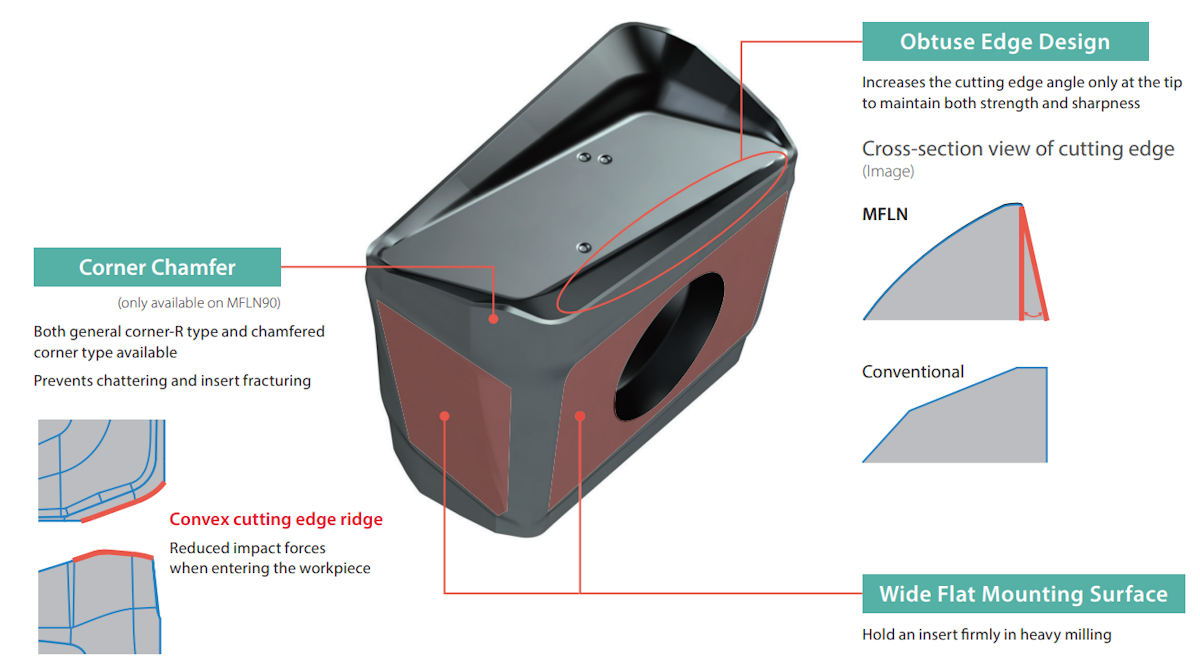

Tough insert. High reliability in heavy machining.

Uses a high-strength, high rigidity insert with overall length of 22 mm. A tangential type with a double-sided, 4-corner design.

Supports high cutting depth and high feed rate. Available in three types with lead angles of 90°, 70°, and 45°.

New PR18 series. Achieving significantly longer tool life

The newly developed proprietary coating MEGACOAT NANO EX achieves long tool life. "Double lamination technology" that laminates two types of special nano-layers in multiple layers further improves toughness, achieving both high levels of wear resistance and fracture resistance.

Case Study

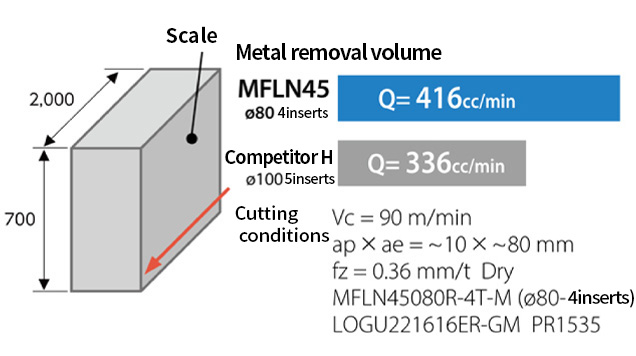

Casting mold for automation parts

MFLN achieved 1.2 times Machining efficiency of competitors' products. Cutting noise and Chip shape were also prefarable.
(Customer evaluation)

Lineup

φ80 ~ φ315
Lead angle 90°/70°/45° types Lineup

Brochure

MFLN2.5 MB

MFLN PR18 cutting conditions1.7 MB

Description Search (EASY TOOL GUIDE)

MFLN45

MFLN70

MFLN90

View other milling tools (indexable)

Rechargeable Screwdriver for inserts replacement

DTD500/DTD750

DTD500: Maximum electric torque 1N･m (when tightening M5)
DTD750: Maximum electric torque 1.5N･m (when tightening M6)

Super fine pitch cutter for aluminum machining

MD90

Facing
Shouldering

φ40 ~ φ125

Next-generation PVD coating for milling

PR18 Series

Cutting angle 45° New general-purpose milling series

MB45

Facing

φ40 ~ φ315

View more milling tools (indexable)
