MFSE45

S Improved efficiency by simultaneously performing roughing and finishing.

Achieves superior surface finish (0.8 μm Ra or less) under roughing conditions (fz = 0.25 mm/t)*

*Based on in-house evaluation

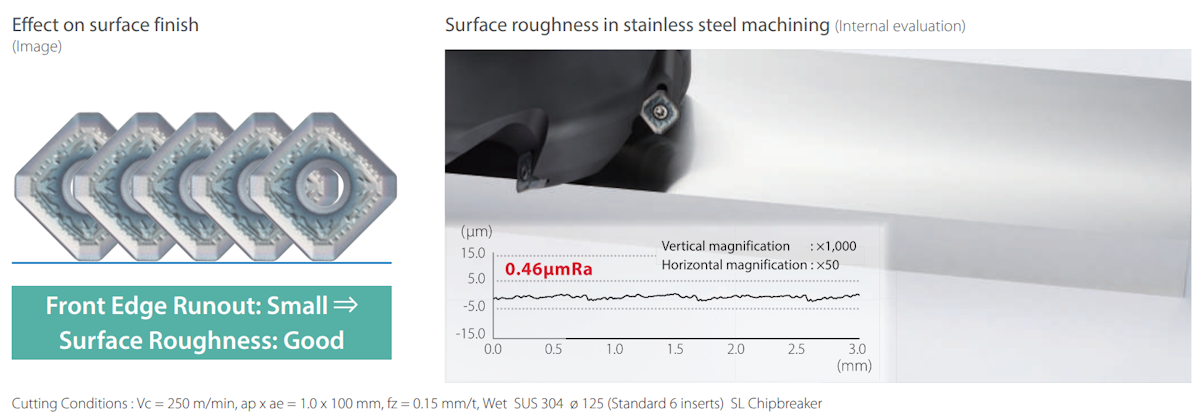

Beautiful surface finish and long tool life

The insert inscribed circle tolerance is strictly controlled to reduce axial runout. The unevenness of surface finish is reduced to achieve excellent surface roughness.

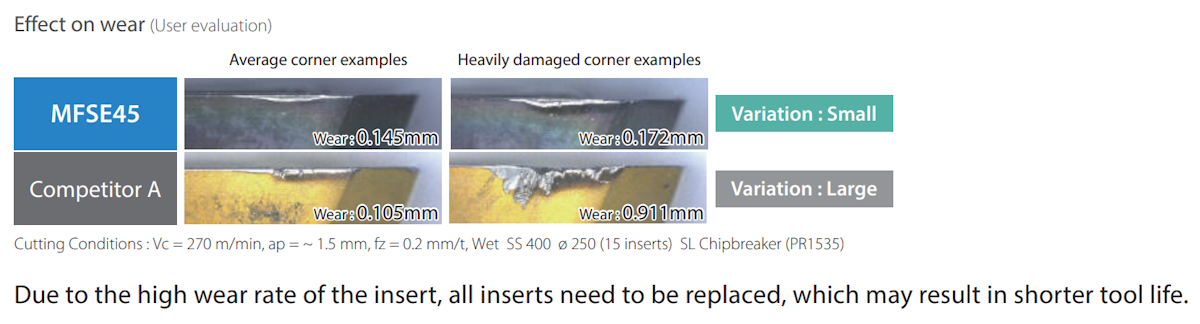

Additionally, insert wear progresses evenly, improving Tool life.

Molded chipbreaker provides excellent chip control. Improved workability

Excellent chip control. Eliminates chip tangles around jig etc., improving work efficiency. The lineup includes GL chipbreaker for steel, SL chipbreaker for stainless steel, and AL chipbreaker for aluminum.

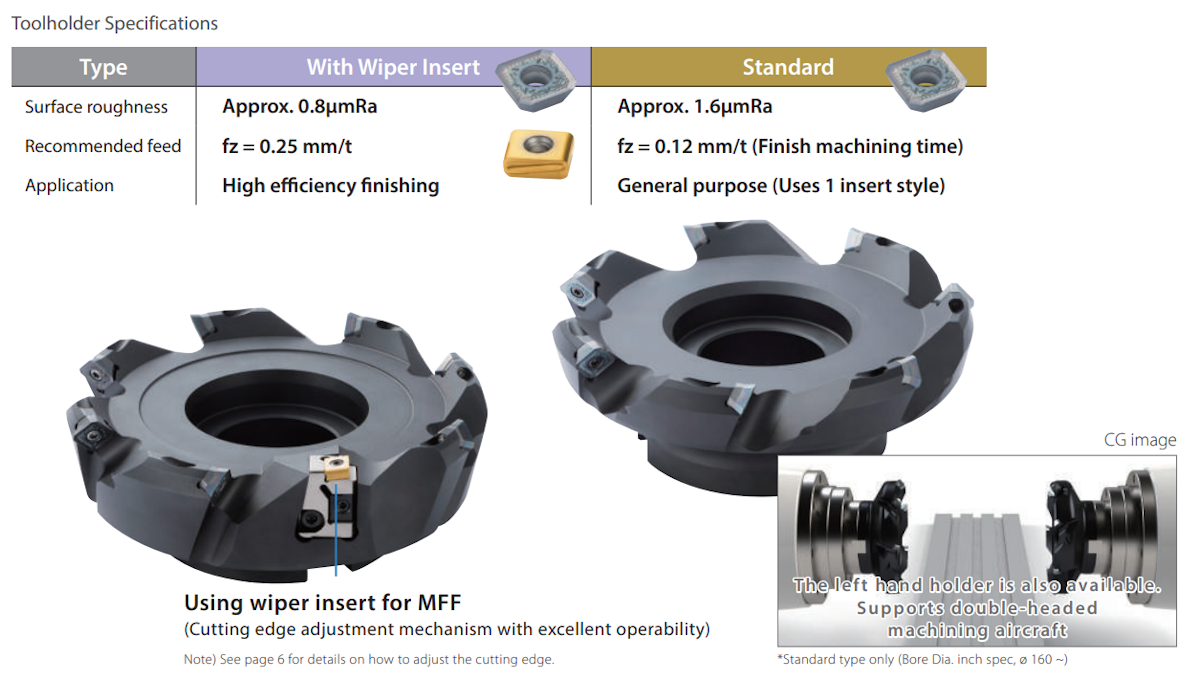

An extensive lineup of holders, selectable to match your purpose and application.

The lineup includes a type with one wiper edge insert and a standard type consisting only of regular inserts.

φ63~φ250
With wiper edge type and standard type available
