Low Cutting Force Radius cutter

MRX

Facing
Shouldering
Chamfering

φ16 ~ φ125

Brochure 6.2 MB

Features
Lineup
Brochure

Features

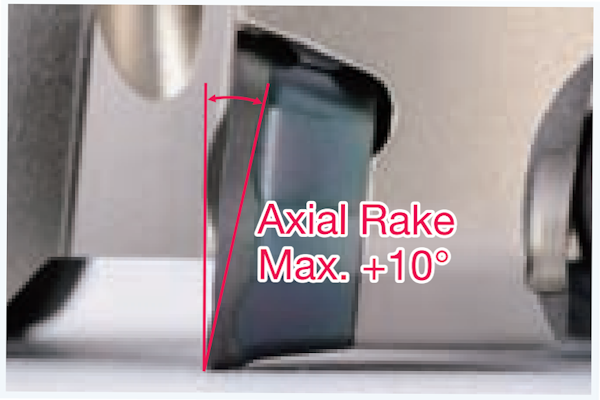

Helical cutting edge for Low Cutting Force

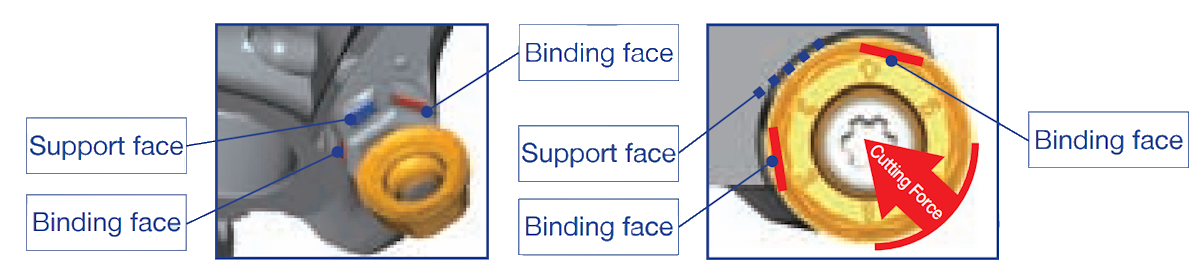

The insert is firmly fixed to achieve stable machining.

Two wide, flat clamping faces evenly distribute the cutting force while suppressing insert rotation.

New PR18 series. Achieving significantly longer tool life

The newly developed proprietary coating MEGACOAT NANO EX achieves long tool life. "Double lamination technology" that laminates two types of special nano-layers in multiple layers further improves toughness, achieving both high levels of wear resistance and fracture resistance.

Lineup

Face Mill: φ40 ~ φ125
Endmill: φ16 ~ φ63
Modular type: φ16 ~ φ40

Brochure

MRX6.2MB

Description Search (EASY TOOL GUIDE)

MRX

View other milling tools (indexable)

Rechargeable Screwdriver for inserts replacement

DTD500/DTD750

DTD500: Maximum electric torque 1N･m (when tightening M5)
DTD750: Maximum electric torque 1.5N･m (when tightening M6)

Super fine pitch cutter for aluminum machining

MD90

Facing
Shouldering

φ40 ~ φ125

Next-generation PVD coating for milling

PR18 Series

Cutting angle 45° New general-purpose milling series

MB45

Facing

φ40 ~ φ315

View more milling tools (indexable)
