Tools for small internal diameter

EZ Bar Series

Internal turning
Internal grooving
Face grooving
Threading

Minimum diameter φ1~

Brochure 2.7 MB

Features

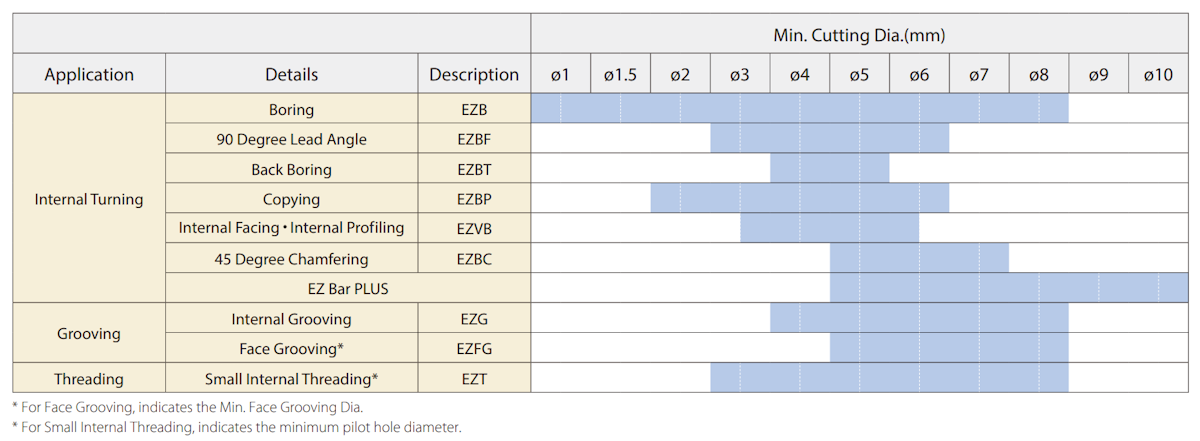

Lineup
Brochure

General info.

Features

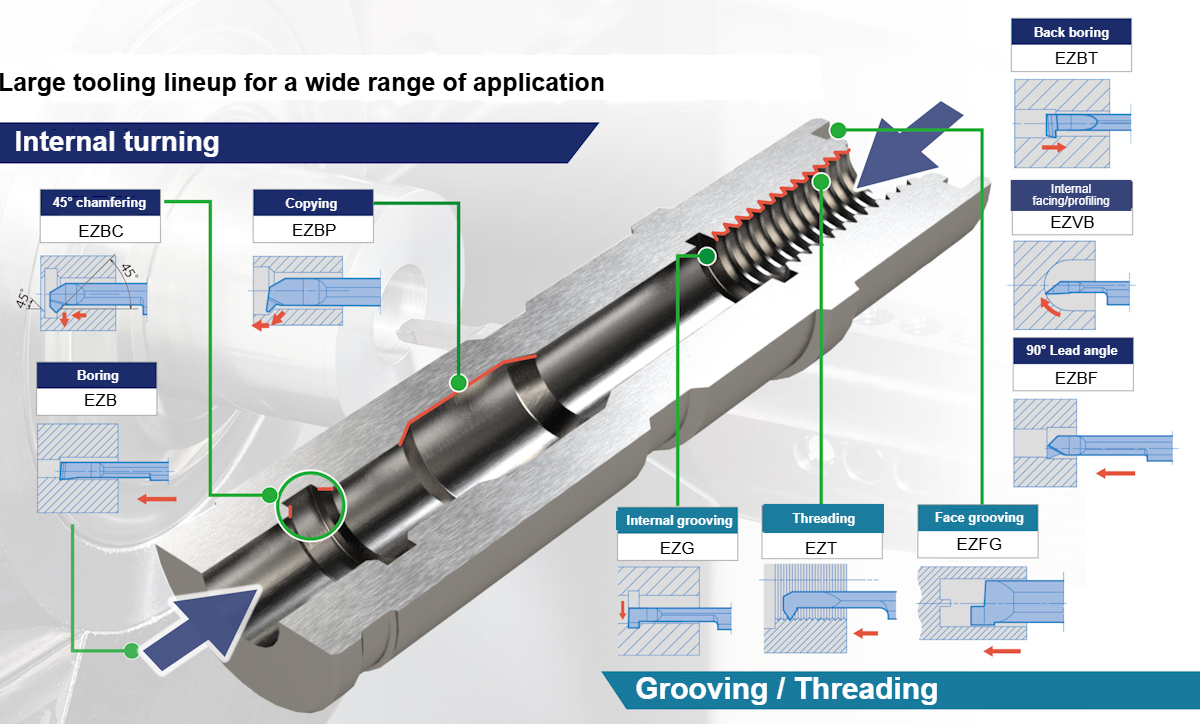

Supports a wide range of applications, including internal turning, grooving, threading, etc.

Internal turning: Available for 45° chamfering and profiling
Internal grooving: Available for high-precision grooving with tolerance of ±0.03 mm
Internal threading: Available for M4 metric thread

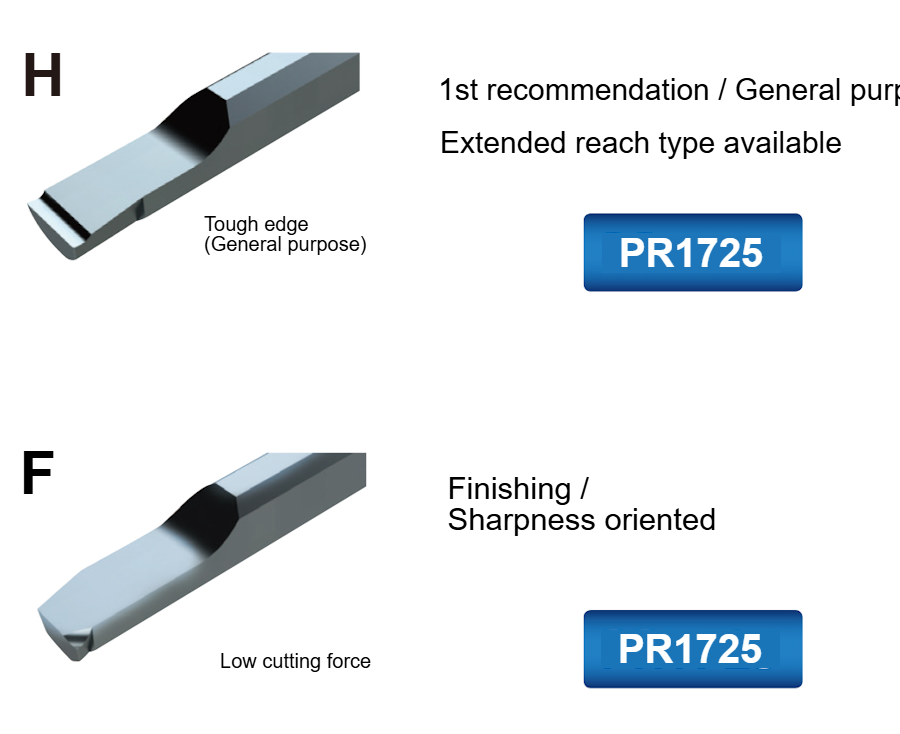

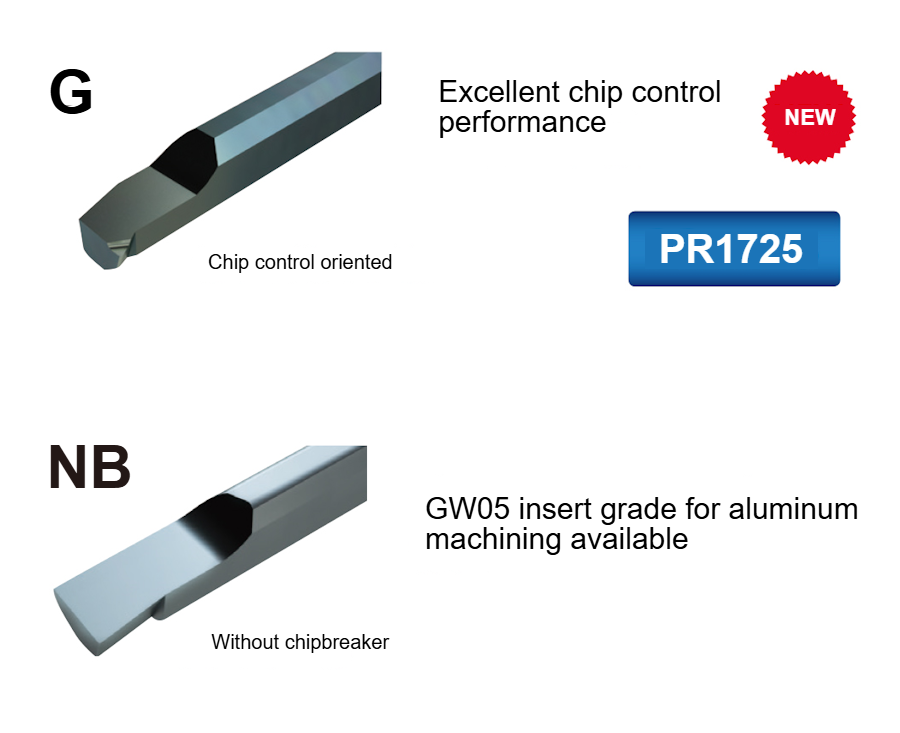

Extensive chipbreaker lineup

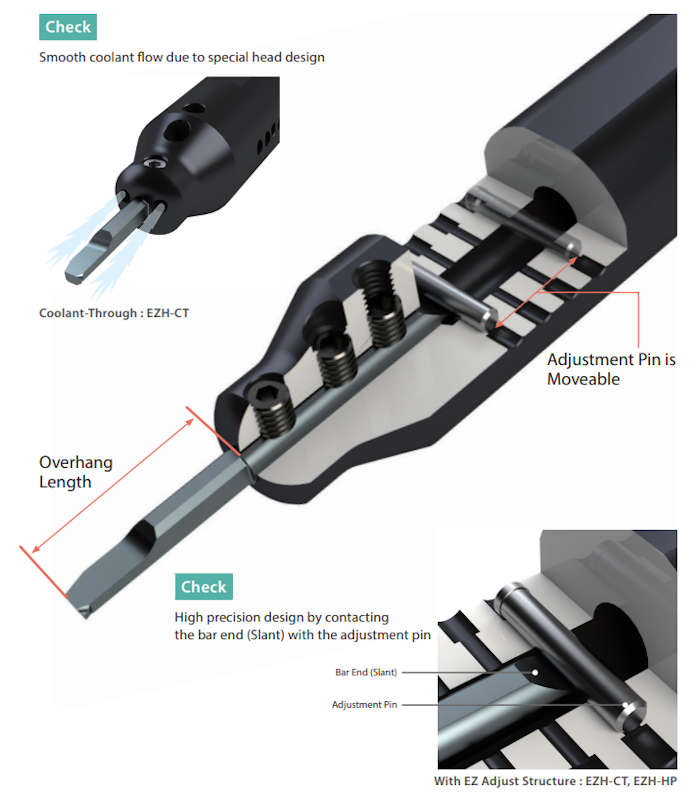

High repeatability through simple positioning.

Both the EZH-CT sleeve (with coolant hole) and EZH-HP sleeve (with positioning function) allow the overhang length to be set by simply relocating the positioning pin. Ensuring high repeatability by bringing the insert's rear slant face into contact with the positioning pin.

Lineup

Brochure

EZ Bar2.7 MB

Description Search (EASY TOOL GUIDE)

Solid Bar

Indexable type boring bar

sleeve
