Toolholder compatible with high pressure coolant

JCT Series

External Turning
Internal turning
Cut off
Threading

Shank size: 20/25

Brochure2.2 MB

Features
Case Study
Brochure

General info.

Features

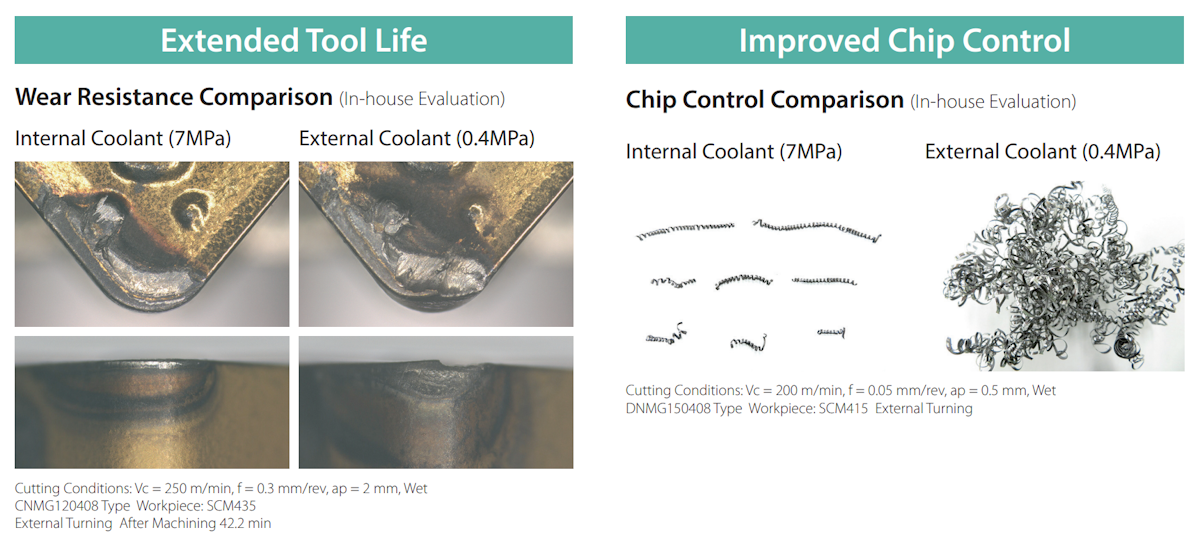

Internal coolant improves tool life and provides excellent chip control

Supplies coolant directly to the cutting edge.
Improved tool Tool life and chip control compared to External coolant

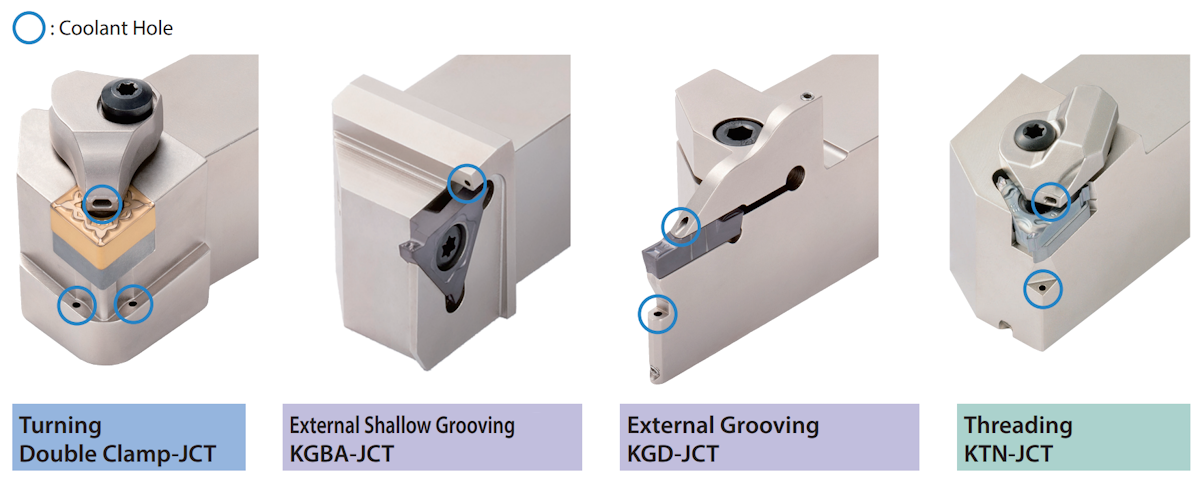

Lineup of Turning / Grooving / Cut-off / Threading toolholders

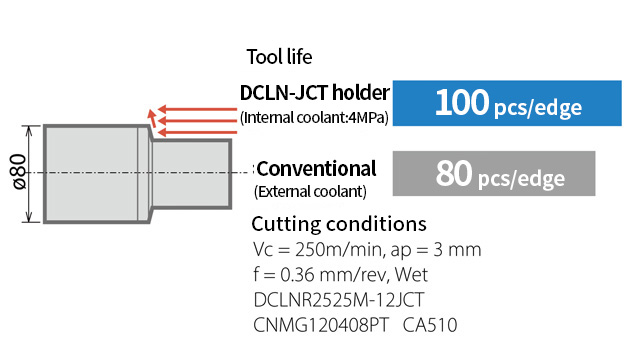

Case Study

Machine Parts Carbon steel

DCLN-JCT Internal coolant machining achieves 1.25 times longer Tool life than External coolant (Customer evaluation).

Brochure

JCT Series2.2 MB

Double clamp-JCT1.9 MB

Description Search (EASY TOOL GUIDE)

External Turning Toolholder

Grooving Toolholder

Threading Toolholder

View other turning holders

Interchangeable head boring bar with built-in anti-vibration mechanism

KAV Series

Internal turning

shank diameter: φ16 ~ φ40

25°point angle insert for profiling

ZBMT series

External Turning
Internal turning

Shank size: 20/25

Direct coolant supply toolholder for automatic lathe

JCTM Series

External Turning
External Grooving
Cut off

Shank size: □12 ~ □25

External turning toolholder

Double clamp type External turning toolholder

External Turning

Shank size: 20/25

View more turning toolholders
