Solid carbide drill (Custom tool)

XBDR

Contact our sales department for details.

Features
Case Study
Brochure

Solving the remaining Jinbasho! VS General Purpose Drill

Solving the remaining Jinbasho problem! VS Flat Drill

Features

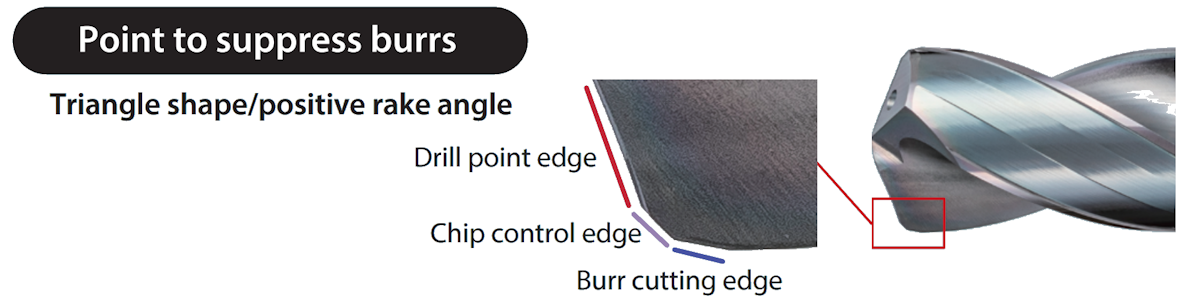

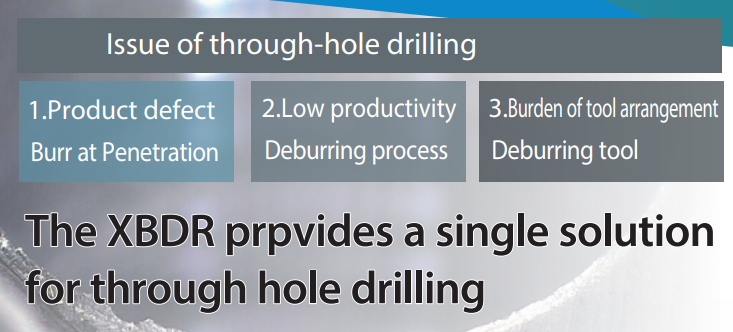

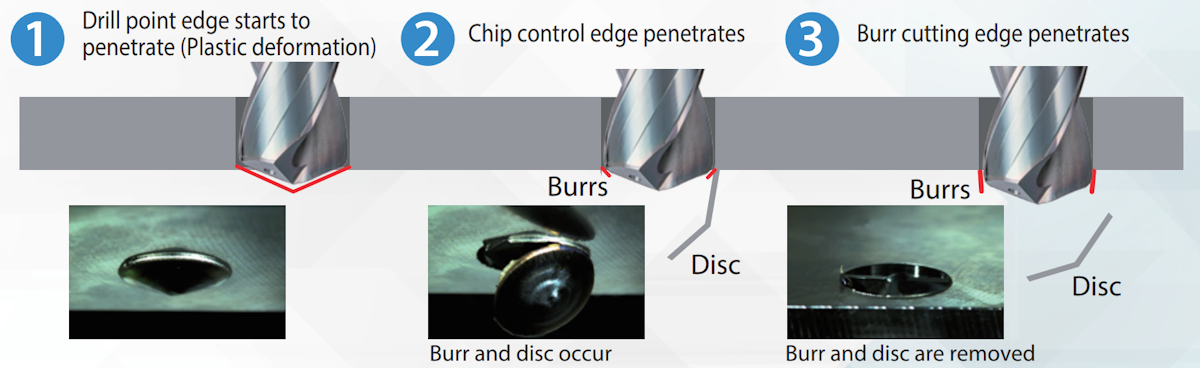

The unique geometry suppresses burrs when drilling through holes, leaving no disk.
Can be reground by the customer or by a regrinding service company. (For details on regrinding, contact our sales department)

Case Study

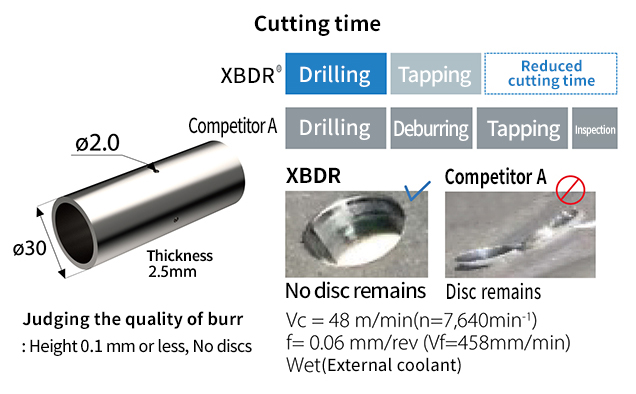

Pipe (Automotive parts) φ2 pipe material

Eliminating deburring and full inspection has resulted in significant time savings, and tool Tool life has also increased by 1.5 times.

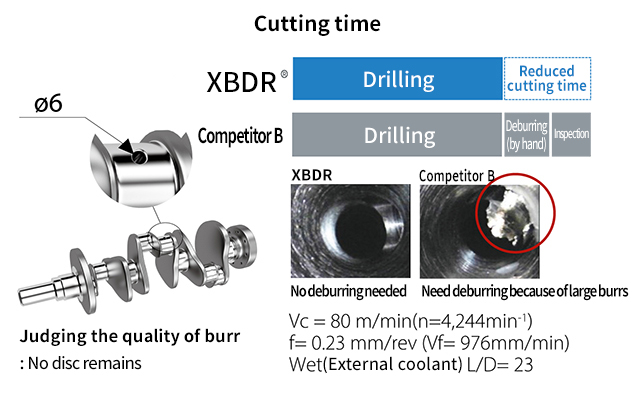

Shaft φ6 SV material

Manual deburring and full inspection have been eliminated, contributing to a significant reduction in processing time and labor costs.

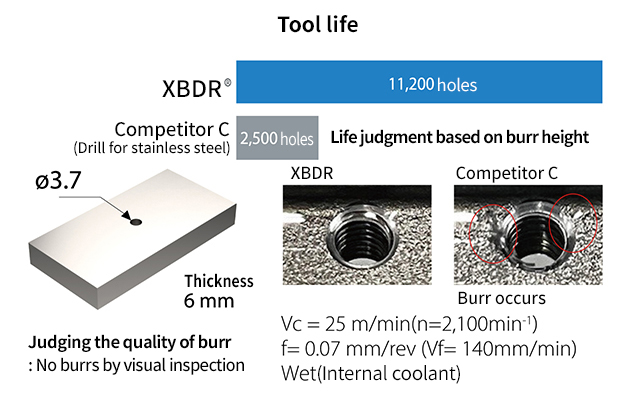

Slide table φ3.7 SUS440

Tool Tool life was increased by 4.5 times due to reduced burrs, contributing to reduced tool costs and inventory.

Brochure

XBDR404.3 KB

View other drills

High-efficiency coated solid carbide drill

KDA

Drilling

φ3 ~ φ16
3D / 5D

High-precision small-diameter solid drill

KDA Mini

Drilling

φ1 ~ φ2.9
3D / 5D / 8D

High-performance new flat drill

KDZ

Drilling
Counterboring

φ1 ~ φ20

Highly efficient modular drill

DRA

Drilling
Chamfering
Counterboring

φ7.94 ~ φ33
1.5D / 3D / 5D / 8D / 12D

View more drills
