High-efficiency indexable drill

DRV

Drilling

φ12 ~ φ60
2D/3D/4D/5D/6D

Brochure 3.0 MB

Features
Case Study
Lineup
Brochure

General info.

Features

Low-resistance design enables machining up to 6xD.

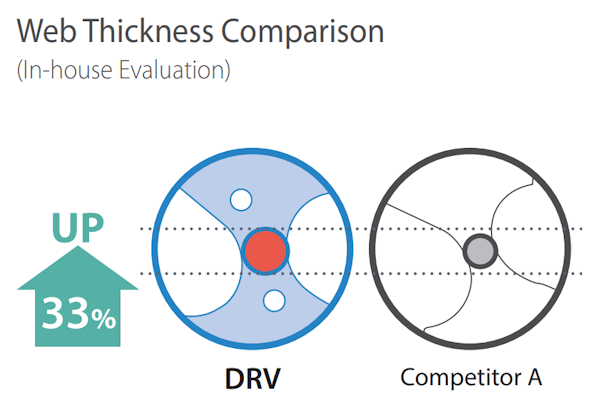

Large web thickness and high rigidity. Low cutting force design suppresses chatter.

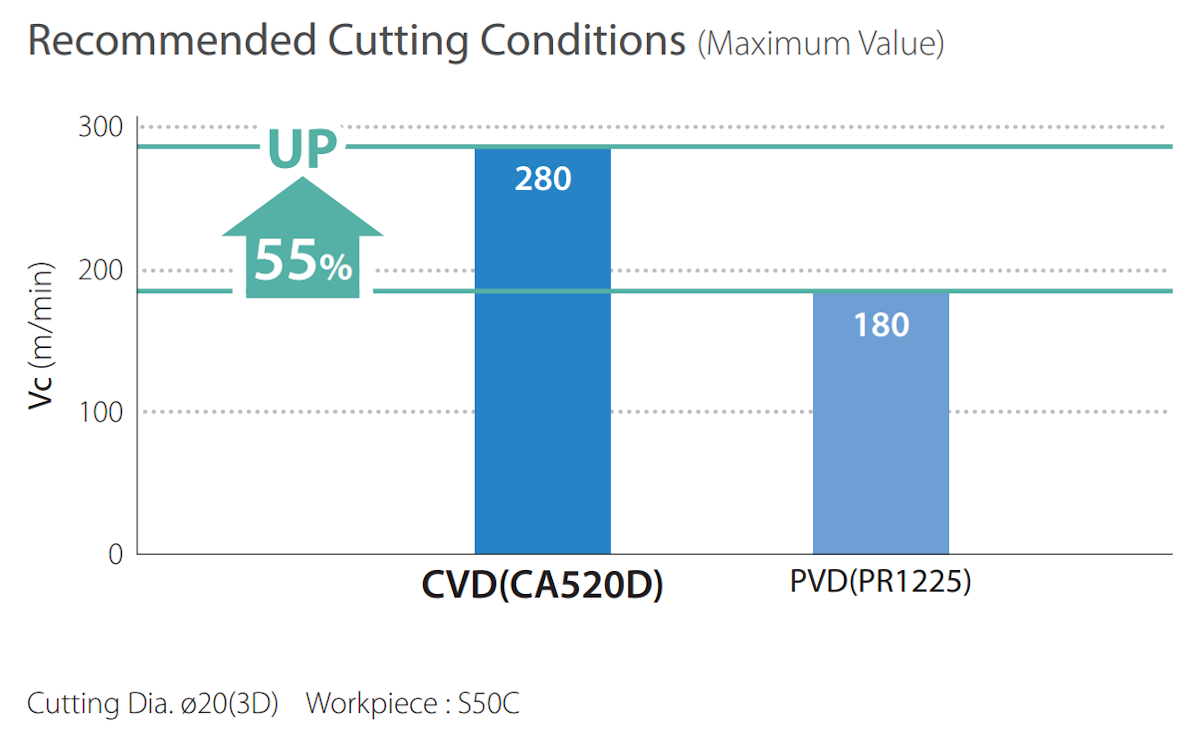

CVD outer cutting edge for high-efficiency machining

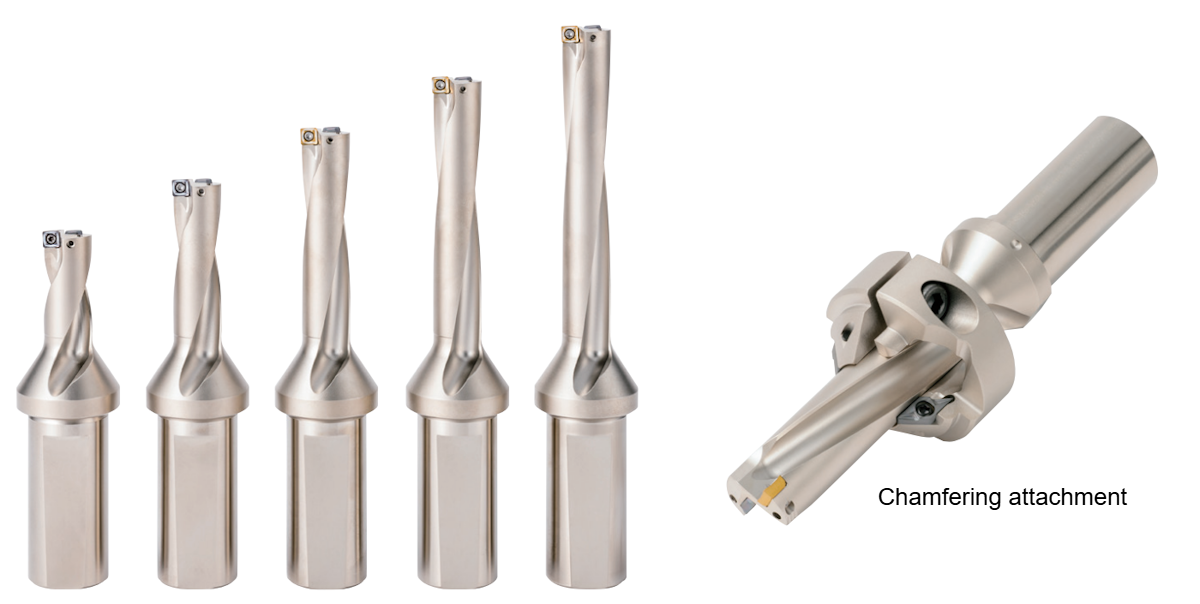

A wide range of products

Lineup includes φ12 to φ60, 2D/3D/4D/5D/6D, and supports a wide range of machining. Chamfering attachments are also availble

Case Study

Housing SCM420

Because of low workpiece rigidity, chatter, and chip recutting, competitor's can be used at a Vc = 60 m/min. However, the DRV enables stable machining even at a Vc = 125 m/min, with chips also being finely broken.
(Customer evaluation)

Valve body SS400

While competitor products experienced chatter and even greater vibration in sections with tight dimensional tolerances, the DRV did not experience chatter and also reduced vibration even with an increased cutting speed. Achieved1.5 times Machining efficiency.
(Customer evaluation)

Lineup

φ12 ~ φ60
2D/3D/4D/5D/6D

Brochure

DRV3.0 MB

Description Search (EASY TOOL GUIDE)

DRV

View other drills

Solid carbide drill (Custom tool)

XBDR

Contact our sales department for details.

High-efficiency coated solid carbide drill

KDA

Drilling

φ3 ~ φ16
3D / 5D

High-precision small-diameter solid drill

KDA Mini

Drilling

φ1 ~ φ2.9
3D / 5D / 8D

High-performance new flat drill

KDZ

Drilling
Counterboring

φ1 ~ φ20

View more drills
