Grooving and Cut off tools

KGD Series

  • External Grooving
  • Internal grooving
  • Face grooving
  • Cut off
  • Width: 1.3 ~ 8 mm
General info.
New chipbreaker for aluminum!

Features

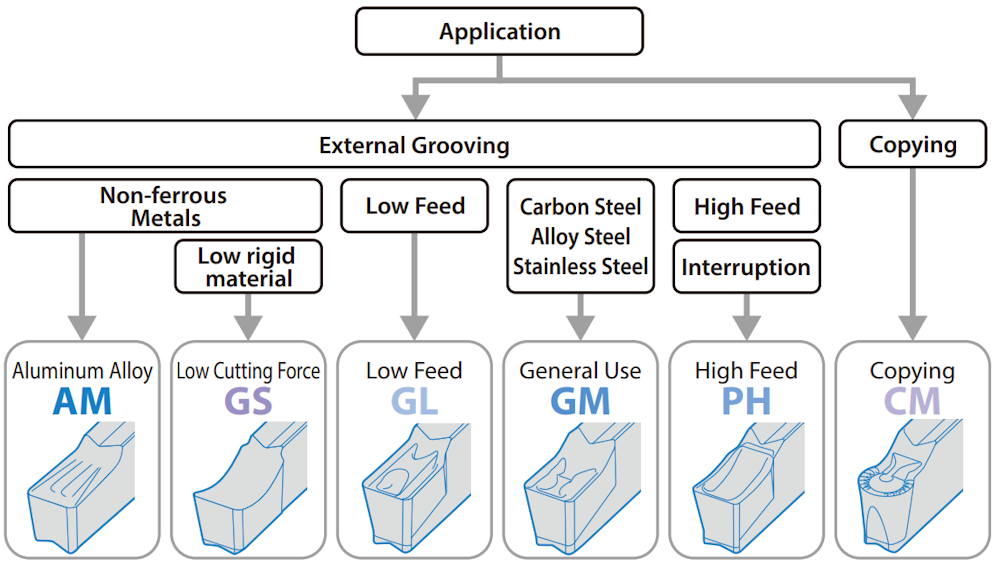

Chipreaker lineup for a wide variety of application


A wide variety of toolholder lineup

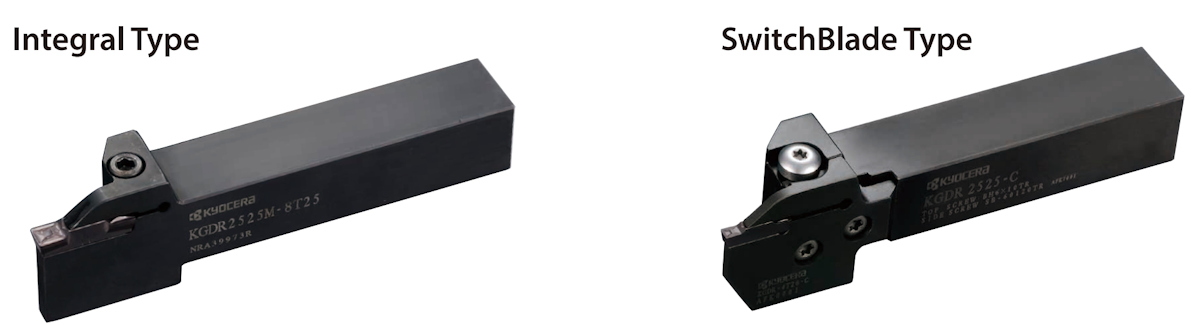

Integral type and Switch Blade type (body + blade) are available
JCT holders compatible with high-pressure coolant are also available.


Case Study

Gear SCr420H

Achieved a six-fold increase in tool life for external grooving. Chip evacuation was also good with no signs of burning (based on customer evaluation).

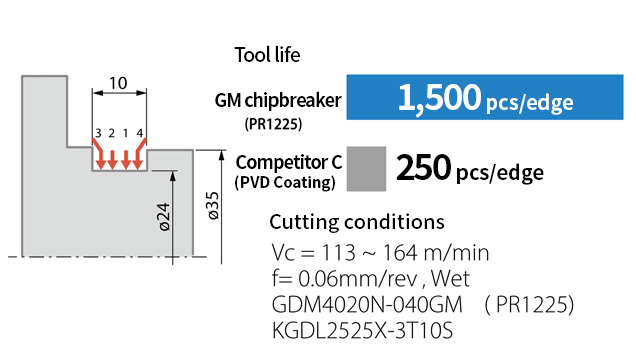

Ball stud SCM435

KGD has excellent chip evacuation properties, which has improved chip entanglement and jamming. Achieved doble the tool life by eliminating cutting edge damage from chips.

Lineup

External Grooving, Cut off KGD
Internal Grooving KGDI
Face Grooving KGDF
