Internal grooving

SIGE

Internal grooving

Width: 1 ~ 5 mm
φ8 ~

Brochure 2.1 MB

Features
Lineup
Brochure

General info.

Features

Introducing the new PR20 sereis. Unique coating ensures long tool life.

Introducing the new coating "MEGACOCAT NANO EX" for grooving. Utilizes proprietary technology to nano-laminate a high-content aluminum (Al) layer, achieving superior wear resistance. Its stable high-temperature hardness makes it resistant to plastic deformation and solves the challenges of grooving.

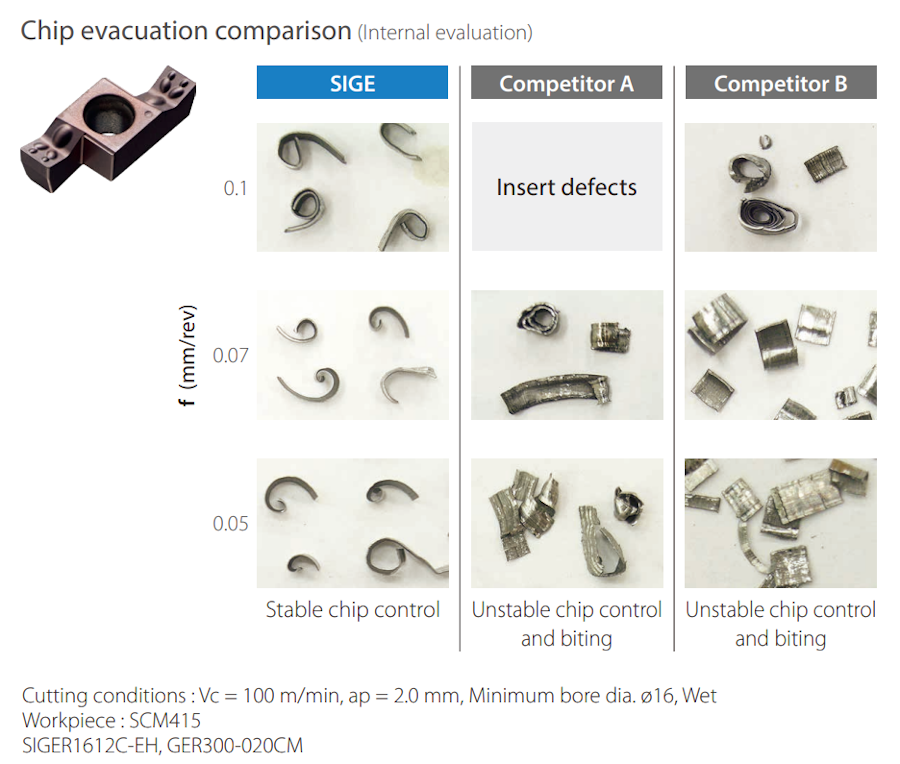

Excellent chip control performance

The screw clamp system ensures a large chip pocket for excellent chip evacuation. The insert also comes with a lineup of molded chipbreakers, ensuring stable chip control.

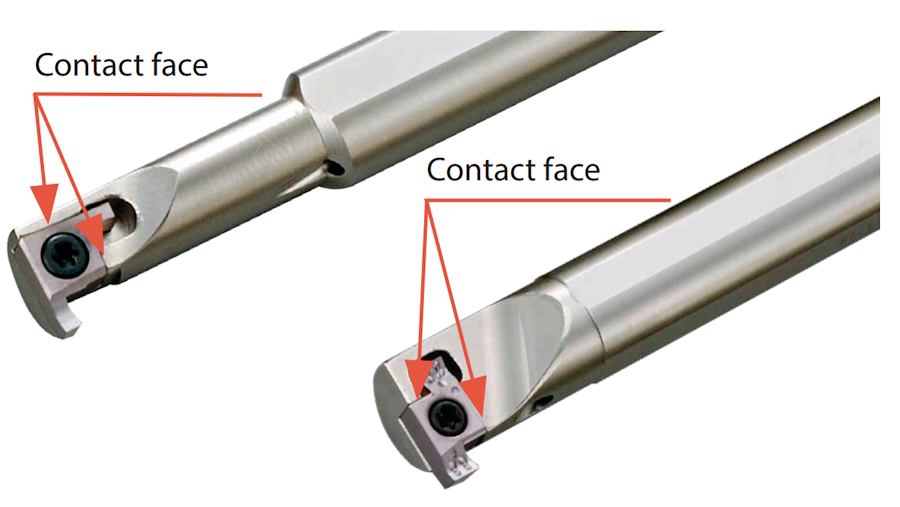

Strong clamp suppresses chatter

Lineup

Width: 1 ~ 5 mm
Maximum depth: up to 6.5 mm

Brochure

SIGE2.1 MB

Description Search (EASY TOOL GUIDE)

SIGE

View more Grooving, Cut off and Threading tools

External and internal shallow grooving tools

GBA

External Grooving
Internal grooving

Width: 0.33 ~ 4.8 mm

Grooving and Cut off tools

KGD Series

External Grooving
Internal grooving
Face grooving
Cut off

Width: 1.3 ~ 8 mm

High-performance cut off tools

KPK Series

Cut off

Width: 1.6 ~ 5 mm

Cut off tools for Swiss machine

KGZ

External Grooving
Cut off

Width: 1.3 ~ 3 mm
