High-performance cut off tools

KPK Series

  • Cut off
  • Width: 1.6 ~ 5 mm
General info.
Machining video

Features

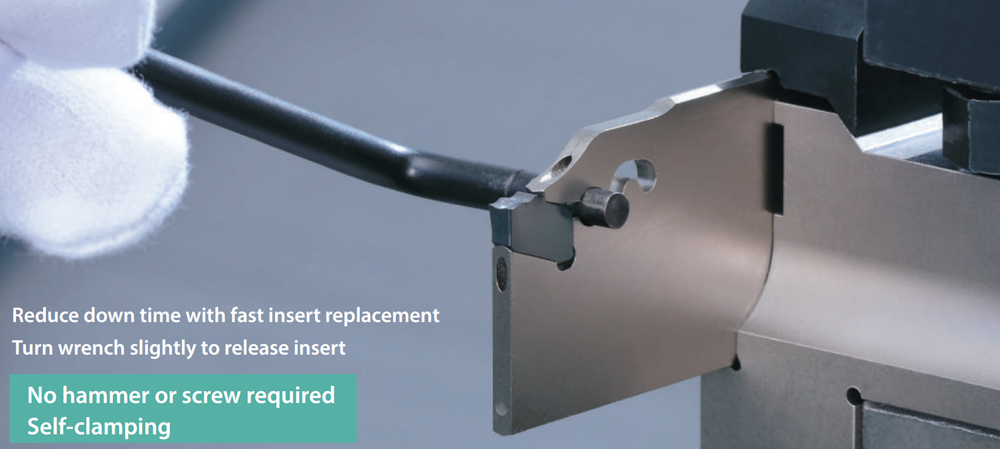

Stress-free insert replacement

Self-clamping, no hammer or screws required
Simply rotate the dedicated wrench with minimal force to easily replace inserts.


Stable machining with strong clamping

Three unique contact faces securely clamp the insert. Suppresses chatter

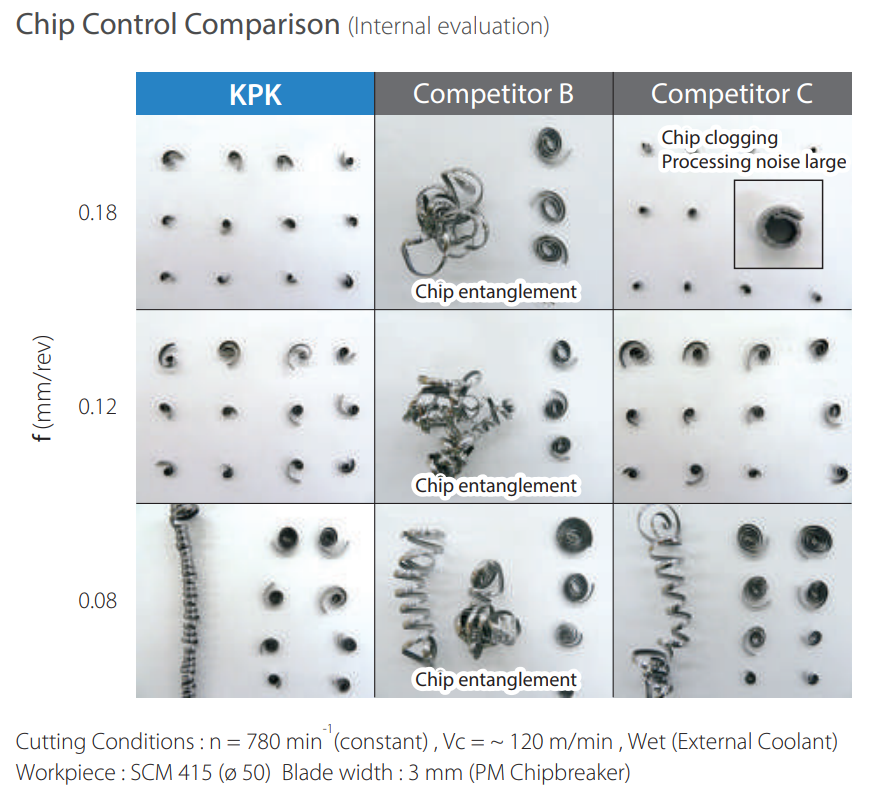

Unique chipbreaker for excellent chip control

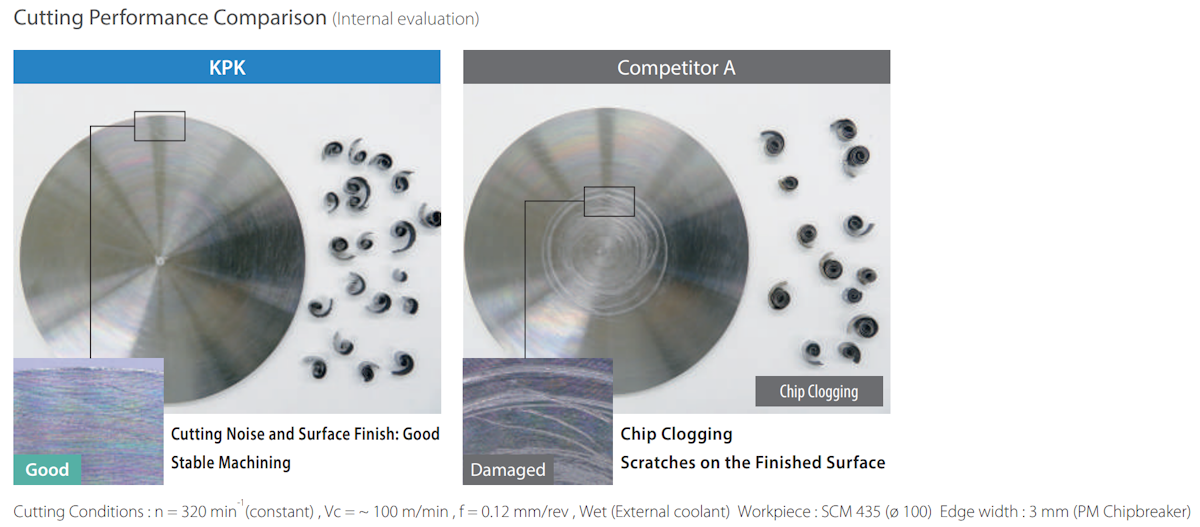

Case Study

Ring Forged parts

KPK doubles the machining efficiency. Maintains good chip evacuation and surface finish quality even with higher feed rates. Easier insert mounting for improved operability. (Customer evaluation).

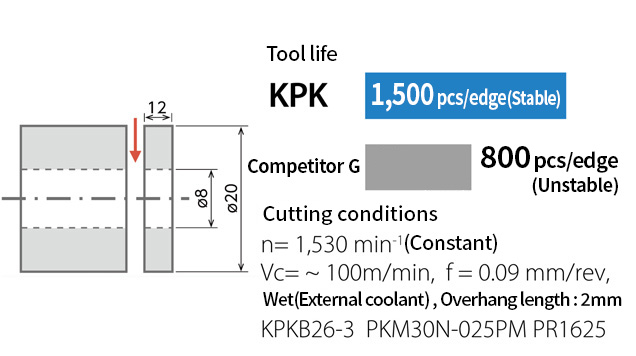

Machine parts SNCM20

While products from other companies experienced unexpected failures and were unstable, KPK provided stable machining with superior edge condition (Customer evaluation).

Lineup

Edge Width: 1.6 ~ 5 mm
Cutting diameter: 32 ~ 120 mm
In addition to blade types, shank types are also available

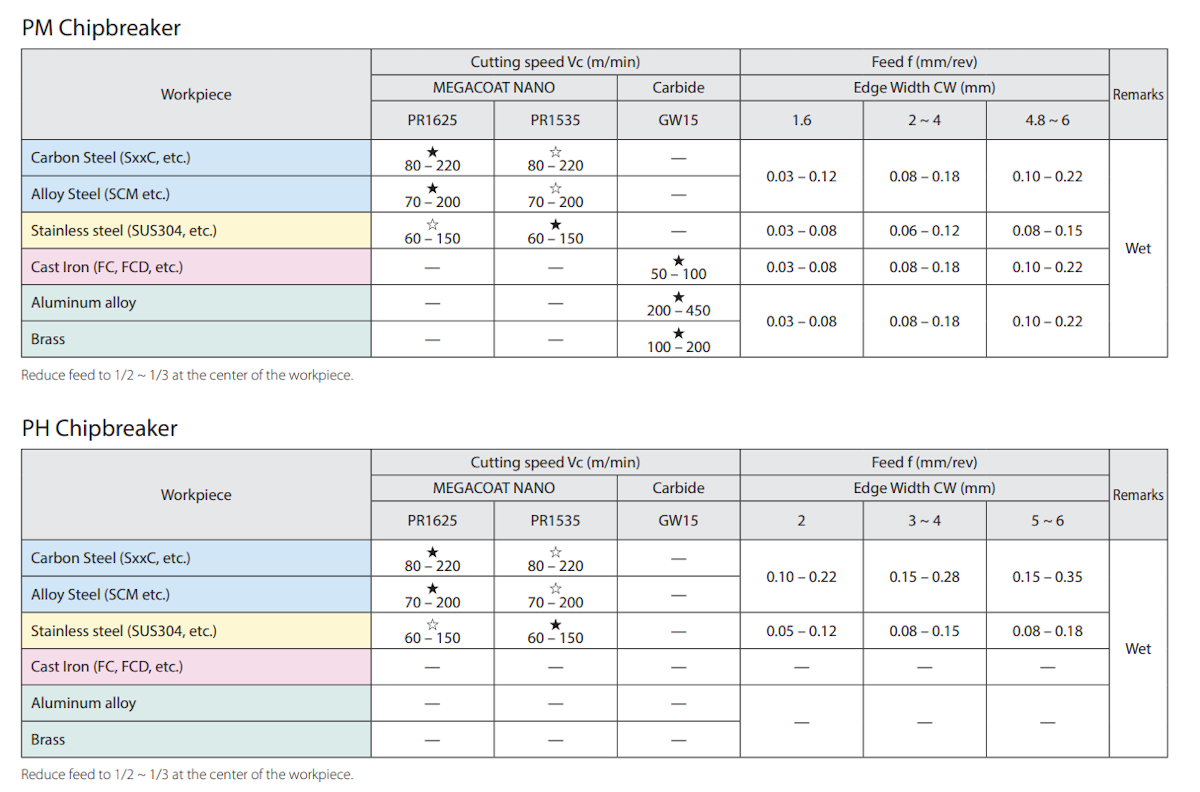

Recommended cutting conditions


Brochure

Description Search (EASY TOOL GUIDE)
