Double-sided 4-corner high-efficiency 90° cutter

MEW

Facing
Shouldering
Slotting (milling)

φ16 ~ φ80

Features
Case Study
Lineup

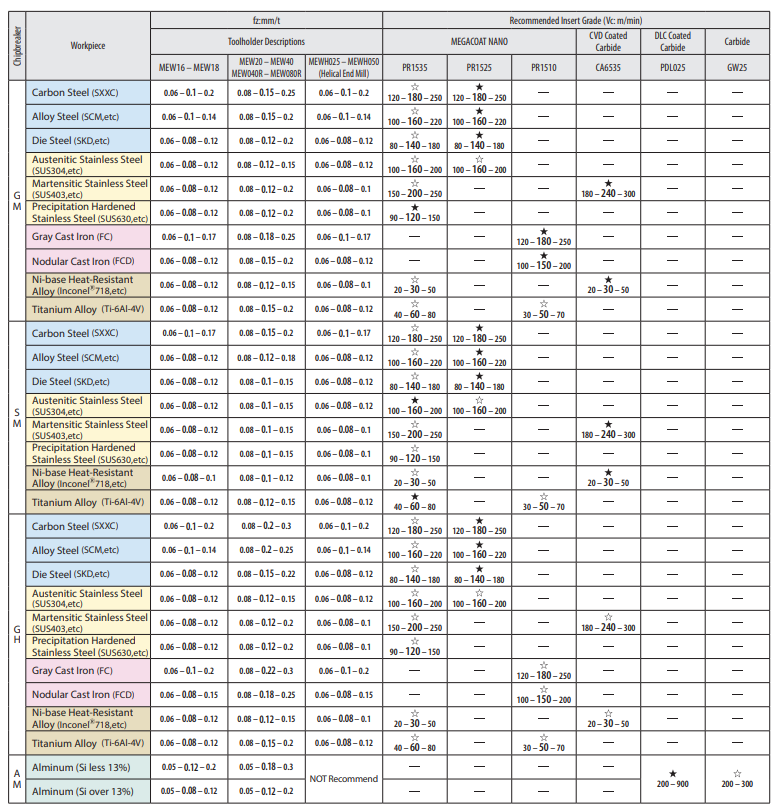

Recommended Cutting Conditions
Brochure

Features

Achieving low cutting force, even with a negative insert, comparable to a positive insert.

Achieves a maximum A.R. of +10°. Kyocera's unique molding technology reduces cutting force. Cost-effective with a double-sided, 4-corner design.

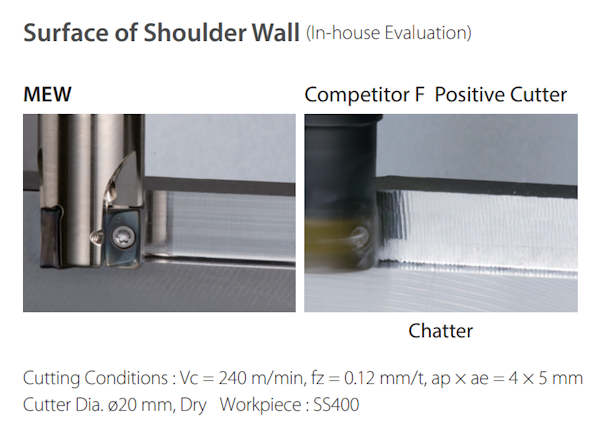

High chatter resistance enables an excellent surface finish.

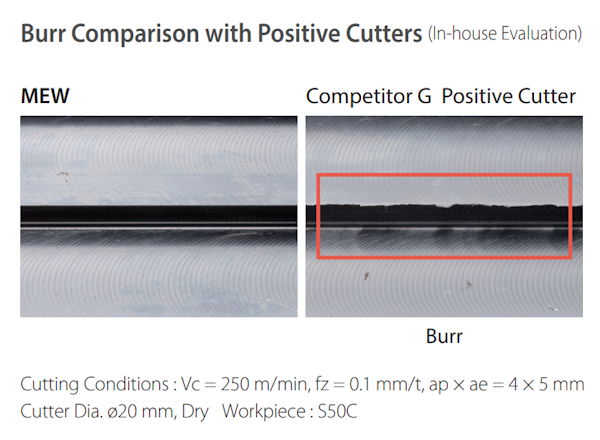

High chatter resistance and burr suppression due to the optimal design of the helical cutting edge and A.R.

New PR18 series. Achieving significantly longer tool life

The newly developed proprietary coating MEGACOAT NANO EX achieves long tool life. "Double lamination technology" that laminates two types of special nano-layers in multiple layers further improves toughness, achieving both high levels of wear resistance and fracture resistance.

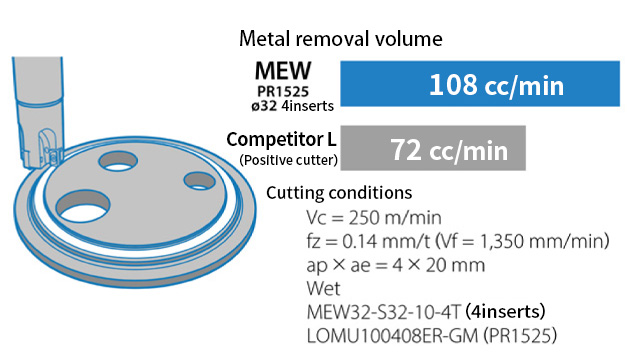

Case Study

Construction machinery parts SS400

MEW allows stable machining without chatter even with increased feed rate, achieving 1.5 times machining efficiency. Burrs are suppressed, resulting in a good finishing surface.
(Customer evaluation)

Lineup

φ16 ~ φ80

Brochure

MEW9.5 MB

MEW PR18 cutting conditionsKB

Description Search (EASY TOOL GUIDE)

MEW

View other milling tools (indexable)
