Threading insert with molded chipbreaker

TQ breaker

Threading

Brochure 4.7 MB

Features
Case Study
Lineup

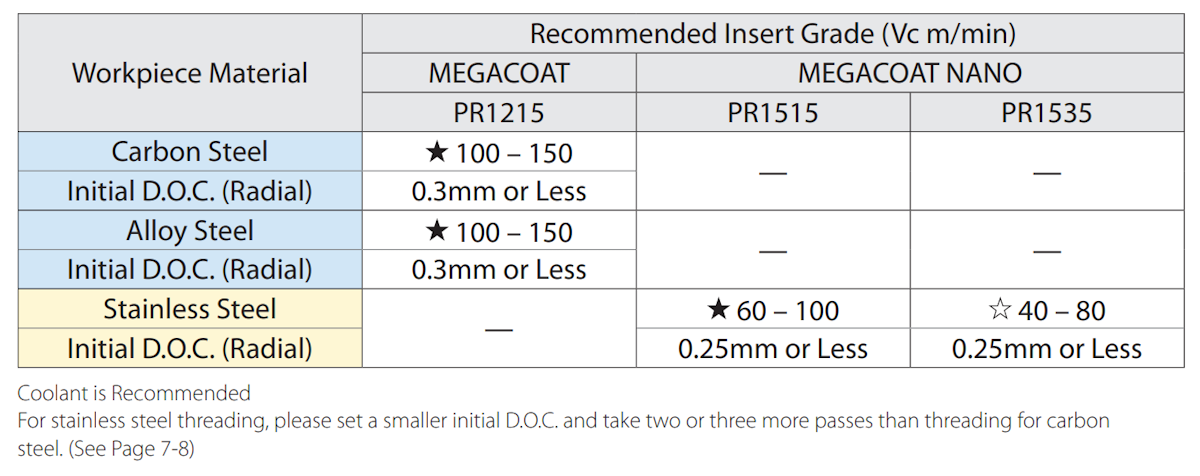

Recommended Cutting Conditions
Brochure

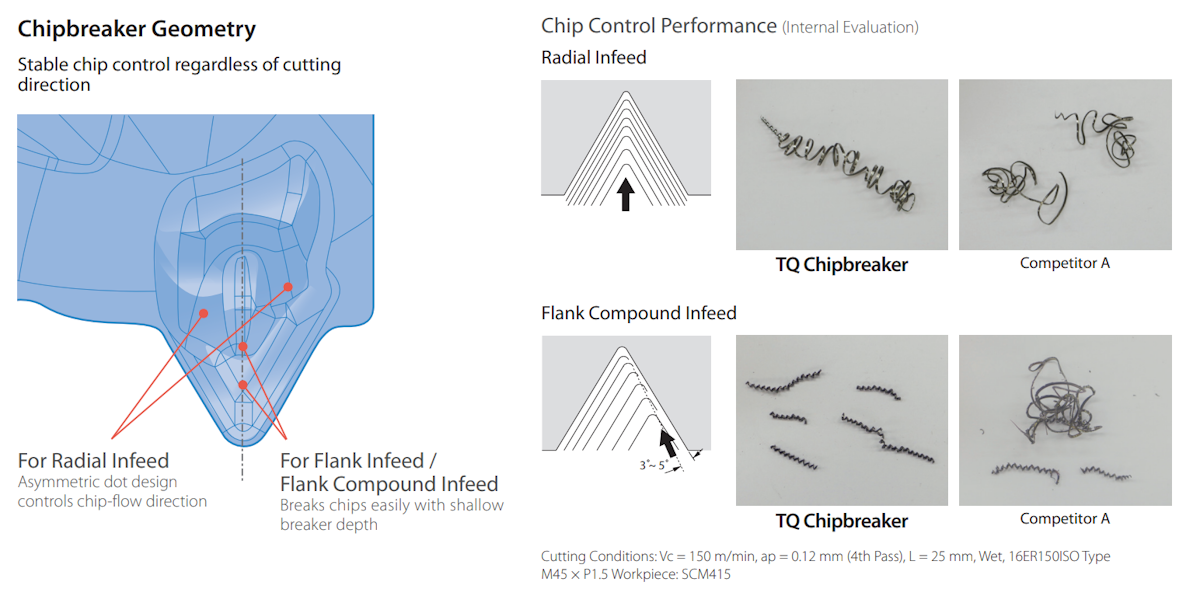

Features

Stable chip evacuation with the effect of a molded chipbreaker.

Asymmetrical chipbreaker geometry controls chip direction regardless of threading method.

Low Cutting Force desigin suppresses chattering

Case Study

Handle: STK material

Achieved a 1.5x longer tool life with the TQ chipbreaker (PR1225). Chip evacuation was also good.

Lineup

Insert grades for steel and stainless steel are available

Brochure

TQ Chipbreaker4.7 MB

TF Chipbreaker8.8 MB

View more Grooving, Cut off and Threading tools

External and internal shallow grooving tools

GBA

External Grooving
Internal grooving

Width: 0.33 ~ 4.8 mm

Internal grooving

SIGE

Internal grooving

Width: 1 ~ 5 mm
φ8 ~

Grooving and Cut off tools

KGD Series

External Grooving
Internal grooving
Face grooving
Cut off

Width: 1.3 ~ 8 mm

High-performance cut off tools

KPK Series

Cut off

Width: 1.6 ~ 5 mm

View more Grooving, Cut off and Threading tools
