CA410K/CA415K

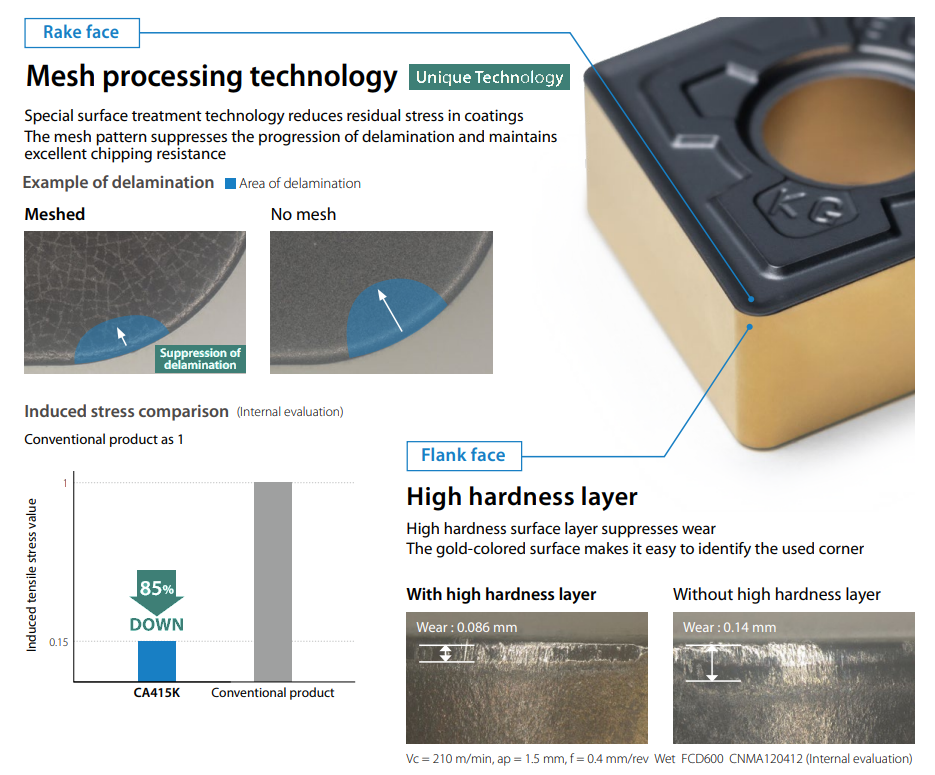

Black & Gold: Optimized coating properties on Rake face and Flank face

The "Black & Gold" coating optimizes the coating properties on Rake face and Flank face of the insert, achieving long tool life and stable machining. Rake face uses a special mesh processing technology to prevent film peeling and achieve excellent chipping resistance. Flank face has a high-hardness coating to reduce friction wear. The gold surface makes it easy to identify the used corners.

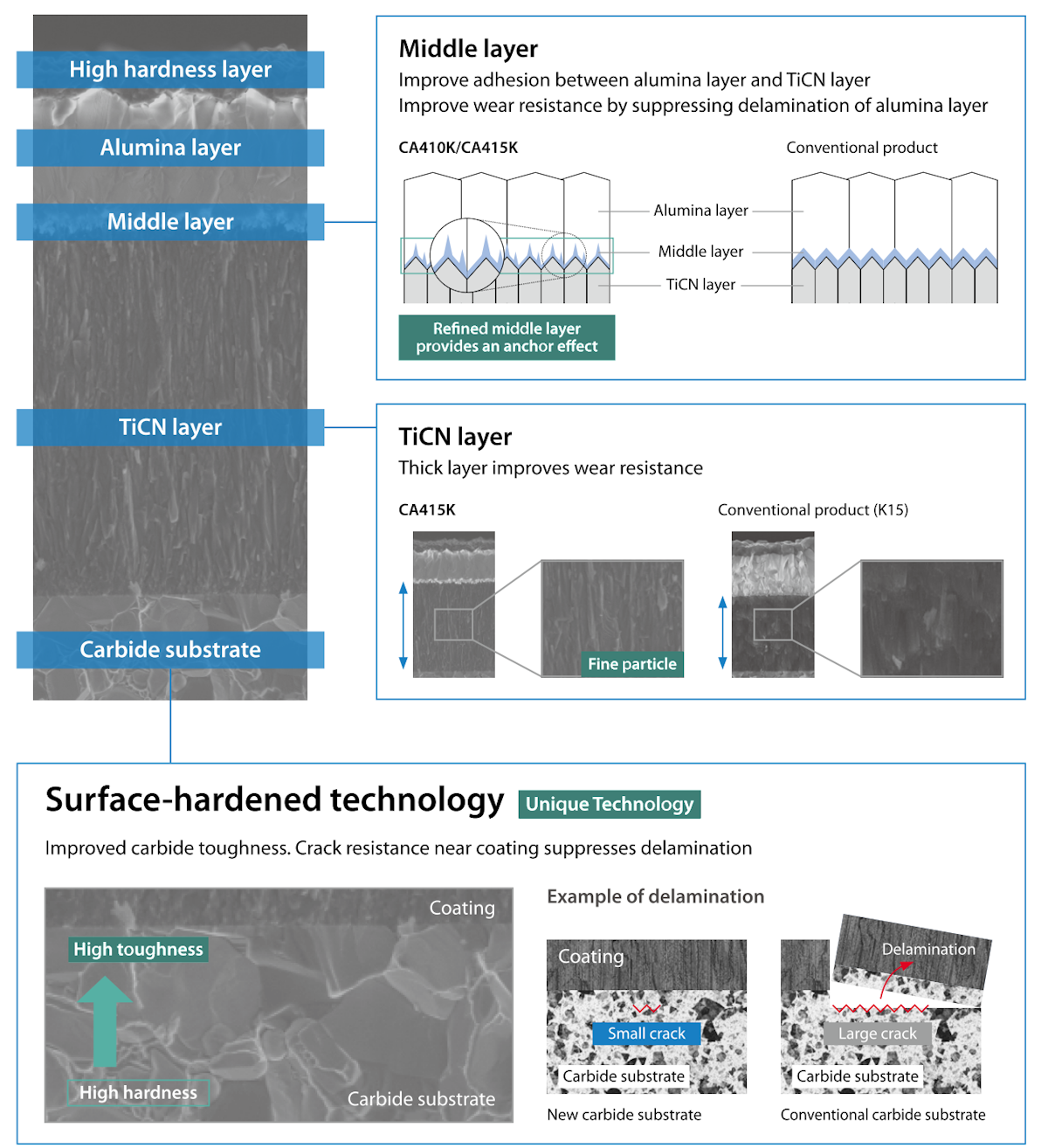

Thick film + Strong adhesion suppresses wear and film peeling, achieving stable machining

The CA410K/CA415K utilizes a newly developed coating and carbide substrate that pursues the performance required for cast iron machining. The thick, highly adhesive coating improves wear resistance and peeling resistance. carbide substrate has toughness, is resistant to crack propagation, and suppresses coating peeling.

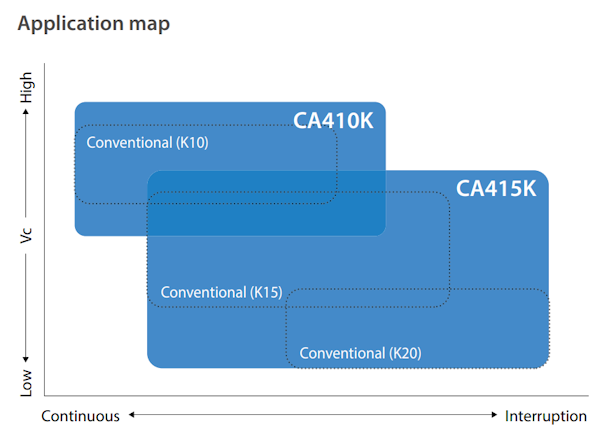

CA410K: Primary recommendation for continuous machining
CA415K: Primary recommendation for Interrupted machining
A lineup of chipbreakers for a wide range of applications.

CA410K: Primary recommendation for continuous machining CA415K: Primary recommendation for Interrupted machining
