CVD Cermet for finishing

CCX

External Turning
Internal turning

Features
Case Study

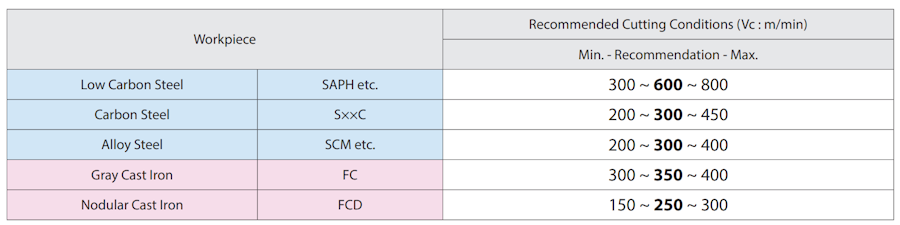

Recommended Cutting Conditions
Brochure

General info.

Features

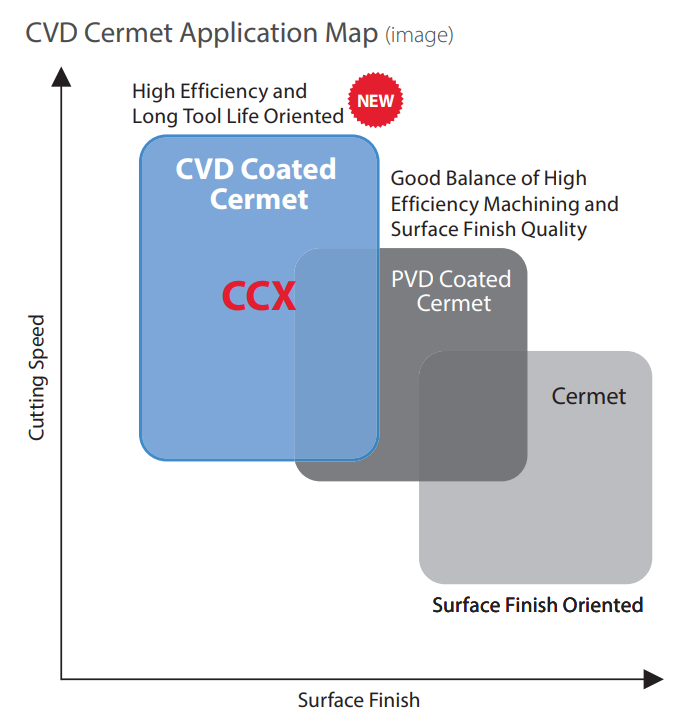

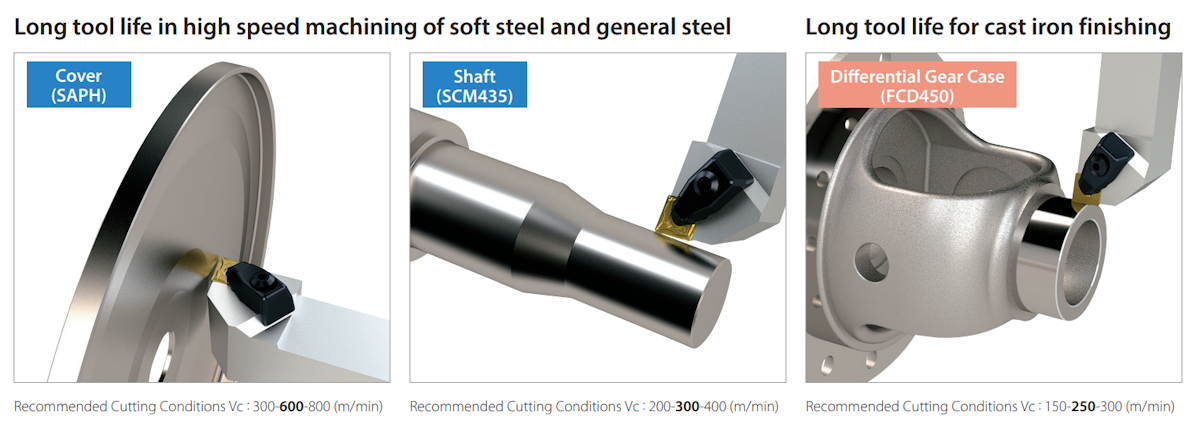

Higher speed finishing improves productivity

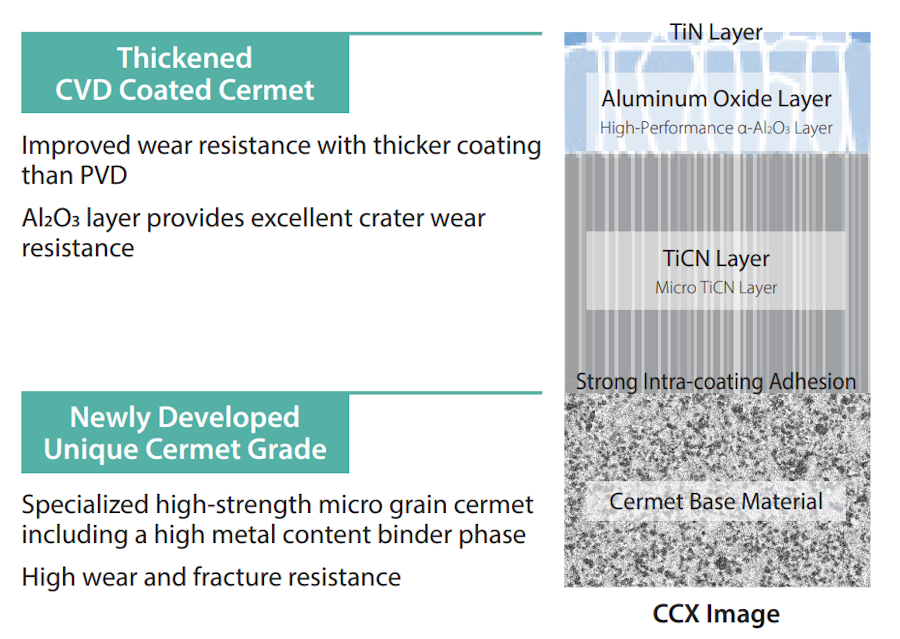

Special cermet substrate x thick CVD coating provides excellent wear resistance. Supports finishing at higher speeds than conventional products.
Excellent performance in continuous to light interrupted finishing.

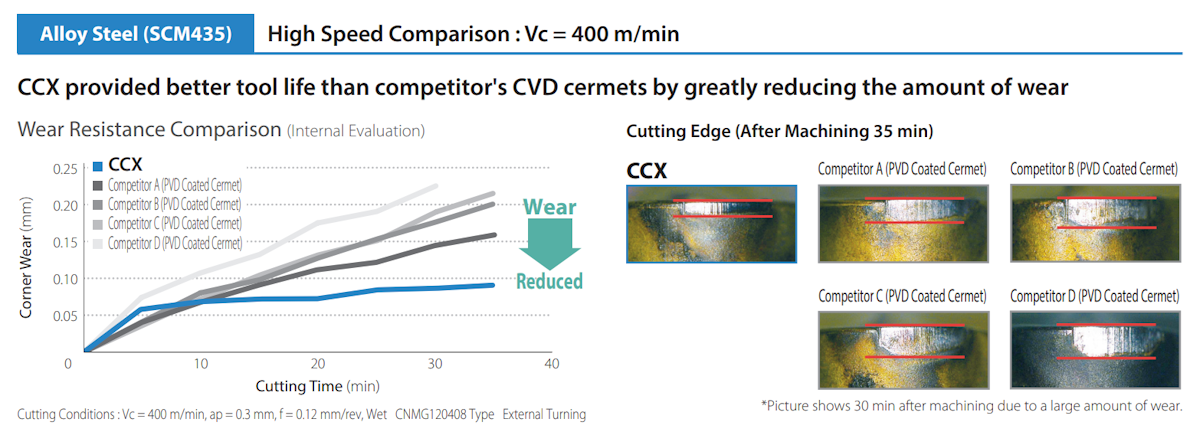

Superior wear resistance compared to PVD cermet

Case Study

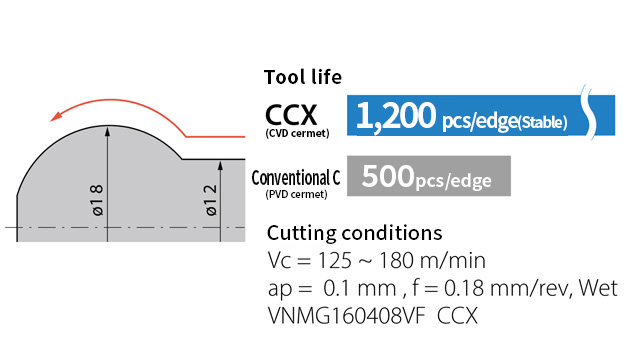

Pin S48C etc.

Achieves 2.4 times longer tool life than conventional PVD cermet. Stable tool life (Customer evaluation).

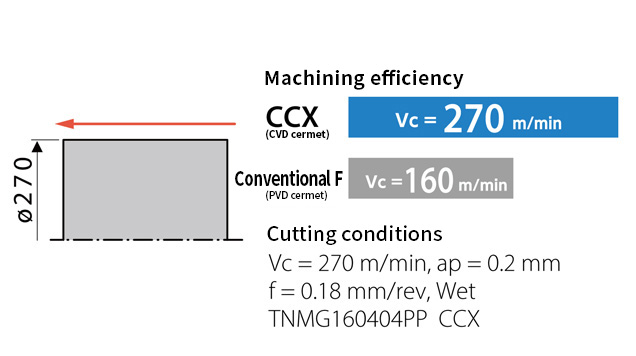

Cylinder S35C

Achieves high-speed machining at Vc = 270 m/min, achieving 1.6 times Machining efficiency of competitors' PVD cermet. Tool life has also been significantly improved (Customer evaluation).

Brochure

CCX1.6 MB

Description Search (EASY TOOL GUIDE)

CCX

Check other insert grades

CVD Coated Carbide for Steel Machining

CA115P/CA125P

External Turning
Internal turning

CA115P: Continuous to light interrupted machining
CA125P: Continuous to heavy interrupted machining

CVD coated carbide for cast iron machining

CA410K/CA415K

External Turning
Internal turning

CA410K: Primary Recommendation for continuous machining
CA415K: Primary Recommendation for Interrupted machining

PVD Coating for small tools

PR1725/PR1705

External Turning
Internal turning

Hybrid Cermet for steel machining

PV720/PV730

External Turning
Internal turning

PVD: PV710 / PV720 / PV730
Uncoated: TN610 / TN620

View Other Insert Grades
