Hybrid Cermet for steel machining

PV720/PV730

External Turning
Internal turning

PVD: PV710 / PV720 / PV730
Uncoated: TN610 / TN620

Brochure 2.9 MB

Features
Case Study
Lineup

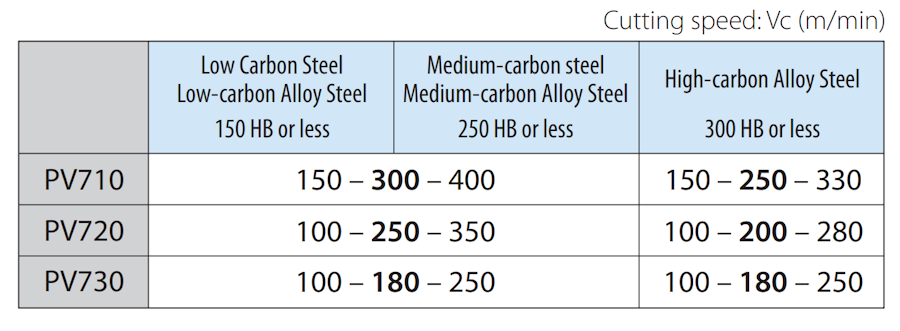

Recommended Cutting Conditions
Brochure

General info.

Features

Achieves high-quality surface finish. Special reinforcement technology (hybrid technology)

Covers a wide range of applications with three grades.

PV720: Primary recommendation, excellent wear resistance
PV730: Stability oriented tough cermet
PV710: For high-speed machining

Case Study

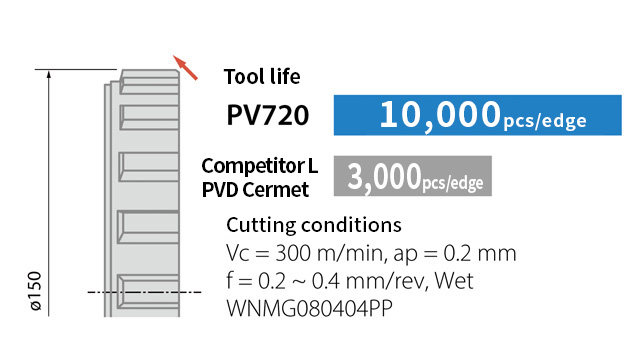

Ring gear: Special alloy

PV720 achieved approximately 3.3 times longer tool life compared to competitor's PVD cermet L (Customer evaluation).

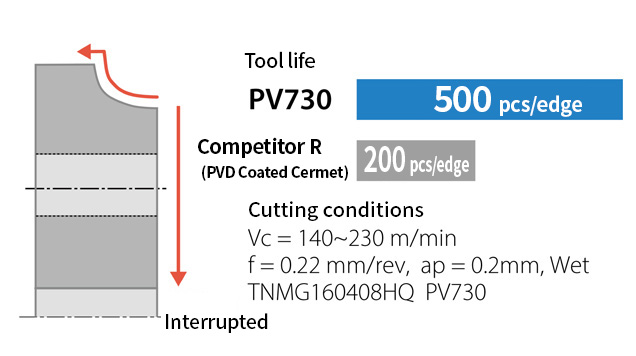

Flange S55C

PV730 achieved approximately 2.5 times longer tool life compared to competitor's PVD cermet R with excellent surface finishing (Customer evaluation).

Lineup

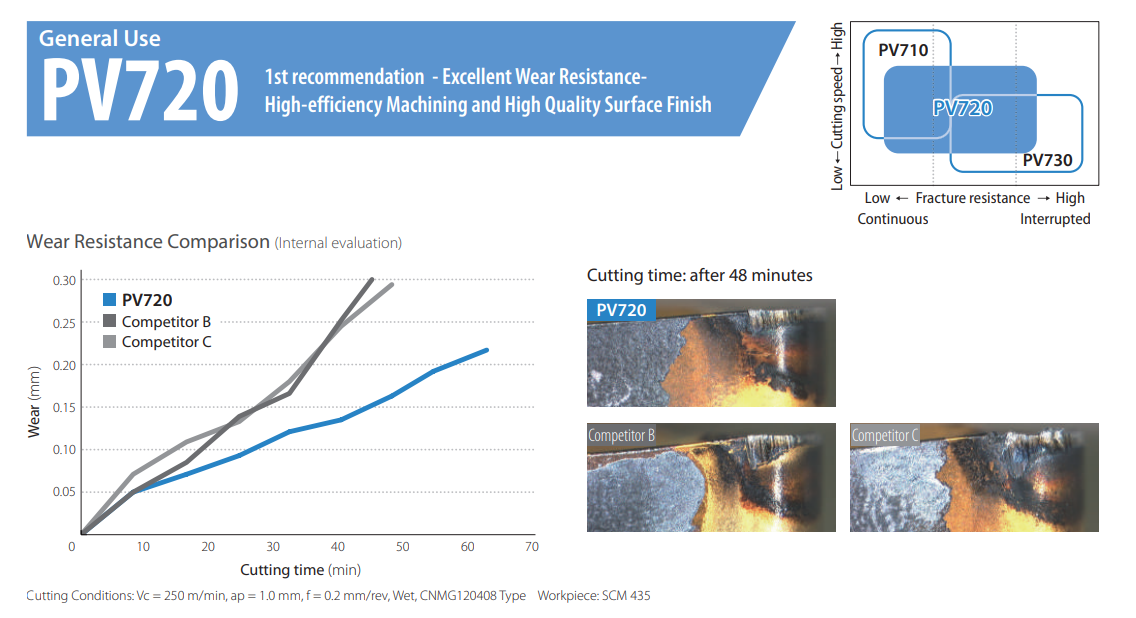

PV720: FPrimary recommendation, excellent wear resistance
PV730: Stability oriented tough cermet
PV710: For high speed machining
Non-coated type TN620/TN610 also Lineup

Brochure

PV720/PV7302.9 MB

Description Search (EASY TOOL GUIDE)

PV720

PV730

Check other insert grades

CVD Coated Carbide for Steel Machining

CA115P/CA125P

External Turning
Internal turning

CA115P: Continuous to light interrupted machining
CA125P: Continuous to heavy interrupted machining

CVD coated carbide for cast iron machining

CA410K/CA415K

External Turning
Internal turning

CA410K: Primary Recommendation for continuous machining
CA415K: Primary Recommendation for Interrupted machining

PVD Coating for small tools

PR1725/PR1705

External Turning
Internal turning

CVD Cermet for finishing

CCX

External Turning
Internal turning

View Other Insert Grades

Back to Product Top
